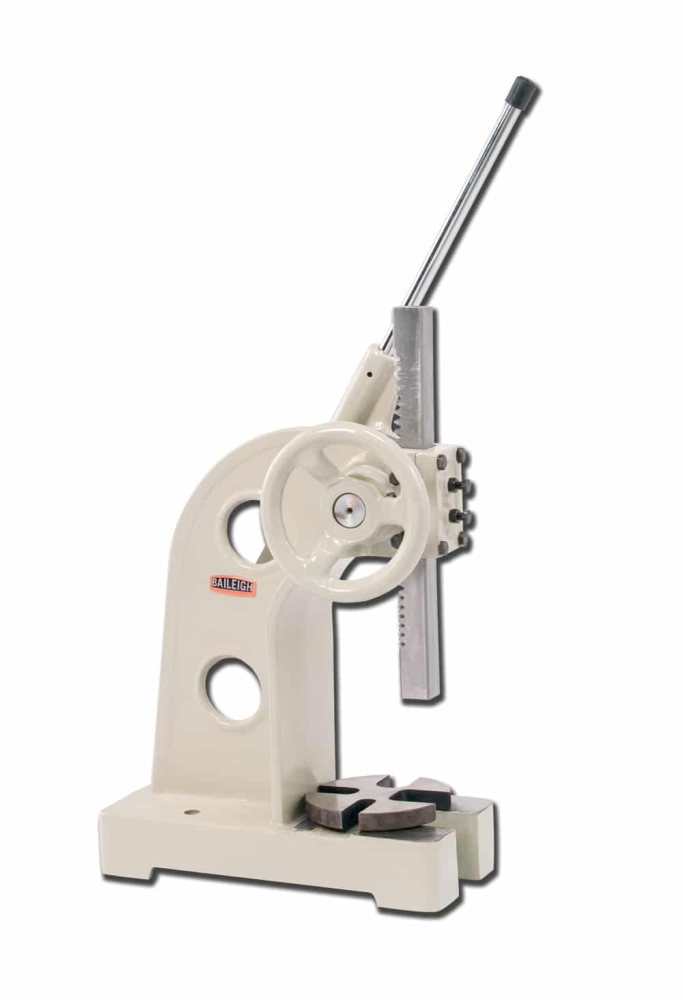

Baileigh AP-3R Arbor Press

Stock Code: AP-3R
MPN: AP-3R

Descriptions

The AP-3R is a 3 ton arbor press with a heavy-duty cast iron frame.

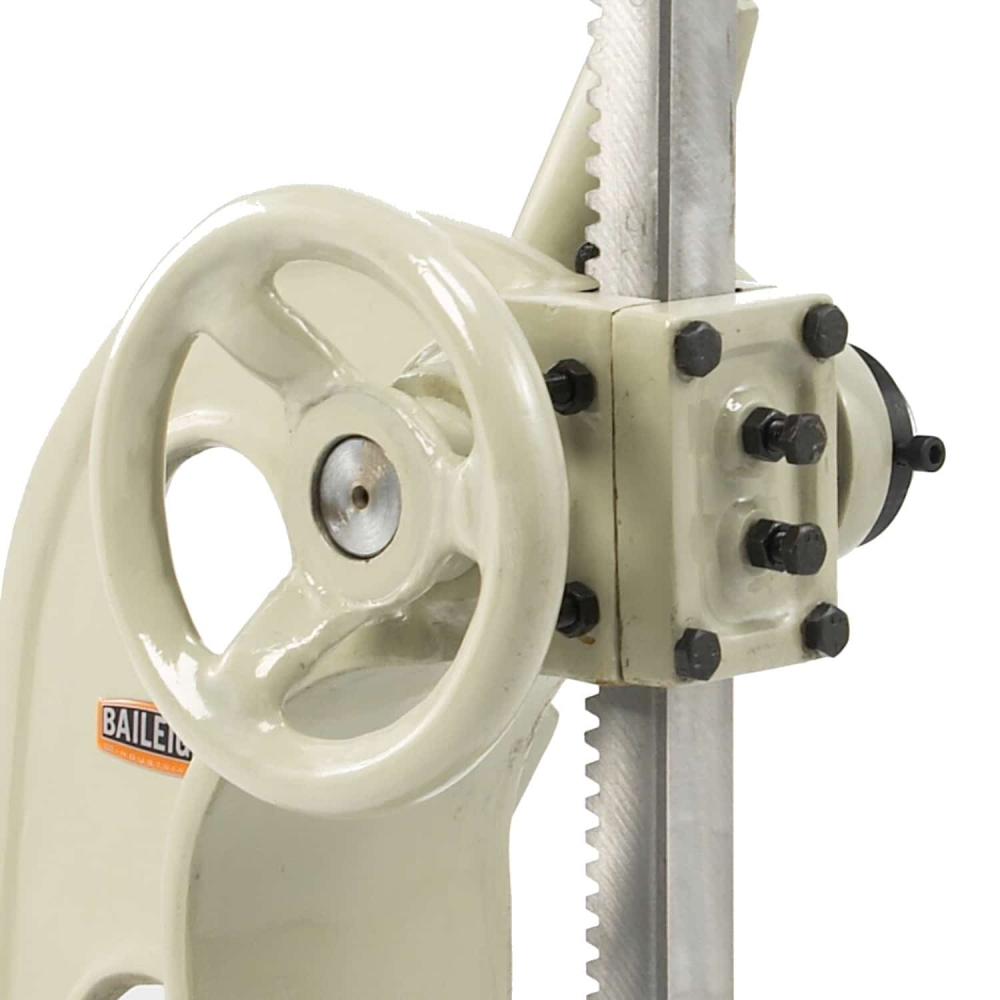

This sheet metal forming arbor press machine is a ratchet leverage machine that allows the operator to get the most leverage out of each pull of the handle using a ratchet actuator.

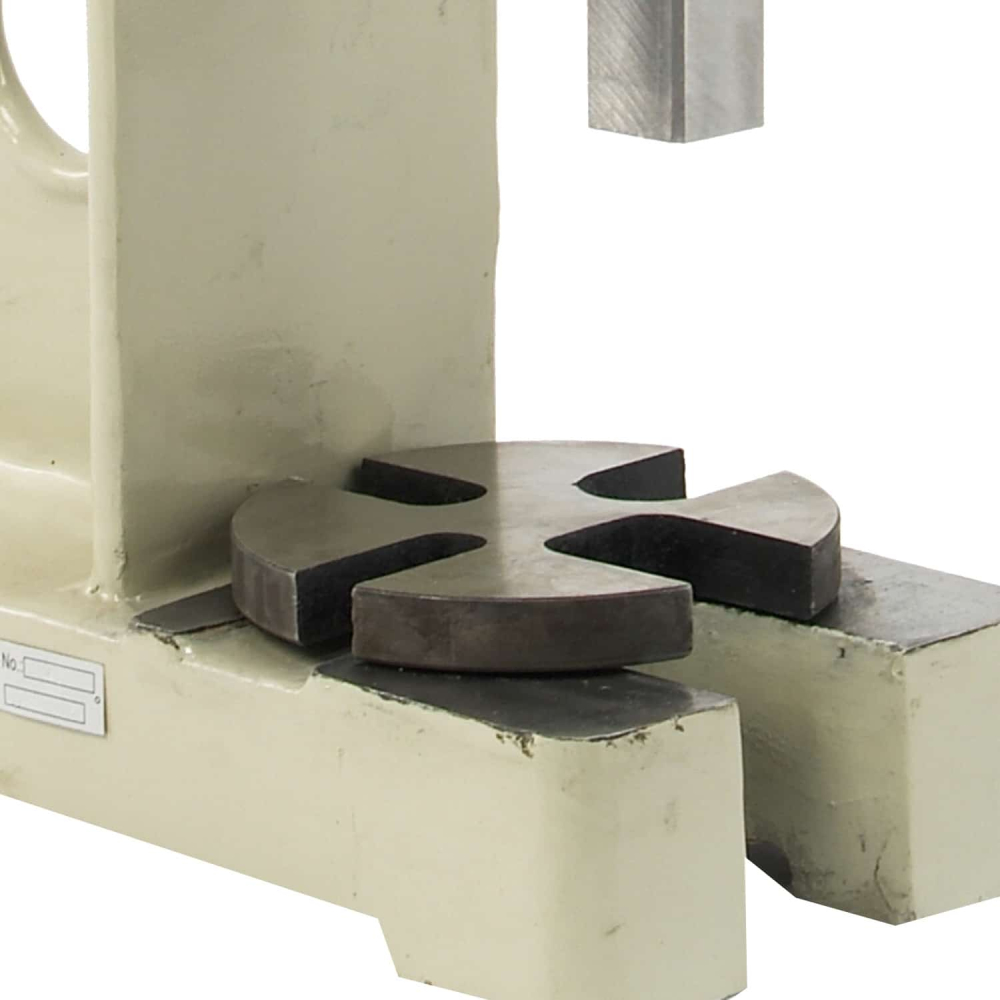

There is a machined 4 position bottom plate that is perfectly perpendicular to the ram that has the proper opening for most broaches to push through.

This arbor press has a solid, case hardened ram for perfect presses every time and offers years of profitable use at full capacity. All Baileigh arbor presses can be bench or pedestal mounted. The AP-3R arbor press has a 5 inch throat opening and can handle material up to 11 inches tall.

Manually operated
2.7 metric tons of pressure

Specifications

Item Number AP-3R
Ram Size 38 mm
Throat Depth 127 mm
Maximum Material Height 279 mm
Capacity 2.7 ton
Power Manual
Shipping Weight 60 kgs.
Ram Travel Per Revolution 152.4mm
Shipping Dimensions (Inches) 457 x 229 x 635 mm
