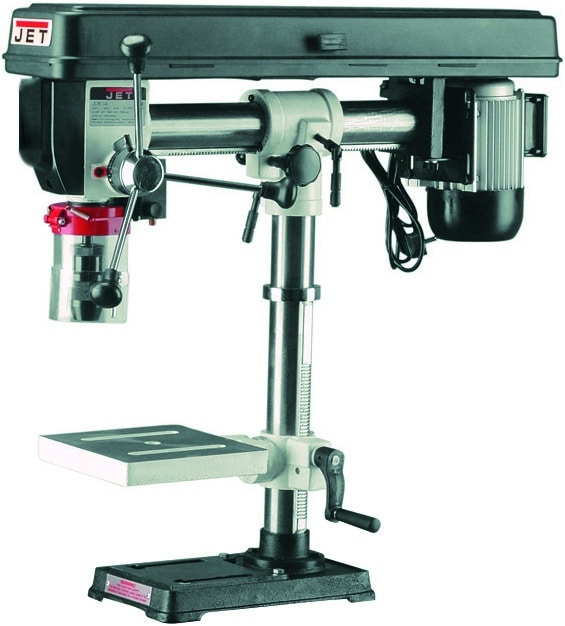

JET JDR_34-M Radial Drill Press

JET JDR_34-M Radial Drill Press

Stock Code: JDR_34-M
MPN: JDR_34-M
£419.13 (exc VAT) per 1
£502.95 (inc VAT)
Quantity: - +

1 – 16 mm quick-clamping drill chuck with chuck protector. 80 mm spindle stroke with adjustable end stops. Induction motor – suitable for continuous operation. Head can be rotated 45° to the right and 90° to the left. Laser hairline cross for ease of use.

  • Gooseneck: 155-410mm
  • Spindle down: 80mm
  • DIN taper adapter chuck: MK/CM2
  • Weight: 42kg

Specifications

  • Motor (V / kW) 230 / 0.6
  • Spindle speed range (rpm) 500 – 2’500
  • Number of spindle speeds 5
  • Max. drill diameter (mm) 16
  • Spindle travel (mm) 80
  • Spindle fixture MT2
  • Throat depth (mm) 155 – 410
  • Spindle distance to table (max.,mm) 700
  • Spindle distance to base (max., mm) 1’200
  • Table size (mm) 300
  • Miter t-slot (mm) 14
  • Head tilt 0° – 90° left / 0° – 45° right
  • Dimensions (mm) 830 x 320 x 1’660
  • Weight (kg) 61
MPNJDR_34-M
BRANDJET
WEIGHT61kgs
ConditionNew
