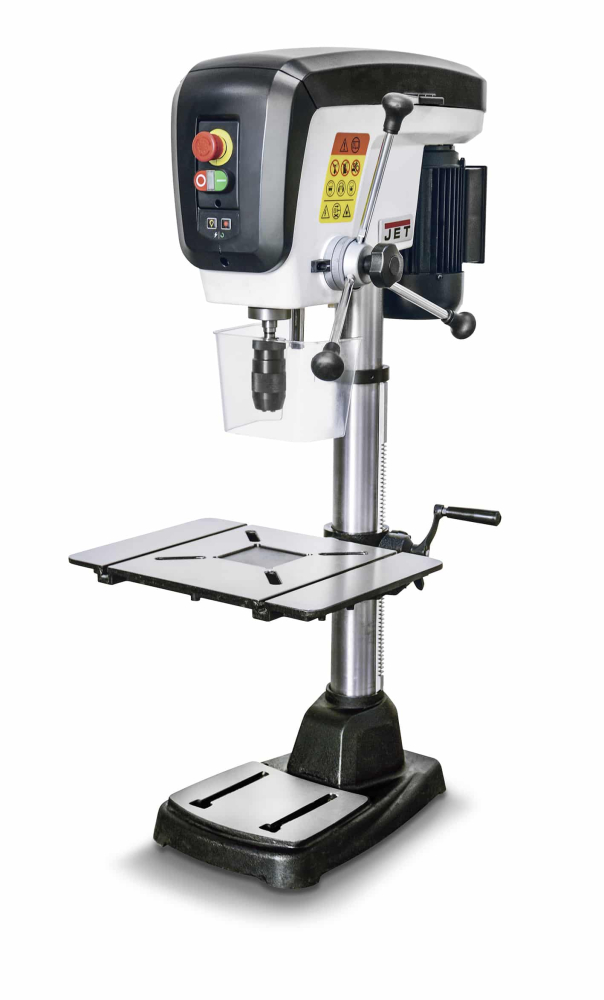

JET JDP_15B-T Drill Press

JET JDP_15B-T Drill Press

Stock Code: JDP_15B-T
MPN: JDP_15B-T
£826.88 (exc VAT) per 1
£992.25 (inc VAT)
Quantity: - +

Heavy-duty drill press developed specifically for wood workshops
Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
Flat table edge designed for using clamps
Replaceable MDF table insert
Integrated drill depth stop for precision batch tasks
Efficient 1.0kW induction motor and quiet poly-v belt drive
One-handed belt tensioning for fast speed changes
Xacta-X laser system easily identifies the drill center
Integrated long-life LED working lamp prevents shadows
Large cast iron base for high stability
Electric drill chuck protector, belt guard protection and emergency stop as standard

  • Number of spindle speeds 16
  • Spindle fixture MT2
  • Spindle travel 80mm
  • Distance spindle to column 190mm

Specifications

  • Motor (V/kW) 400/1.0
  • Spindle speed range (rpm) 180 – 2’900
  • Number of spindle speeds 16
  • Spindle fixture MT2
  • Spindle travel (mm) 80
  • Distance spindle to column (mm) 190
  • Spindle distance to table (max., mm) 470
  • Spindle distance to base (max., mm) 680
  • Table size (mm) 320 x 454
  • Table tilt 90° left/90° right
  • Miter t-slot/distance (mm) 13/270
  • Column diameter (mm) 73
  • Dimensions (mm) 723 x 483 x 1’679
  • Weight (kg) 71
MPNJDP_15B
BRANDJET
WEIGHT71kgs
ConditionNew
