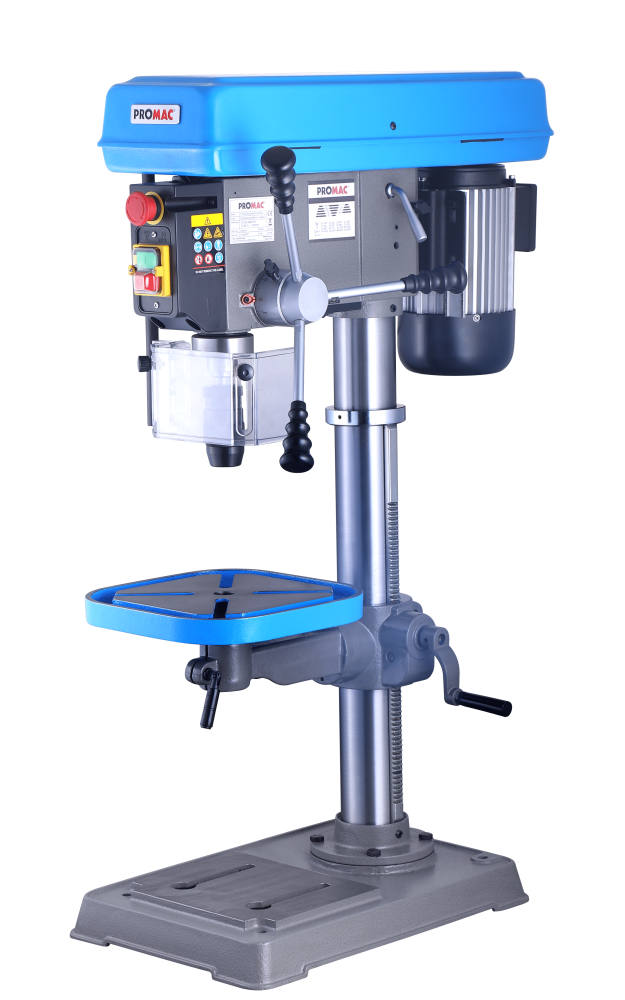

Promac JD-3285-T Drill Press

Promac JD-3285-T Drill Press

Stock Code: JD-3285-T
MPN: JD-3285-T
£826.00 (exc VAT) per 1
£991.20 (inc VAT)
Quantity: - +

This Promac Drill Press is a belt driven 16 speed machine which for a 32mm drilling capacity offer good value. Available in either 230v single or 400v three phase motors means it is a great addition to any size workshop.

  • 400v 0.75kW S1 3 phase motor
  • 32mm Drilling capacity in steel
  • Range of speeds 180 – 3000rpm
  • Number of speeds 16

Specifications

  • Drilling capacity(Iron/Steel) 32/32mm
  • Spindle to column 215mm
  • Spindle travel 85mm
  • Spindle taper MT-3/B16
  • Chuck size 16mm
  • Column diameter 80mm
  • Table size 290 x 290 mm
  • Overall height 1050 mm
  • Number of speeds 16
  • Range of speeds 180 – 3000 rpm
  • Net weight 61 kg
  • Mains 400V 3 phase 50Hz
  • Output power 0.75 kW (1 HP) S1
  • Reference current 2.4 A
  • Extension cord (H07RN-F): 5×1.5mm²
  • Installation fuse protection 10A
MPNJD-3285-T
BRANDPromac
WEIGHT61kgs
ConditionNew
