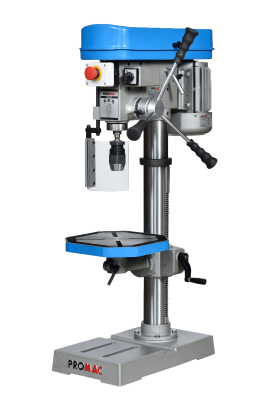

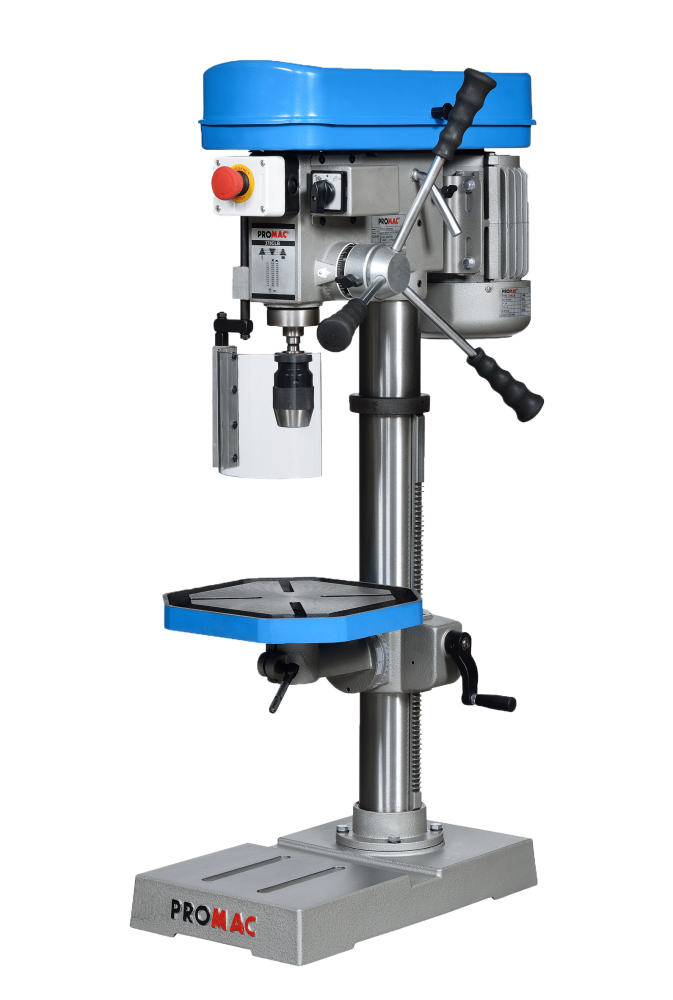

Promac 378CLB Benchtop Drill

Promac 378CLB Benchtop Drill

Stock Code: 378CLB
MPN: 378CLB
£1,232.88 (exc VAT) per 1
£1,479.45 (inc VAT)
Quantity: - +

2-speed motor. With 16-mm auto-clamping chuck, transparent guard and emergency stop button. Switch with start-interlock coil. Cover with interlock safety switch. Drill table with cross slots adjustable via rack. Externally mounted LED machine light.

  • 400v 3 phase 0,55kW motor
  • Drilling capacity in steel 16mm
  • Belt type 2 speed change
  • Speed range 145 – 1165 & 290 – 2,330rpm

Specifications

  • Motor (V/kW) 400/0.55
  • Morse taper MT2
  • Cutting capacity for steel (ø-mm) 16
  • Spindle stroke (mm) 85
  • Gear ranges 24
  • Speed range (min-1) 145–1’165/290–2’330
  • Table load (kg) 30
  • Slot width (mm) 12
  • Weight (kg) 71

MPN378CLB
BRANDPromac
WEIGHT71kgs
ConditionNew
