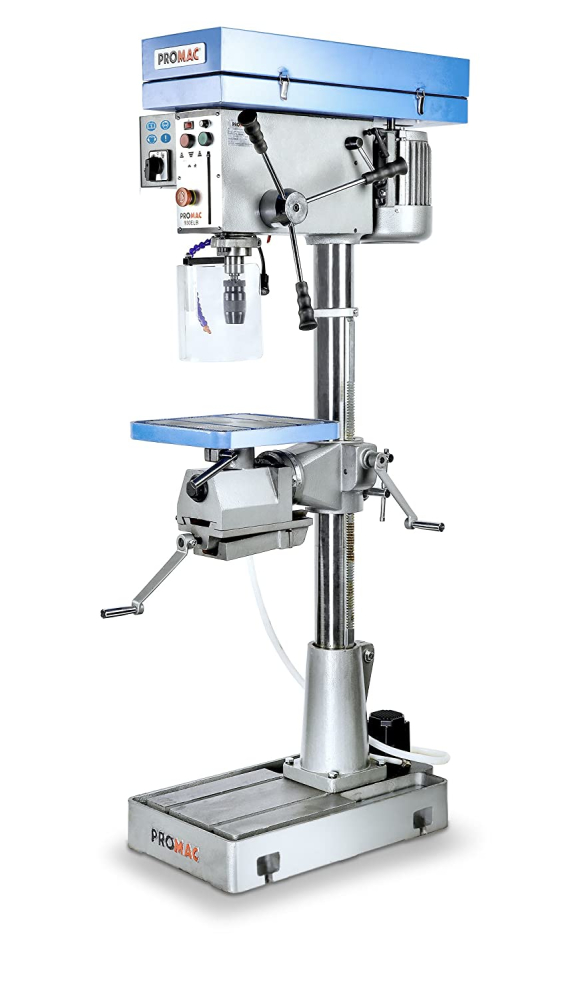

Promac 930ELB Drill Press

Stock Code: 930ELB
MPN: 930ELB
£3,021.38 (exc VAT) per 1
£3,625.65 (inc VAT)
Quantity: - +
  • 2-speed engine
  • Speed adjustment by means of V-belt
  • With keyless chuck 16mm, splinter protection, emergency switch
  • Rotatable drilling table with parallel grooves and integrated vice, adjustable via a rack
  • Integrated coolant system lubricates and cools the machining tool for a long service life
  • Safety system against automatic start of the machine
  • Electrically secured belt cover and splinter protection
  • LED work light for targeted illumination of the drilling site
  • 400v 3 phase 1,1kW motor
  • Max drilling capacity in steel 32mm
  • Speed adjustment by means of belt
  • Speed range 150 – 2,500rpm

Specifications

  • Motor (V/kW) 400/1,1
  • Cooling water pump motor 0,05kW
  • Drilling spindle MT3
  • Drilling capacity in steel 32mm
  • Drilling stroke 125mm
  • Number of speed 12
  • Table load 60kg
  • T-slot width 14mm
  • Jaw width 120mm
  • Span 75mm
  • Weight 180kg<-li>

MPN930ELB
BRANDPromac
WEIGHT180kgs
ConditionNew
