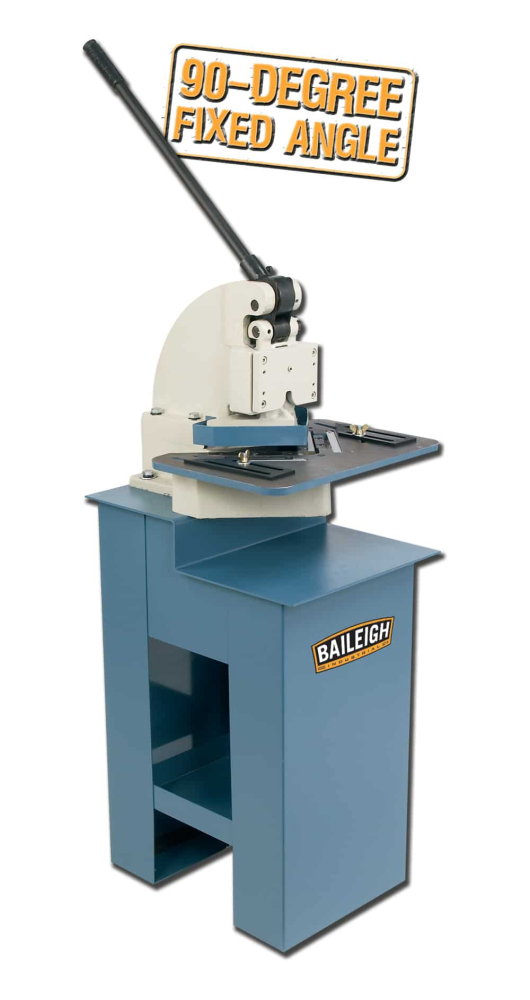

Baileigh SN-F16-HN Manual Corner Notcher

Stock Code: SN-F16-HN
MPN: SN-F16-HN

Descriptions

The SN-F16-HN manual corner notcher is a high-quality, cast iron, sheet metal notcher perfect for any garage or sheet metal shop. The cutting angle is fixed at 90° and can notch up to 6″ x 6″ in one manual stroke. For your safety we have included a blade guard for protecting fingers.

Because of the high-quality components used to make the SN-F16-HN, the finished notches are extremely clean and have burr free edges.

The SN-F16-HN sheet metal notcher includes a sturdy floor stand, freeing up valuable worktop space.

Take it off the stand and you have a machine that is very compact and can be easily moved from jobsite to jobsite.

Adjustable guides on the oversized table allow for accurate repeatable notches.

1.6mm mild capacity
1mm stainless capacity
Notch angle 90° (fixed)

Specifications

Item Number SN-F16-HN
Country of Manufacture Taiwan
Notch Angle 90° (Fixed)
Stroke Length 19 mm
Capacity (SS) 16 ga. (20 ga.)
Blade Length 152 mm
Power Manual
Shipping Weight 125 kgs.
Shipping Dimensions (Inches) 1524 x1118 x1219 mm
Belt Table Dimensions 457 mm x 304 mm
