Baileigh SN-F04-MS Corner Notcher

Stock Code: SN-F04-MS
MPN: SN-F04-MS

Descriptions

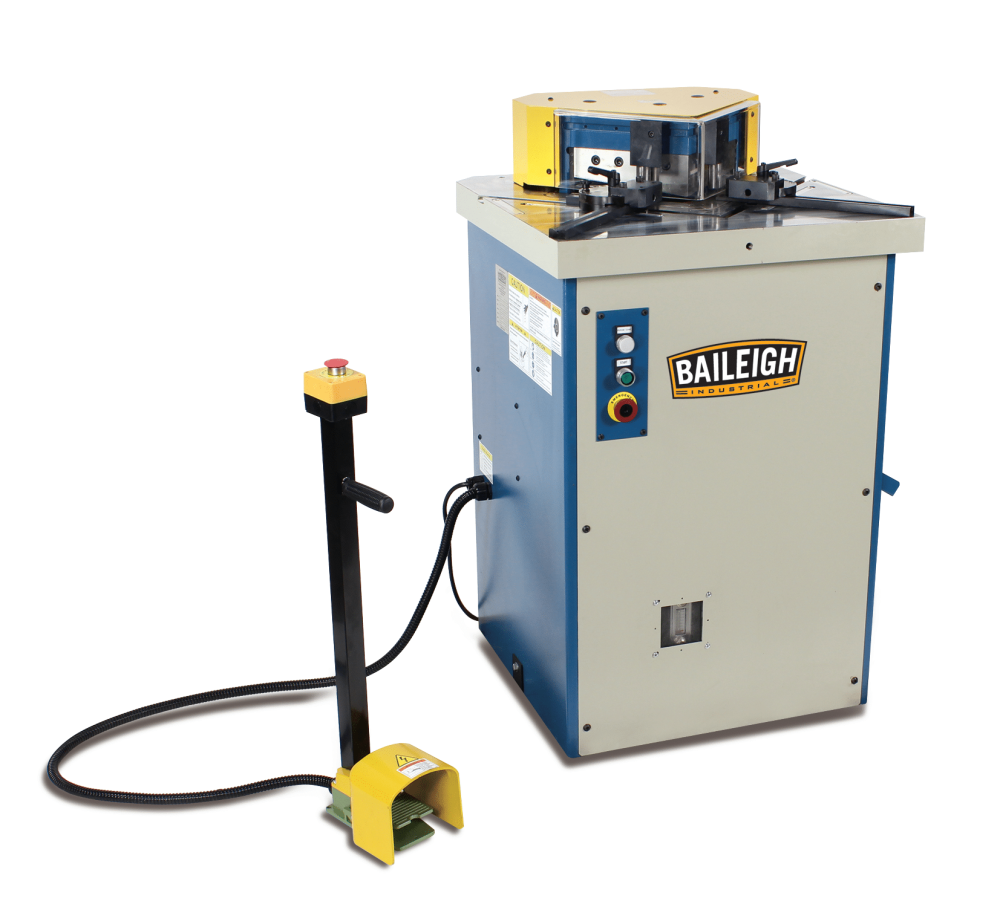

If you are looking for a little more capacity from your corner notcher, try the SN-F04-MS sheet metal corner notcher from Baileigh Industrial.

The SN-F04-MS is the great for making perfect corners in metal that are impossible with hand tools. This corner notcher has a 6mm mild steel capacity, so it can make quick work of most any job. The SN-F04-MS corner notcher has blades that are fixed at 90°, ensuring a perfect notch every time. A 650mm x 650mm oversized working table includes table guides, for even more accuracy.

The SN-F04-MS sheet metal notcher has 215mm long blades that can be flipped and resharpened many times for even more life and cost savings. The blades are also negatively raked to pull the material to the stops during the cut, for the most accuracy available. The SN-F04-MS sheet metal notcher comes with a powerful 400 volt, 50hz, three phase motor for years of notching. With an operator controlled foot pedal, the SN-F04-MS is capable of 15 strokes per minute.

6mm mild capacity
5mm stainless capacity
Notch angle 90° (fixed)

Specifications

Item Number SN-F04-MS
Country of Manufacture Taiwan
Table Dimensions 647 mm x 647 mm
Motor 3 kW
Notch Angle 90° (Fixed)
Strokes Per Minute 15
Max. Capacity 6 mm
Power 400V, 50Hz, 3-Phase
Shipping Weight 544 kgs.
Shipping Dimensions 1524 x 1118 x 1727 mm
Max Notch Dimensions 215 mm x 215 mm
