Baileigh SF-5216 Manual Foot/Treadle Guillotine

Stock Code: SF-5216
MPN: SF-5216

Descriptions

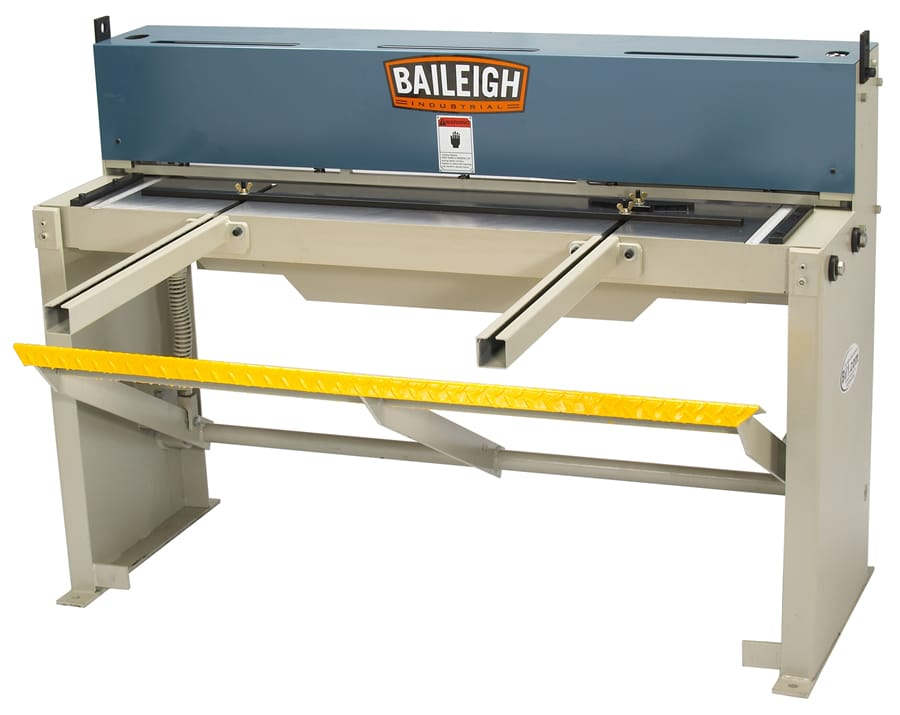

The SF-5216 foot shear from Baileigh Industrial is unlike anything on the market.

The fit and finish of the SF-5216 is unrivaled in the industry. This heavy-duty manual shear is capable of shearing 16 gauge mild steel sheet metal over its entire 52 length. The SF-5216 is made from solid steel construction for maximum rigidity. This rigidity helps the shearing process by having less deformation at the start of the cut.

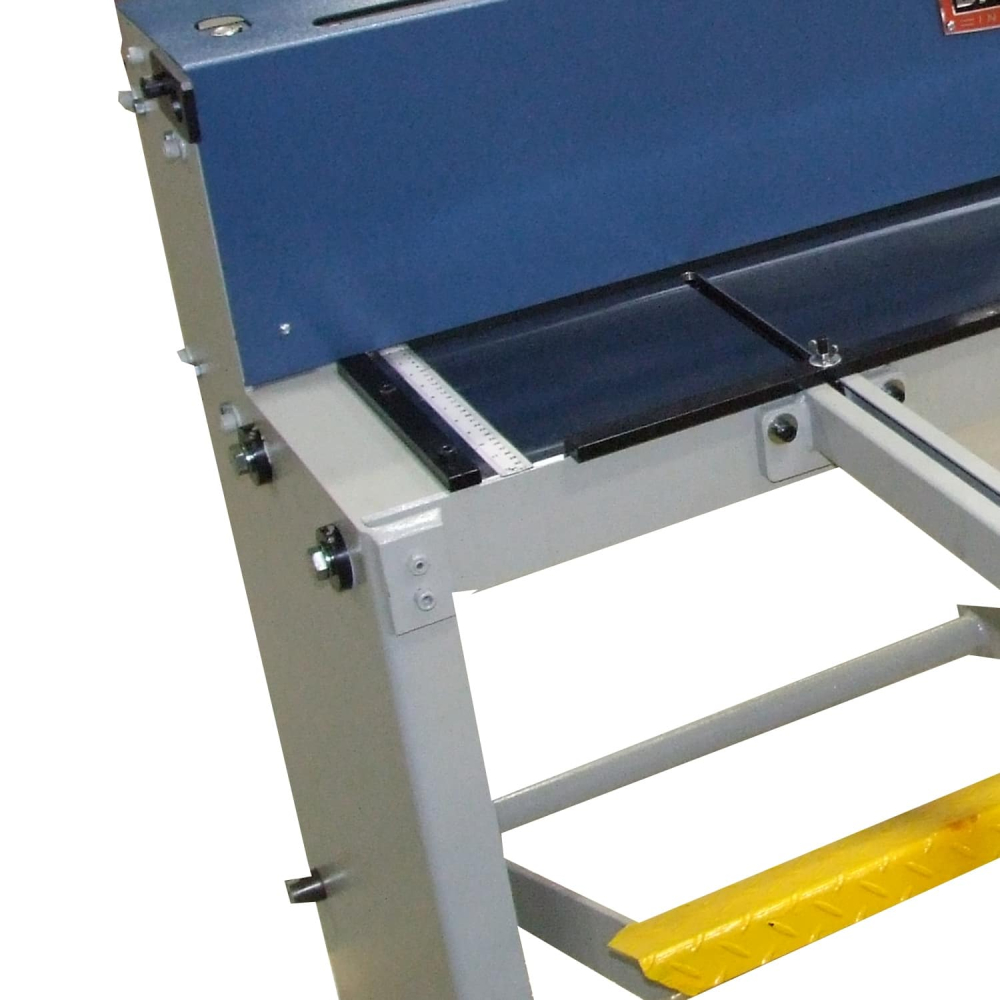

The SF-5216 is easy to operate. Simply put your material between the blade and the table, and stomp the foot pedal. There is also a finger guard for safety when shearing. Other features include a front gauge and back gauge range of 24″ for repeatable cuts time and time again.

Manual operation
1.65mm shear capacity (mild)
1321mm shear length

Specifications

Item Number SF-5216
Country of Manufacture Taiwan
Back Gauge Length 17159
Shear Length 1321 mm
Thickness (SS) 16 ga. (20 ga.)
Capacity 1.6mm
Front Gauge Length 609 mm
Blade Angle 1°
Power Manual
Shipping Weight 454 kgs.
Shipping Dimensions (Inches) 1702 x 813 x 1346 mm
