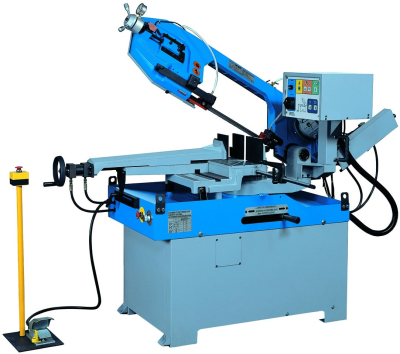

Promac SX_827DGSVI Semi-auto Bandsaw

Promac SX_827DGSVI Semi-auto Bandsaw

Stock Code: SX_827DGSVI
MPN: SX_827DGSVI
£8,621.38 (exc VAT) per 1
£10,345.65 (inc VAT)
Quantity: - +

Hydraulically controlled semi-automatic machine, Electronic variable speed control, Right-hand and left-hand cut by means of bow rotation, Blade guides with rolling contact bearings, Blade tension gauge with immediate stop in case of blade breakage, Including lubrication system, Supplied with sawing band, emergency stop switch and start pedal.

  • 270mm Round capacity
  • Dual-mitre upto 60° right and 45° left
  • Variable speed control
  • Hydraulically control semi-auto machine

Specifications

  • 270mm Round capacity at 90°
  • 260mm Square capacity at 90°
  • 350 x 220 Rectangle capacity at 90°
  • Motor (V/kW) 400/1.5
  • Blade speed (m/min-1) 20–85
  • Blade dimension (mm) 3’160×27×0.9
  • Tilting head, tiltable by 60° right, 45° left
  • Vise opening (mm) 360
  • Working height (mm) 900
  • Dimensions (mm) 749×1’880×1’715
  • Weight (kg) 460
MPNSX_827DGSVI
BRANDPromac
WEIGHT460kgs
ConditionNew
