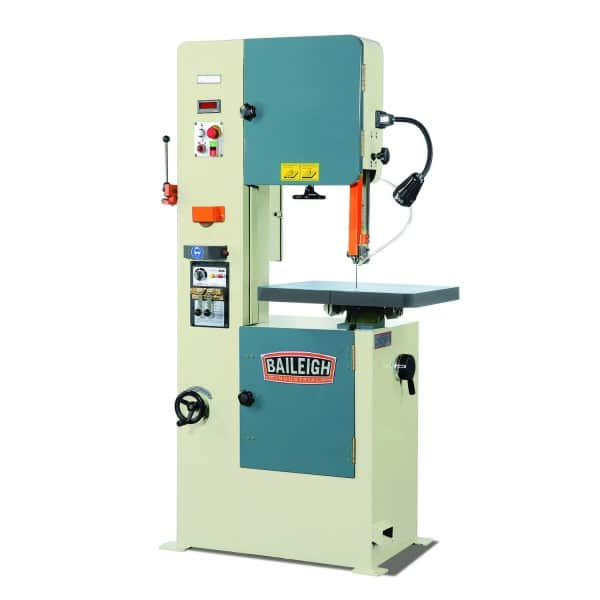

Baileigh BSV-20VS Variable Speed Vertical Bandsaw 3 Phase

Stock Code: BSV-20VS-3PH
MPN: BSV-20VS-3PH

Descriptions

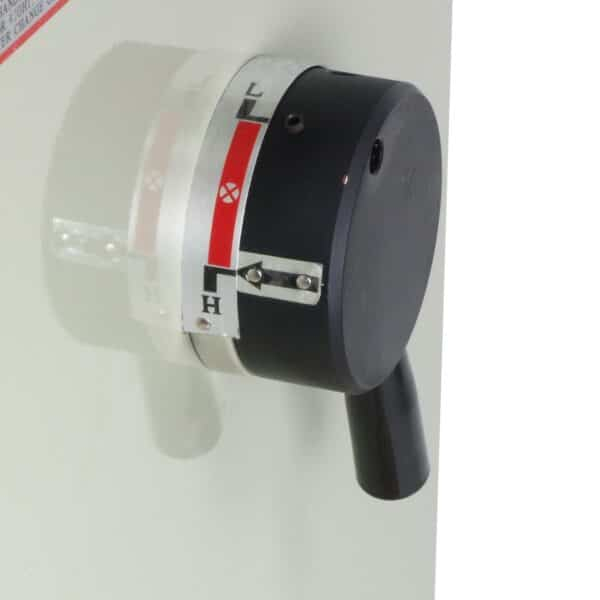

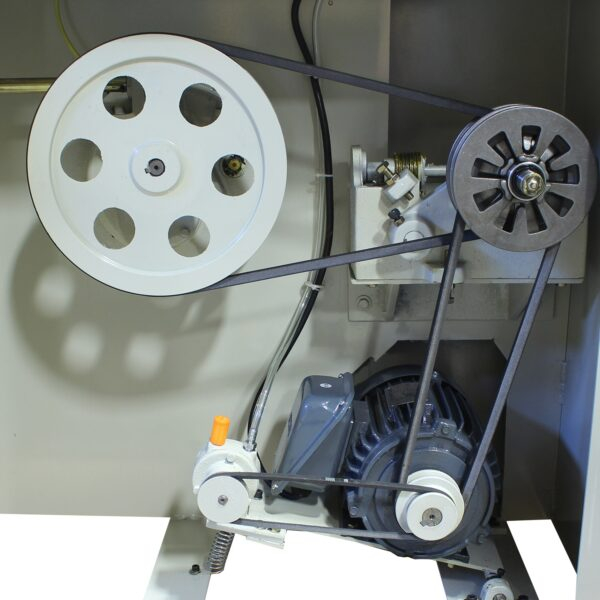

The BSV-20VS vertical bandsaw adds to an already impressive range of vertical bandsaws from Baileigh Industrial. Not only does the BSV-20VS bridge the gap between the popular BSV-16 and the huge capacity of the BSV-24, but adds a variable speed pulley. The BSV-20VS vertical bandsaw is one of the most useful and versatile tools you will ever buy. Because of its true variable speed, this vertical bandsaw can used to cut wood, metal, and even plastic. You can also not only use it to make straight cuts, but also those awkward curved cuts too. The BSV-20VS is a must for any serious fabrication shop.

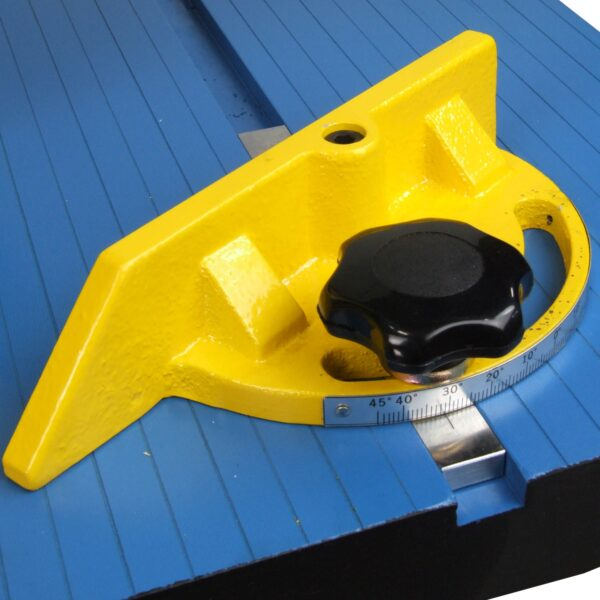

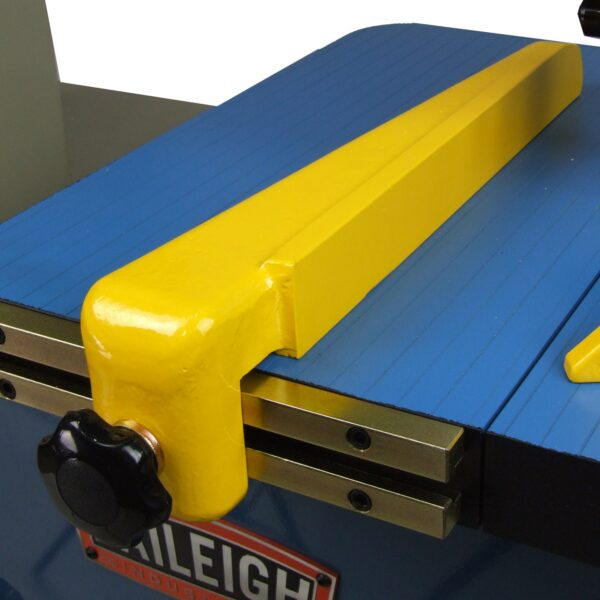

The BSV-20VS vertical bandsaw also includes a saw blade shear, and a saw blade butt welder with a built-in grinder for finishing the weld joint. And to make sure that your cuts are straight and repeatable, Baileigh Industrial is also including a rip fence and protractor. Like the rest of the Baileigh Industrial vertical bandsaws.

3mm – 19mm blade width
314mm maximum thickness
521mm throat depth

Specifications

Item Number BSV-20VS
Table Size 660 x 699 mm
Butt-Welder Capacity (Blade Width) 17165
Slant of Table 5° Left, 15° Right
Motor 1.5 kW
Maximum Thickness 314 mm
Throat Depth 521 mm
Blade Length 3886 mm
Blade Speed 65 – 1640 fpm
Blade Thickness 1 mm
Power 220V, 50Hz, 1-Phase / 400V, 3-Phase
Shipping Weight 770 kgs.
Shipping Dimensions (Inches) 1450 x 1100 x 2140 mm
