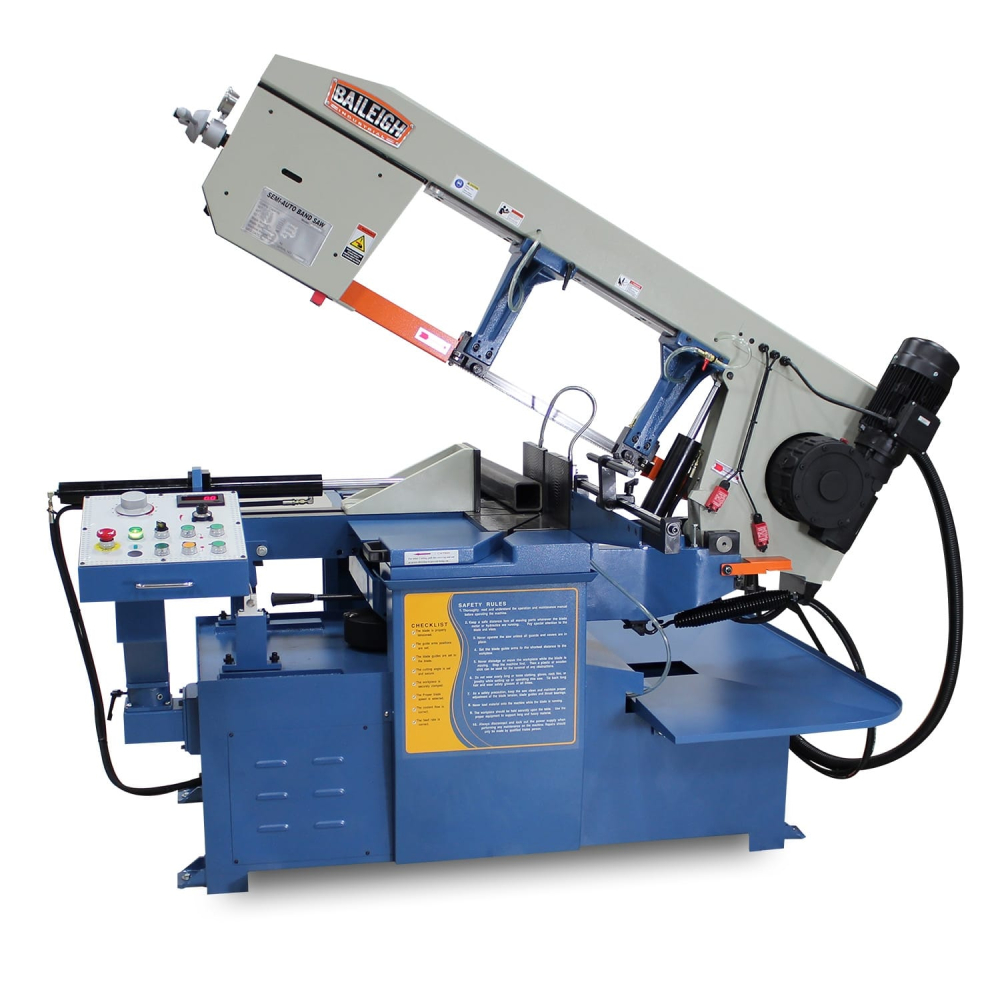

Baileigh BS-20SA-DM Semi-Automatic Dual-Mitering Bandsaw

Stock Code: BS-20SA-DM
MPN: BS-20SA-DM

Descriptions

The BS-20SA-DM semi-automatic bandsaw has evolved many times to become the model you see today. Many innovative features are now offered in this great package. The BS-20SA-DM is a dual mitering saw with capabilities to mitre 45° left and 60° right with just a flick of the wrist and a push or pull of the head. The BS-20SA-DM bandsaw also offers a heavy-duty infeed table and outfeed table.

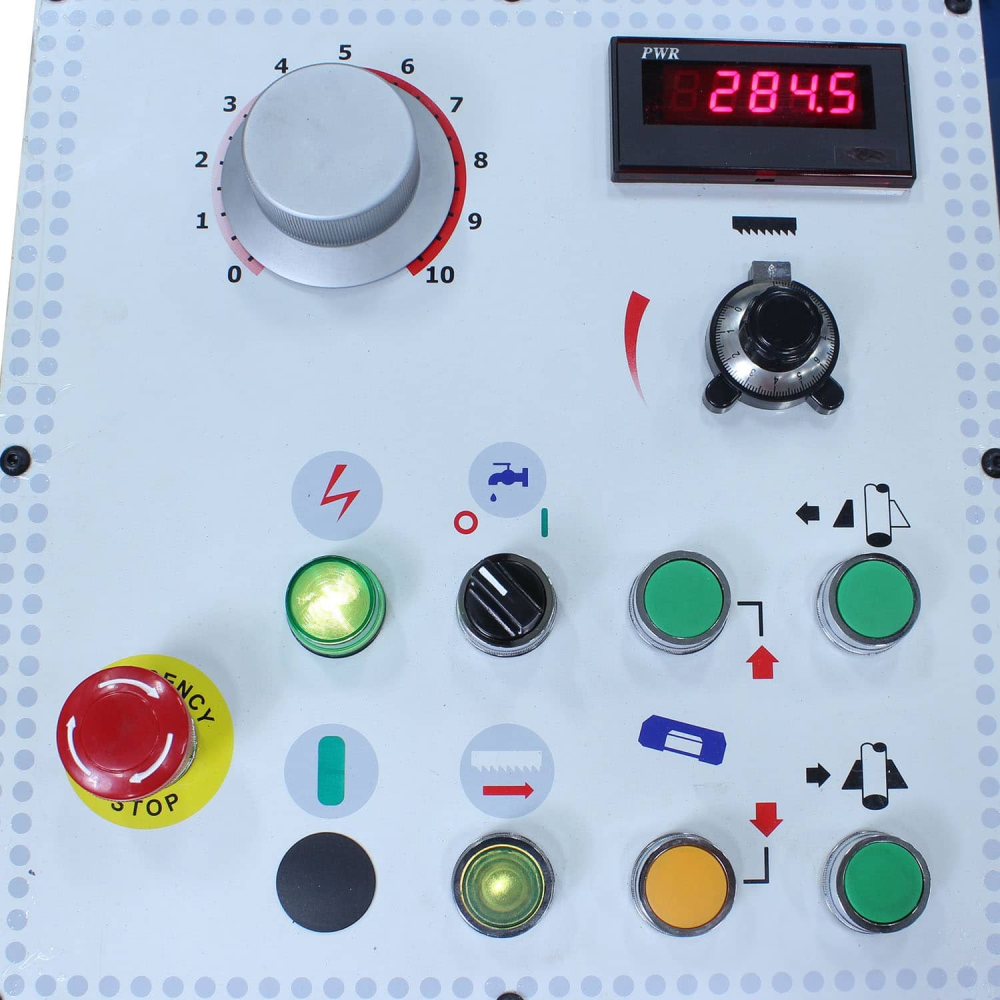

Available in 220 volt single phase or 440 volt three phase, the BS-20SA-DM horizontal bandsaw requires a 1.25″ bandsaw blade, making it an extremely accurate and fast cutting. This saw comes standard with an inverter drive allowing for infinite blade speed adjustments between 69fpm and 306fpm. This allows the user to finely tune the proper speed for different materials like mild steel, bronze or aluminum.

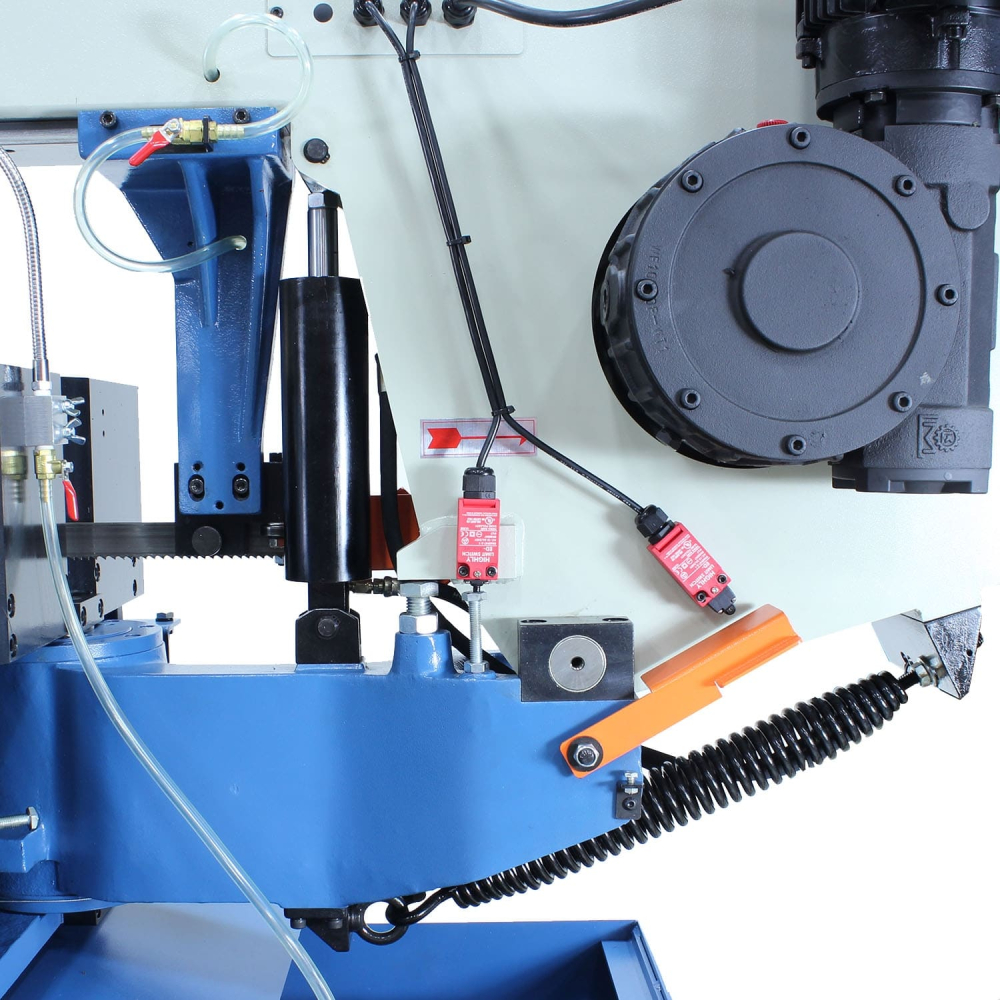

The hydraulic descent pressure can be adjusted by the operator achieving faster or slower cut times, depending on what material the operator is cutting, resulting in improved blade life. The return position of the metal cutting head can be altered to achieve faster cycle times between cuts.

Baileigh Industrial horizontal bandsaws are built to the highest quality standards on the market, and will offer any fabrication or machine shop decades of precision sawing.

330mm round capacity
0°-45° mitre l, 0°-60° mitre r
Pressure assist hydraulic descent

Specifications

Item Number BS-20SA-DM
Country of Manufacture Taiwan
Return Hydraulic
Miter Adjustment Dual Miter Swivel Head
Miter Angle 0 60°, 45°L
Motor 2.2 kw
Capacity Rectangle 90° 13″ x 18″ / 13″ x 10.6″ / 12.4″ x 7.7″
Capacity Round 90°/ 45° / 60° 330 mm / 305 mm / 216 mm
Capacity Square 90°/ 45° / 60° 13″ x 12″ x 8.5″
Blade Guide Carbide / Roller
Blade Size (H x W x L) 34 mm x 1.1 mm x 4880 mm
Blade Speed (fpm) 60 – 306 Inverter Driven
Descent Control Pressure Assist Hydraulic
Drive Inverter Direct
Power 400V, 50Hz, 3-Phase
Shipping Weight 980 kgs.
Shipping Dimensions (Inches) 2250 x 902 x 1560 mm
