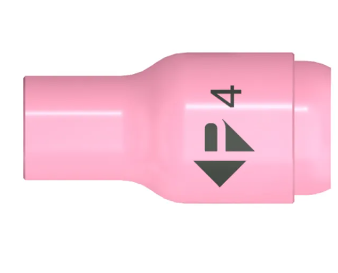

13N08 weldcraft style ceramic cup #4 with 6mm bore WP9,20,25

Stock Code: WT13N08
MPN: 13N08

Descriptions

These Weldcraft style Tig welding ceramics are for use with a Standard Collet body for Tig welding with either a WP9, WP20 or WP25 type torch.

Made from Alumina and available in various bore sizes from 6mm to 16mm.

Alumina TIG ceramic cups are non conductive ceramic nozzles, usually pink, usedin Tig welding to provide a stable, heat-resistant shield of argon gas around the weld pool for cleaner, high-quality welds on all materials including steel, stainless steel, Titanium or Aluminium

The number stamped on the ceramic denotes the imperial bore size in 1/16 of an inch.

#4 = 1/4"

#5 = 5/16"

#6 = 3/8"

#7 = 7/16"

#8 = 1/2"

#9 = 9/16"

#10 - 5/8"
