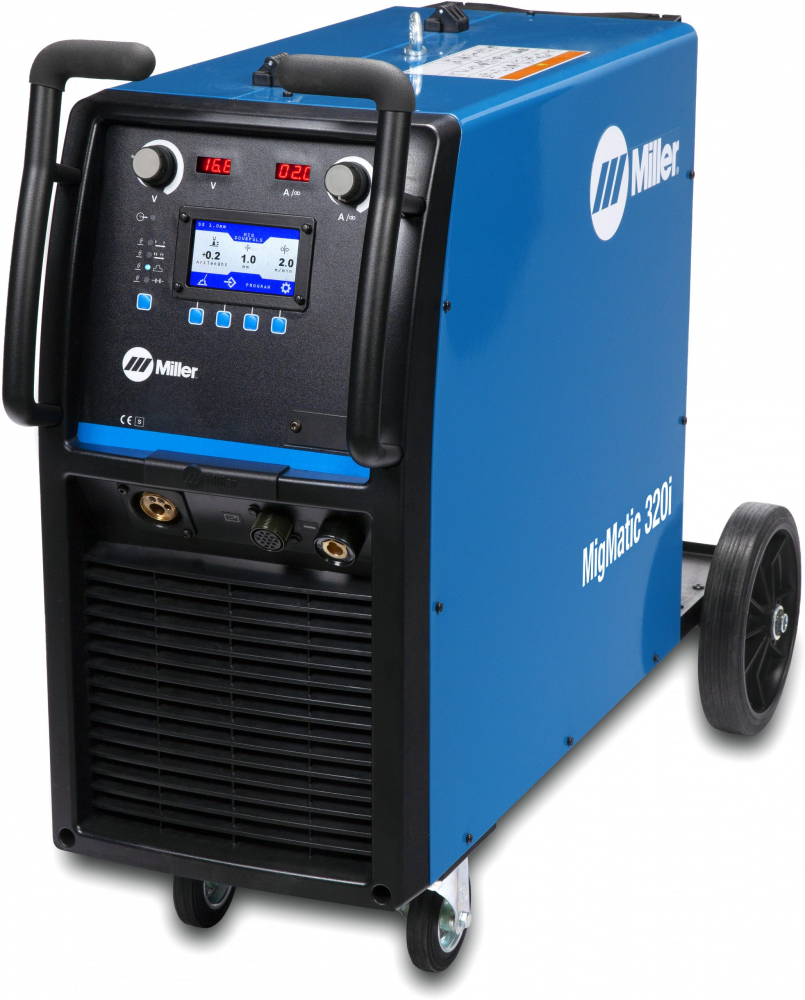

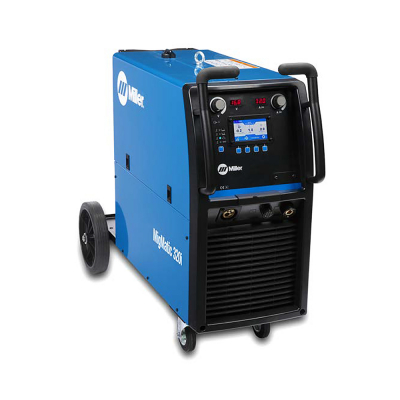

Miller MigMatic 320i MIG/MAG Unit 3PH 400v

Stock Code: WPM320I
MPN: 059015053

Descriptions

Miller MigMatic 320i synergic MIG/MAG system featuring a heavy duty drive mechanism capable of consistent and precise wire feeding regardless of your choice of wire. The machine is quick to set up and the graphical user interface makes it easy to achieve those perfect weld parameters with very limited training required. The MigMatic® 320i is the perfect work shop tool and ideal for both solid and flux core wires.

Features:

Trigger program switch

Re-call up to 4 preset programs from the torch trigger (any standard MIG torch) for increased productivity on complex objects.

Miller robustness

Tested and approved for heavy duty welding under the toughest conditions. Miller goes to extreme measures to ensure trouble free welding in any environment.

Heavy duty wire drive mechanism

The 4-roll drive system will ensure trouble free wire feeding.

Energy efficient

The energy saving Fan-On-Demand™ power source cooling system operates only when needed, reducing noise and the amount of contaminants pulled though the machine.

Full synergic MIG/MAG with presets

Synergic lines for all common wire/gas combinations with presets of start/stop parameters for optimal welds.

Ease of use and versatility

Large intuitive LCD panel for quick and precise setting of advanced weld parameters.

400 VAC, 3 ph (50/60 Hz) equipped with mains cable 3 m Fitted with Euro connector and 1.0 - 1.2 mm “V” groove drive rolls, 3Mtr Current return cable & clamp.

Industries Interests	General fabrication Car repair Training schools Agricultural equipment Repair and maintenance
Material Thickness
Weldable Metals	Thin to thick, All materials, 0,8-1.2 mm solid, Cored wires
Input Voltage	400 V
Input Phase	3 phases
Input Hz	50/60 Hz
Amperage Range	15 A – 320 A
Max. Output Amperage	350 A
Current Type
Rated Output	320 A, 30 V at 35% duty cycle
Max Open Circuit Voltage	70 VDC
Portability
Weld Output
Net Width	470 mm
Net Height	830 mm
Net Length	1070 mm
Net Weight	57 kg
Warranty	3 Years Miller’s True Blue Warranty
