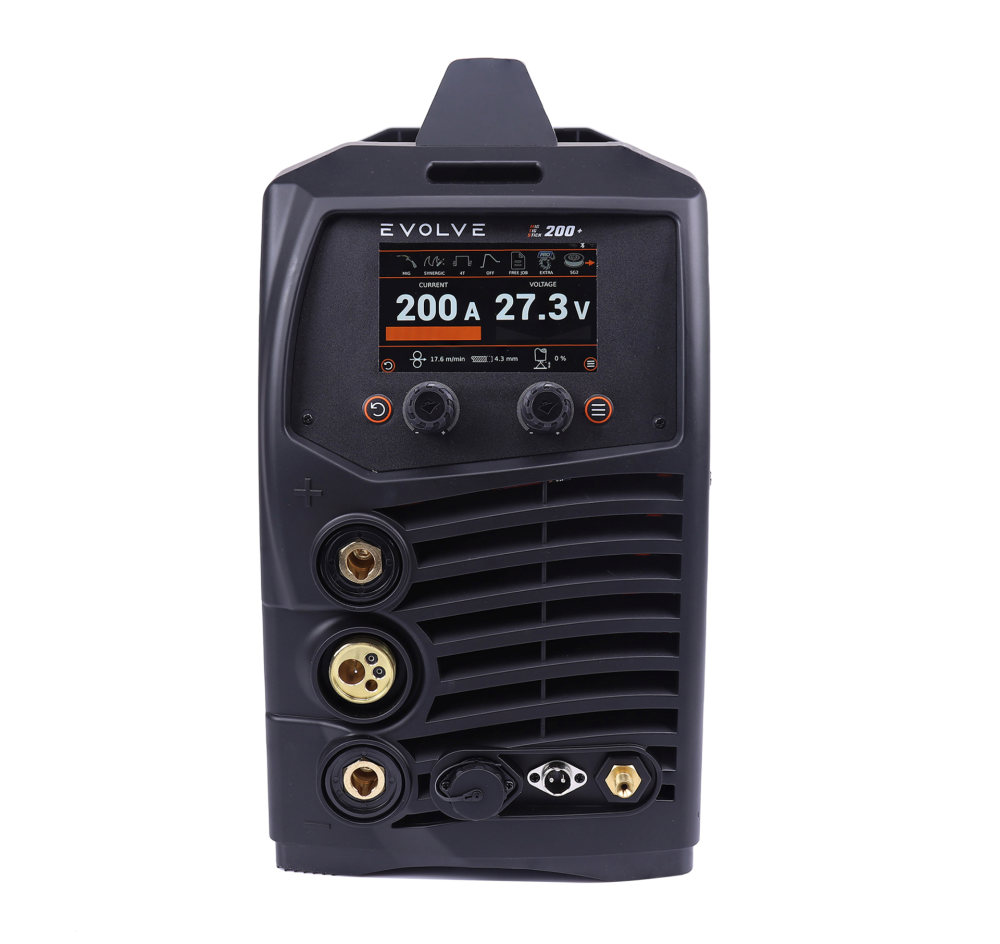

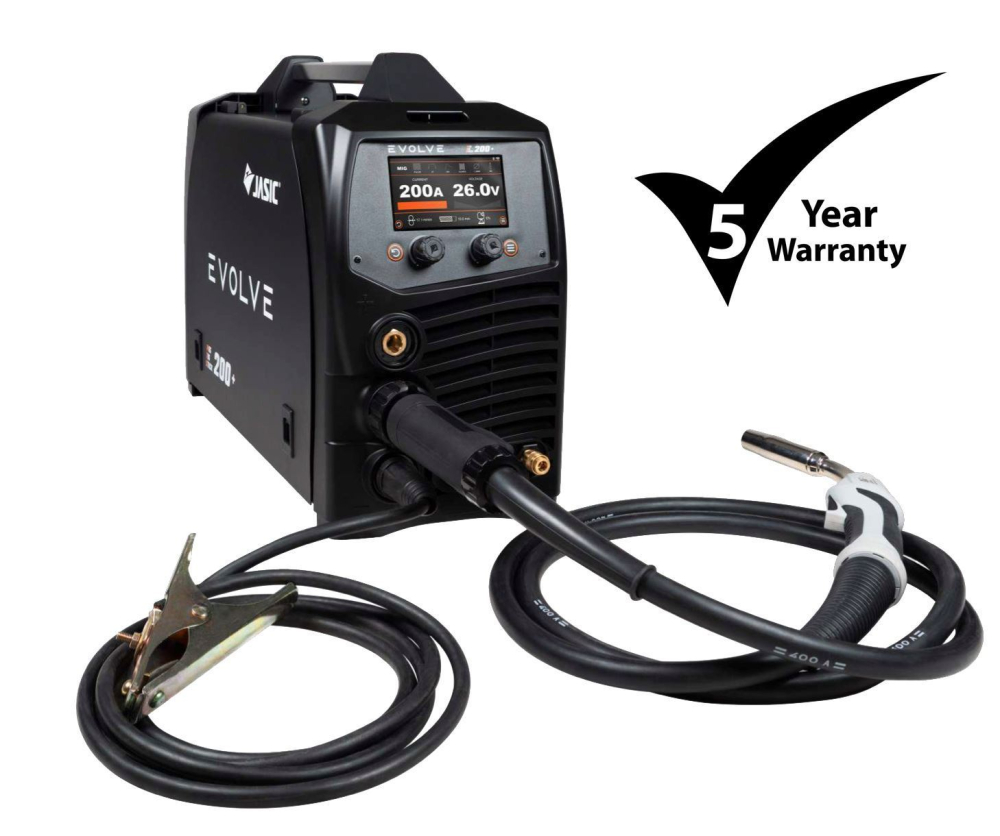

Jasic EVOLVE MIG 200P (Multi Process) Inverter

Features

• Single and double pulse synergic MIG
• High frequency/LIFT DC pulse TIG
• MMA
• 4 roll wire feeder
• User friendly graphical user interface
• Wi-Fi enabled firmware updates
• App control
• Digital control MIG torch
• 100+ Synergic programs
• 100 job memory storage
• 2T/4T/Spot trigger control
• IP23S
• On demand cooling
• Ideally suited for light industrial fabrication work
• Generator friendly *must have AVR

Technical Data:

Processes MMA/MIG/MAG/Pulse MIG/Double Pulse MIG/Lift TIG/HF TIG

Power supply 1ph~AC230 V, 50/60 Hz

Rated input power 5.83 kVA

Power factor 0.65

Rated efficiency 82%

Rated no-load voltage 77 V

Rated maximum output MMA 180 A/27.2 V, MIG/MAG 200 A/24 V, Lift TIG/HF TIG 200 A/18 V

Rated duty cycle 25% @40℃

Welding output range MMA 20180 A, MIG/MAG 20200 A, Lift TIG/HF TIG 5~200 A

Protection class IP23S

Insulation class H

Welding wire material SG2/SST (CrNi)/AlMg5/AlSi4/Cusi3

Cooling method Air cooling

Dimensions 605 x 400 x 230 mm

Weight 17.0 kg

What is EVOLVE？

It is a new product series developed by JASIC that features full digital control welding machines with IoT technology and cloud service.

Advanced DSP Processor

Full Digital HMI

High Precision Arc Control

Cloud Service

Why EVOLVE?

Today’s welding challenges are complex and constantly changing, and a welding machine that can update its processes and functions on

demand is JASIC’s response to those challenges.

This constantly EVOLVEing future-proof inverter fits the modern welding environment and survives its challenges.

The EVOLVE 200+

Being the introductory model in the range, it brings in JASIC’s concept of advanced digital welding thanks to 4 main aspects of the machine:

The ARM Cortex-M4, with its floating-point unit (FPU), is ideal for precise pulse control due to its efficient signal processing.

It supports advanced welding algorithms, enhancing the EVOLVE200+’s overall weld quality.

Full Digital HMI (Human-Machine Interface)

EVOLVE’s digital interface provides a seamless, intuitive user experience, regardless of the welder’s distance from the power source.

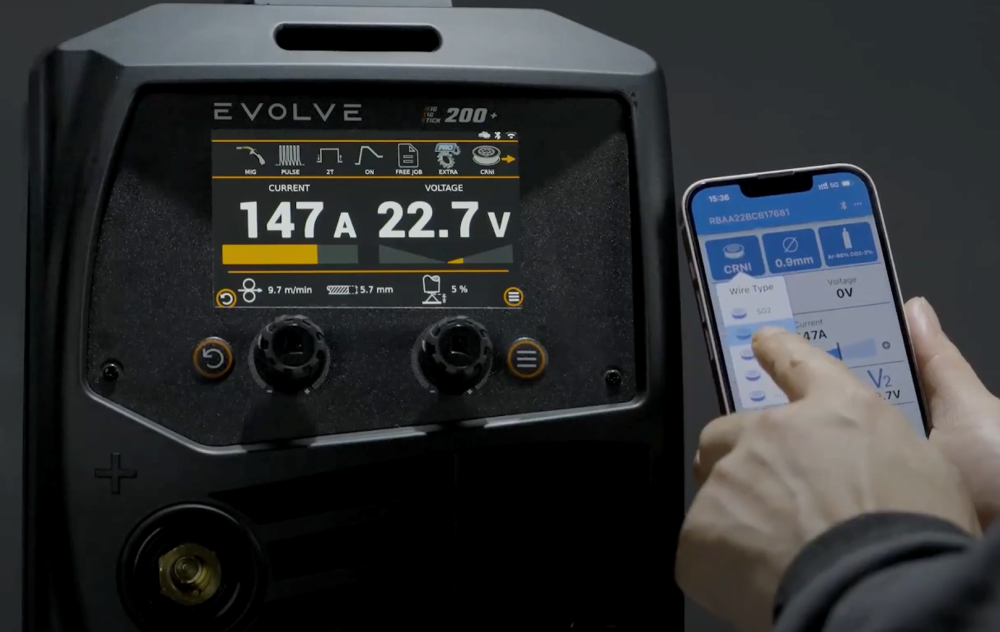

Mobile App

Capable of managing multiple machines

Wireless connection via Bluetooth or Wifi

Intuitive user interface

Comprehensive welding parameter configuration

Inverter Frequency Modulation

This feature boosts EVOLVE200+’s energy efficiency by adjusting its inverters’ switching frequency (26K-40K) based on output. High frequency for low current settings improves arc control, while low frequency for high current reduces power loss and heat.

Glick Function

The “trim” function allows users to adjust output current mid-weld during 4T MIG/TIG welding by pressing the torch trigger. This enables more precise heat control and greater flexibility in weld bead shaping.

Double Pulse MIG Welding

Double pulse MIG welding uses two current pulses per cycle. This stirs the weld pool more effectively than single pulse, resulting in finer grain structure, better weld bead quality, and reduced heat input.

JTECloud

This cloud service aims to provide comprehensive productivity boost by allowing users to capitalize on the power of welding data and IoT applications.

Professional Welding Cloud Service

Welding data documentation, statistics, and analysis

Cost calculation and analysis

Machine management and maintenance

OTA (Over-the-air) Firmware Update

Users can receive push notification on the EVOLVE200+ whenever there’s a new version of firmware available*. Upon the user’s approval, the machine will download the updated firmware and complete firmware update process automatically.

Note: the machine’s firmware is also downgradable.

On Demand Processes & Functions

To be an EVOLVE welding machine means being able to renew its processes and functions according to the job’s requirements. When connected to JTECloud, the EVOLVE200+ is able to download new processes and functions, and replace the old ones if the user wishes.

Fully Synergic, Powered by JTECloud

The EVOLVE200+ has 19 built-in synergic programs covering MMA, TIG, MIG/MAG, pulse MIG and double pulse MIG.

And on JTECloud, users can have access to an ever-expanding synergic program library. Users can download these on-cloud synergic programs to the EVOLVE200+ when the machine is connected to JTECloud.
