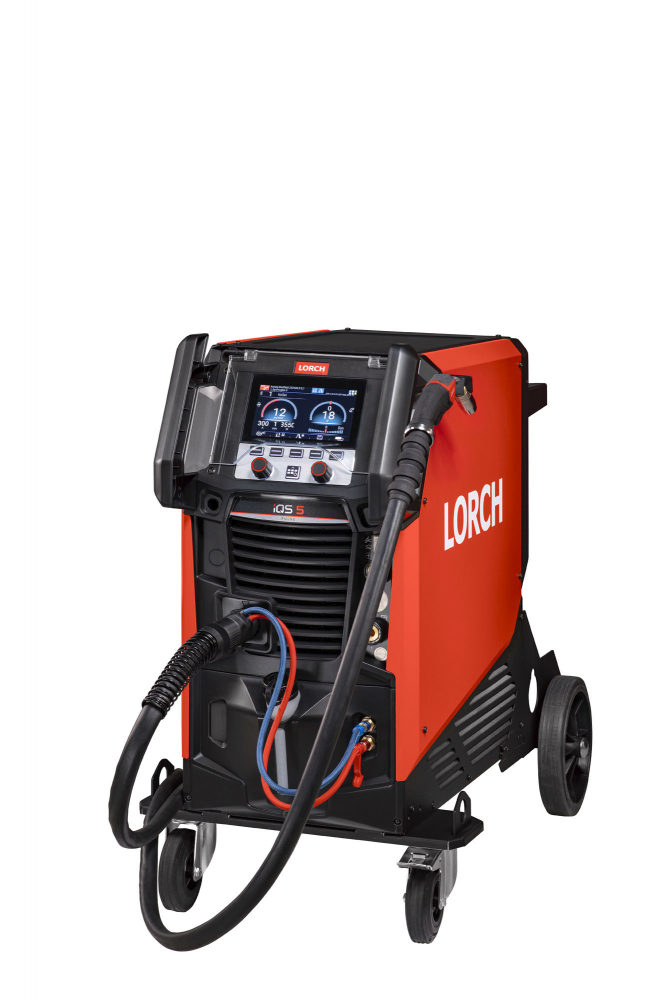

Lorch iQS 5 compact 400 amp water cooled Mig with LMS Torch
Lorch iQS 5 compact 400 amp water cooled Mig with LMS Torch
Lorch iQS 5 compact 400 amp water cooled Mig with LMS Torch

Lorch iQS 5 compact 400 amp water cooled Mig with LMS Torch

Stock Code: WPL1QS5400AWFP
MPN: 227.5191.3
£10,600.00 (exc VAT) per 1
£12,720.00 (inc VAT)
Quantity: - +

Lorch iQS 5 compact 400 amp water cooled Mig with LMS Torch

The new Lorch iQS Mig/Mag welding machine has the very latest welding technology and always updates as new process's become available with software updates over wi-fi.


This new machine welds all materials and is supplied with all the Lorch weld process's as std.

Includes the following process's SpeedPulse XT, Pulse XT, SpeedArc, SpeedRoot, SpeedUp, SpeedCold, RCS, SpeedTwin, Twin function, SpeedWaveXT and other process variants for various applications.


Lorch are confident that once you have used this machine you will be suitably impressed with the functionality and weld quality and if you undertake an onsite demonstration of an iQS machine they will give you one of their APR 900+ headshields free of charge.


To book your demo fill in your details on the Lorch website here


Download brochure below




New Smart Process Control Engine.

Time equals money – it certainly does in production. A new SPC engine allows us to develop welding processes and suitable synergic lines and to transfer them to your iQS even more quickly. We are also happy to incorporate our customers' ideas in this. This makes it easy to create new innovations – in record times. In any case, you will always get cutting-edge equipment – no matter the market developments.


Clean weld seams, barely any spatter.

A newly developed RCS module (Rapid Current Shutdown) has enabled us to further improve our short arc processes. The result is a particularly clean process with less spatter and even higher weld seam quality. This saves your welders the need for elaborate rework and thus plenty of time and money.

Another advantage for the user: The weld pool can be better controlled and manipulated. This improves welding greatly, in particular thin sheets <3mm.


New inverter.

A new, robust inverter was developed for the iQS. It makes processes run even more stably and smoothly. Users can steplessly adjust parameters and select the perfect working point for them. This improves the weld seam quality and minimises rework.

Its high performance also makes the iQS ideally suited for robot connections – offering an opportunity for companies to further optimise operator comfort, cost efficiency, and welding results. Experience welding 4.0.


Optimal welding behaviour saves time.

Faster to get started: The iQS offers the right synergic lines for virtually any application – rendering major corrections unnecessary.

Faster in the process: Our speed synergic lines enable faster welding for the user.

Faster to finish: Our processes are particularly low-spatter, saving elaborate rework.


Excellent welding results.


The robust and new inverter technology of the iQS series ensures maximum stability and smooth processes. You can set the parameters steplessly and select the optimum operating point to improve the weld seam quality and minimise rework. In addition, all Lorch welding (processes) are available on the iQS, and the new Smart Process Control Engine continuously expands the range of processes. The result: outstanding welding results for steel, stainless steel and aluminium.


Robust industrial housing.


Robust metal housing, low gas cylinder holder, crane lugs, torch holder: the welding systems in the iQS series are designed and built to support you in your welding challenges for years to come. Thanks to the new water cooling concept, you also have maximum flexibility. The water cooling can be easily retrofitted at any time. The new Smart Cockpit makes operating the iQS child's play. Everything is displayed graphically and is customised to the respective application.


Future-proof network.


The iQS is upgradeable, which means that you can customise the technical features of your welding system at any time to meet new requirements. This helps you stay flexible and future-proof. In addition, the iQS allows you to network at any time. The result: convenient and easy read-out and evaluation of welding data, WLAN capability, software updates and the option to purchase welding (processes) online.


Seamless integration and efficiency.

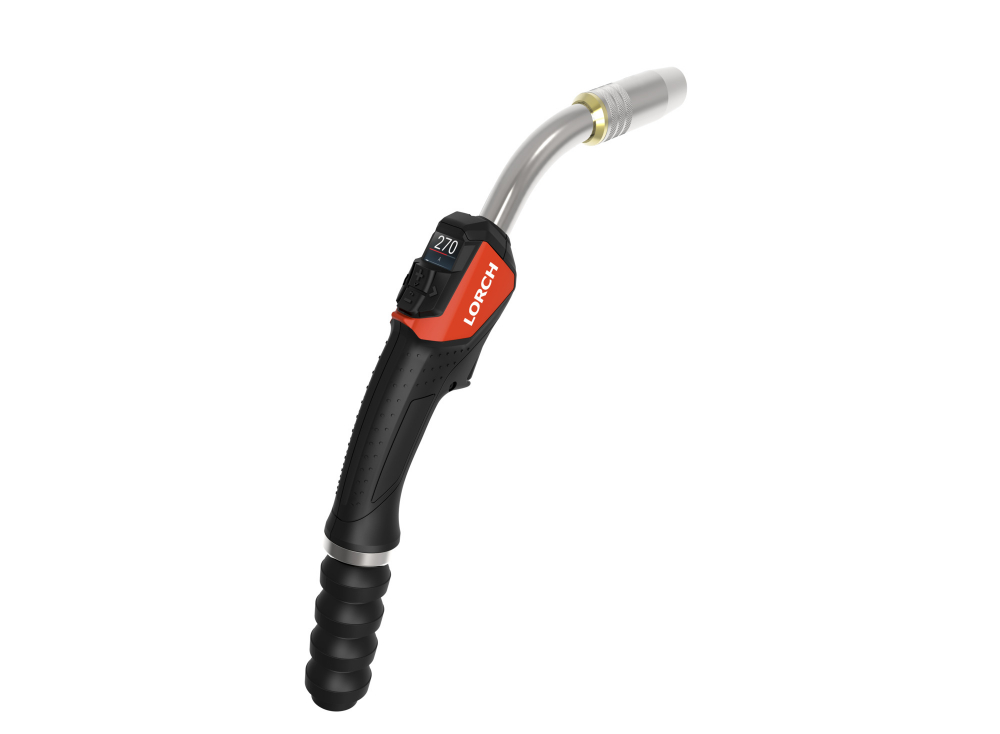

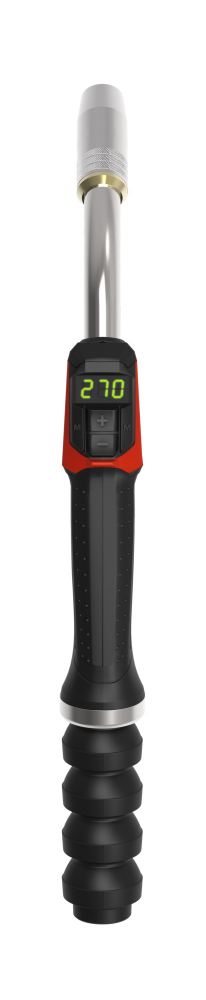

A perfectly coordinated complete system with the Lorch central connection and the iQ LMS Performance torch. Seamless transition between the feeder and the torch: No liner adjustments necessary when changing the torch. Intelligent torch identification and a robust bus protocol for precise torch operation. Efficient current transfer up to 600A via lamella contact for a long service life and reduced energy loss. A ‘click’ – immediately ready for use. Easy and simple torch change. (optional plug in Euro torch converter available)



Technical data iQS 5

MIG-MAG welding

Voltage range:

[V]

15 - 34

Current Range

(I)

25-400

Weldable Wires Steel:

[Ø in mm]

0.6 - 1.6

Weldable wires Stainless steel:

[Ø in mm]

0.8 - 1.6

Weldable wires aluminum:

[Ø in mm]

1 - 1.6

Weldable wires CuSi:

[Ø in mm]

0.8 - 1.2

Voltage setting

Voltage setting:

variable

MIG-MAG duty cycle

Duty cycle 100% (40°c):

[A]

300

Duty cycle 60% (40°c):

[A]

400

Duty cycle at max. current (40°c):

[%]

60

Mains

400 V

Mains voltage 3~ (50/60 Hz):

[V]

480

Mains fuse 3~ (50/60 Hz):

[A]

32

Positive mains tolerance 3~ (50/60 Hz):

[%]

10

Negative mains tolerance 3~ (50/60 Hz):

[%]

-10

Mains plug

Mains plug:

CEE 32

Standards and approvals

Protection class:

IP23S

Insulation class:

F

Norm/Standard:

EN 60974-01

Designation/Certification:

CE, S

Cooling type

Cooling type:

Gas-cooled , Water-cooled

Cooling

Standard cooling capacity (l/min):

[kW]

1.2

Tank capacity:

[l]

5

Dimensions

length x width x height

Dimensions (LxWxH)

[mm]

1,090 × 508 × 892

Dimensions wire feed case (LxWxH)

[mm]

689 × 242 × 422

Weights

Weight:

[kg]

94

Weight wire feeder case:

[kg]

15.75

Weight, water cooling (filled):

[kg]

14

MPN227.5191.3
BRANDLorch
