JEI Magbeast HM50T Drilling Machine 240V with Swivel Base

Stock Code: PTJMHM50T240SB
MPN: DRILL-HM50TS/2

Descriptions

A heavy duty 2 morse taper drilling machine, Featuring variable speed and reverse function.

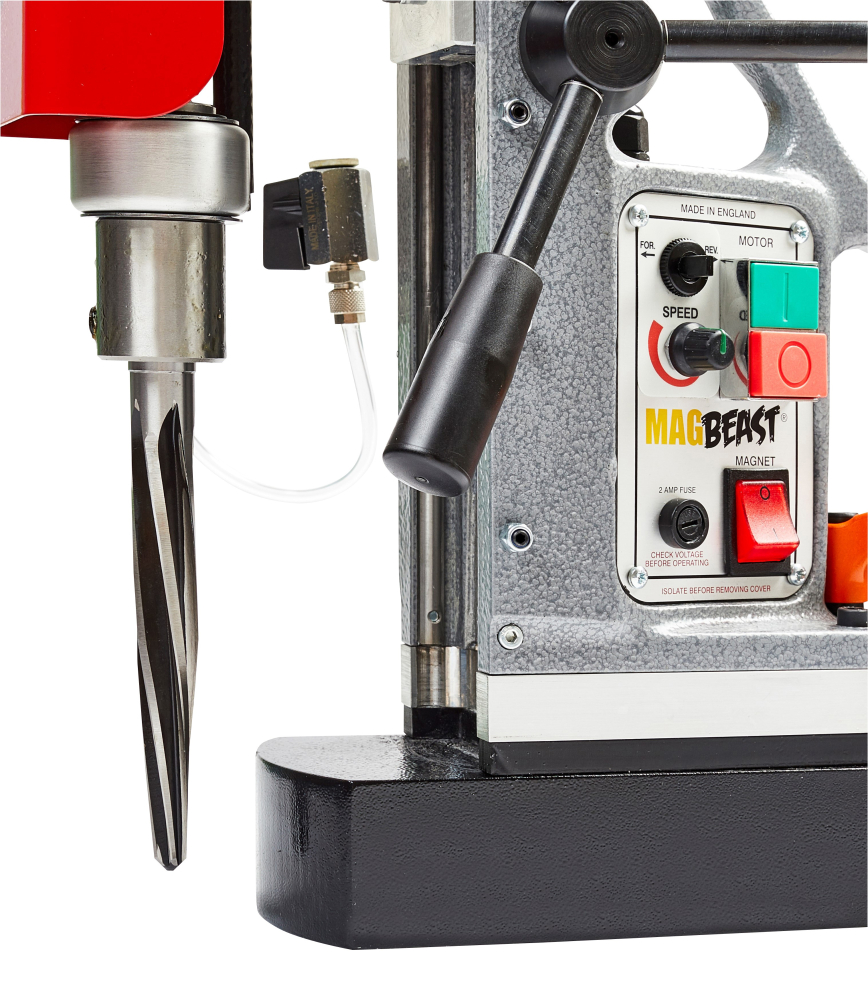

Variable speed, high torque motor. Ideal for countersinking and reaming.

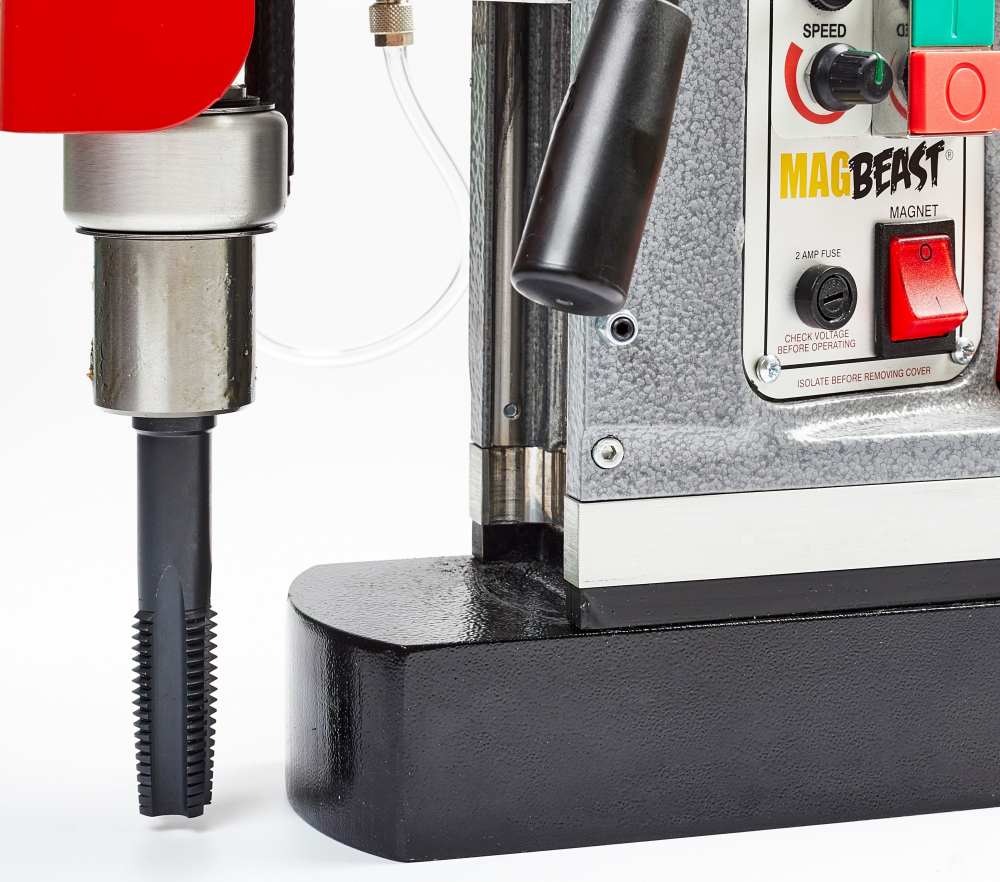

Reverse speed motor ideal for threading (tapping) holes.
Lightweight. Only 14kg yet can cut up to 50 mm diameter.

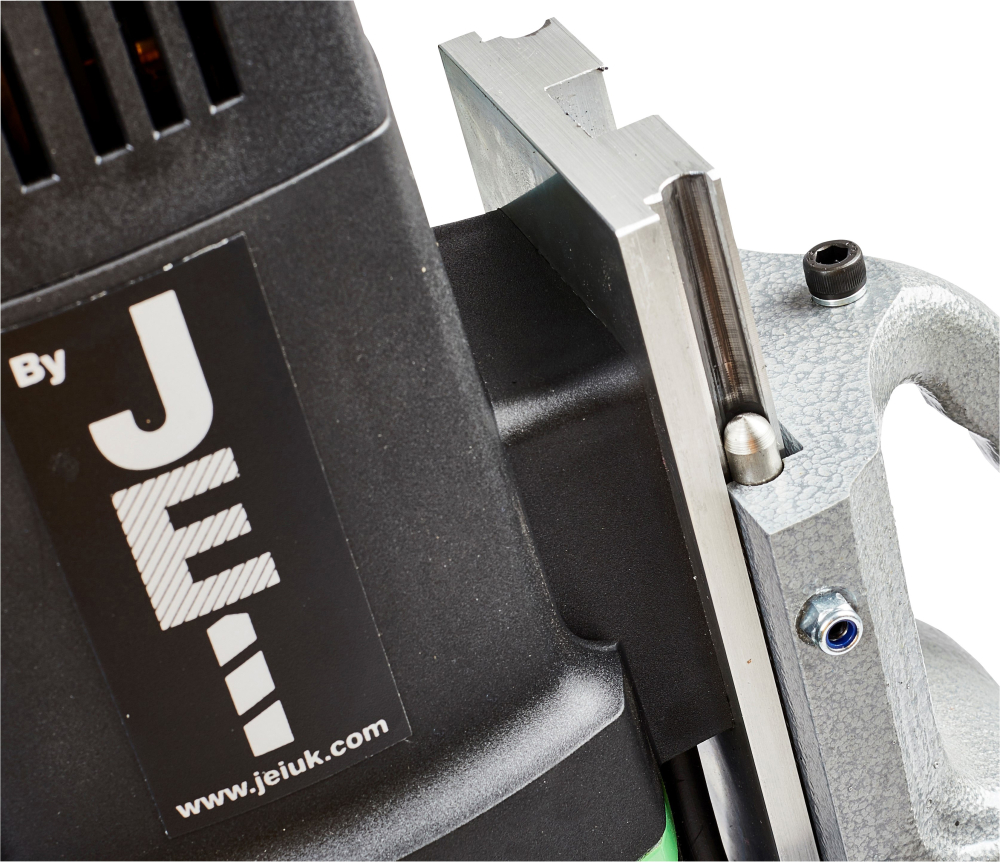

Maintenance friendly twin slide rails.
No wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).

A heavy-duty 2 morse taper drilling machine, the MagBeast® HM50T is ideal for countersinking and reaming. A lightweight option, weighing at only 14kg, that can cut up to 50mm in diameter.

SPECIFICATIONS

Model HM50TS (with swivel base)

Spindle MT2

Weight 16.5kg

Max Stroke 200mm

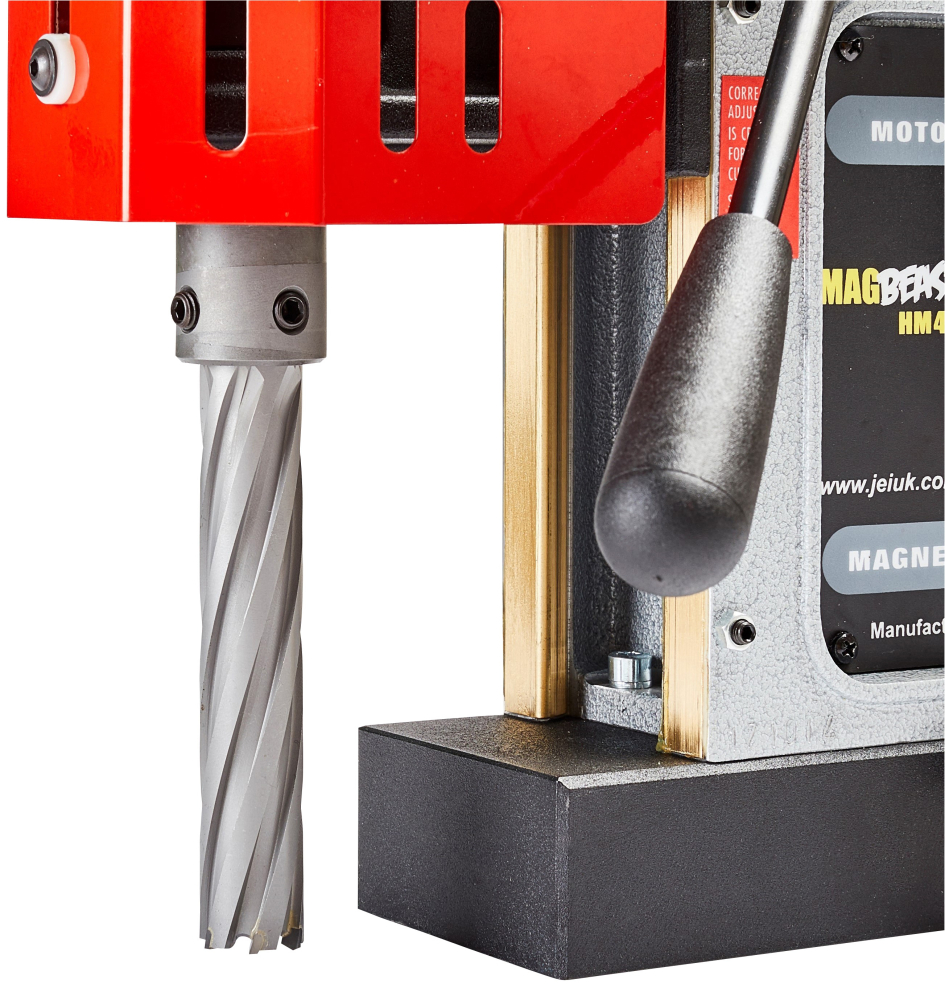

Cutter Capacity 50mm Ø x 4” depth of cut

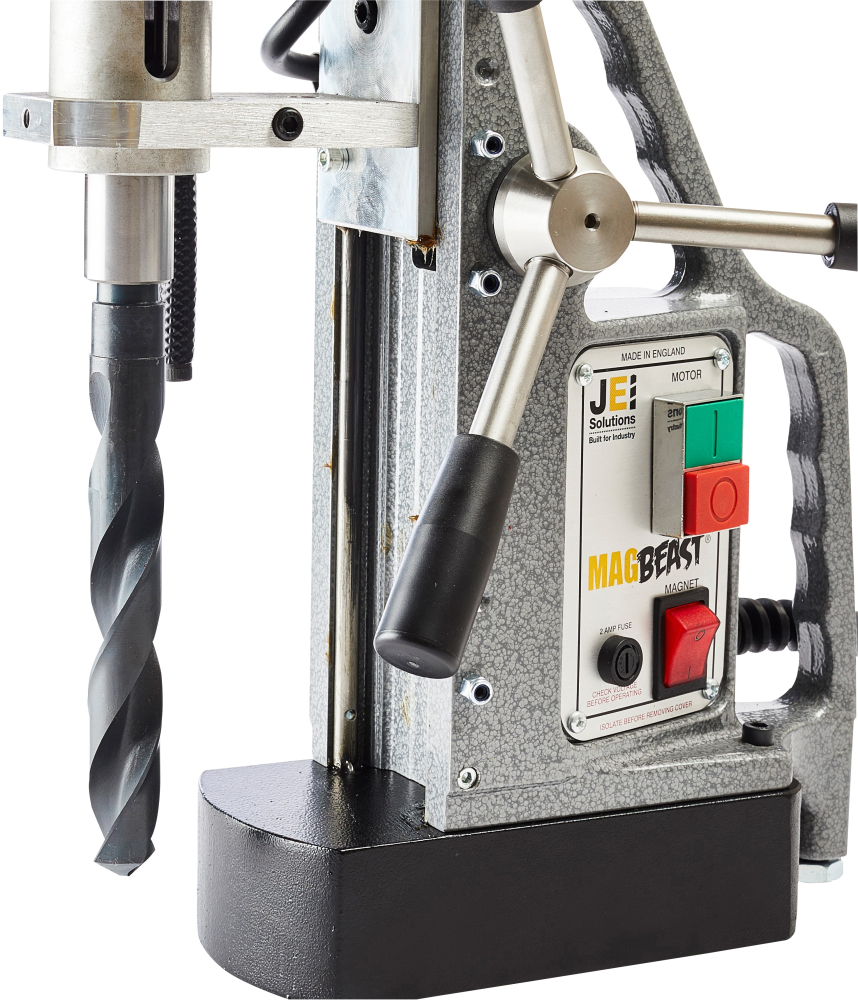

Twist Drill Capacity 13mm with 2MT Chuck ~ 23mm with 2MT Twist Drill

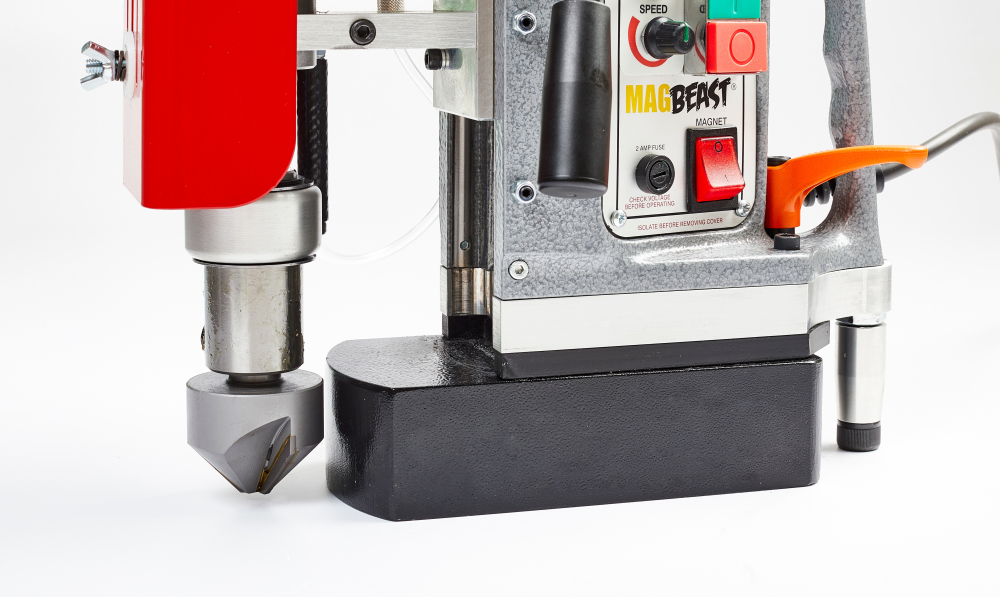

Countersink Capacity 40mm

Tapping Capacity M20

Reaming Capacity 22mm (19 mm shank)

Motor 1150 W (110 V) 1250 W (240 V)

RPM 2 Variable Speeds, 180–430, 100–250 RPM
