JEI MiniBeast Ratchet Handle Drilling Machine 240V

Stock Code: PTJM201240RT
MPN: DRILL-19042RT

Descriptions

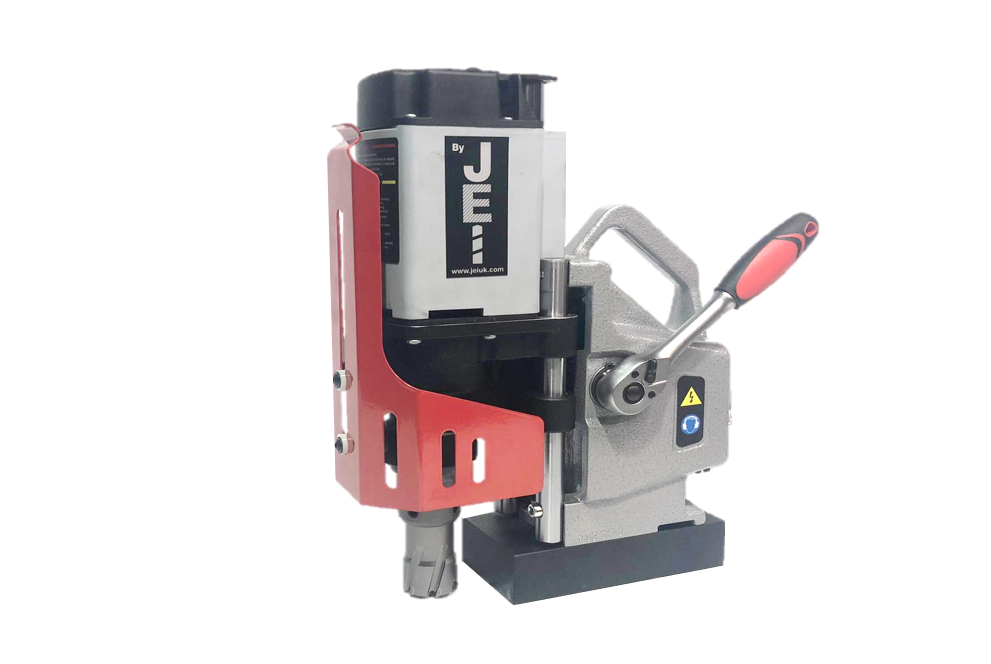

A compact and powerful magnetic drilling machine with a ratchet handle system, designed to enable simpler drilling.

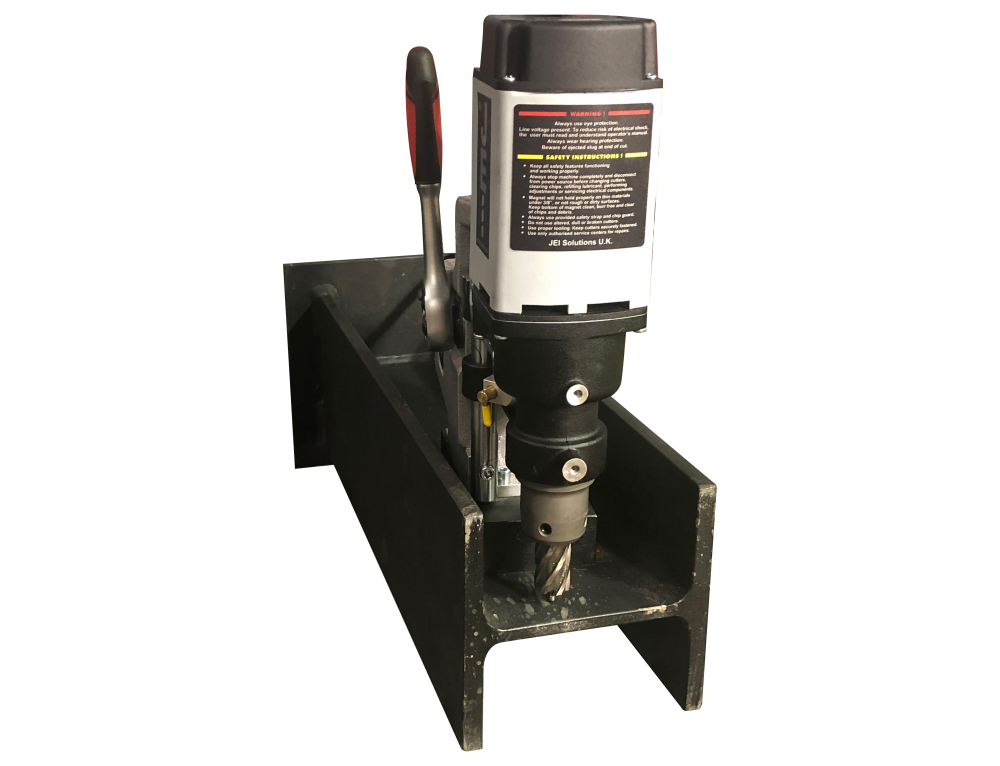

Extra compact operation only 110 mm* wide - providing the ability to use the machine in close corners of beams and upstands. *width without ratchet extension (provided but not necessary with most applications).

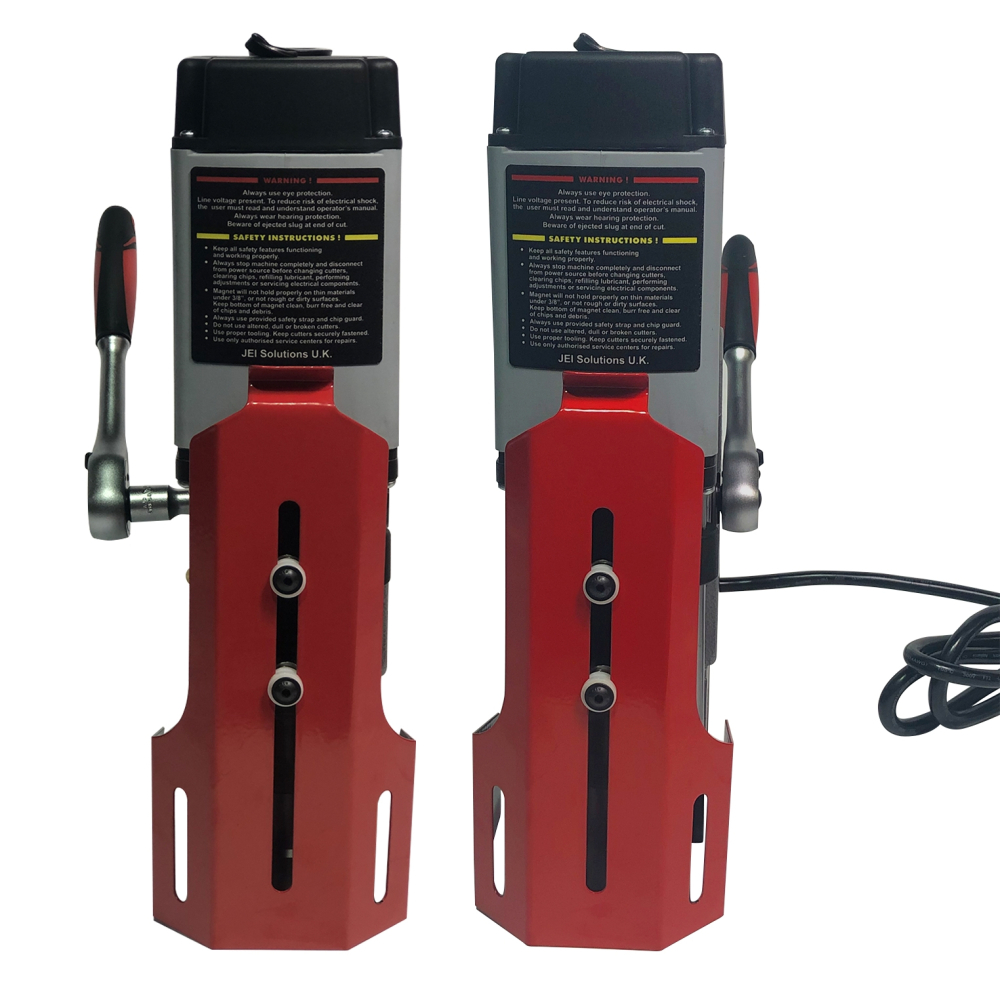

Fast & convenient left or right hand sided lever operation. No tools required to remove pinion or handles, simply remove ratchet and change sides.

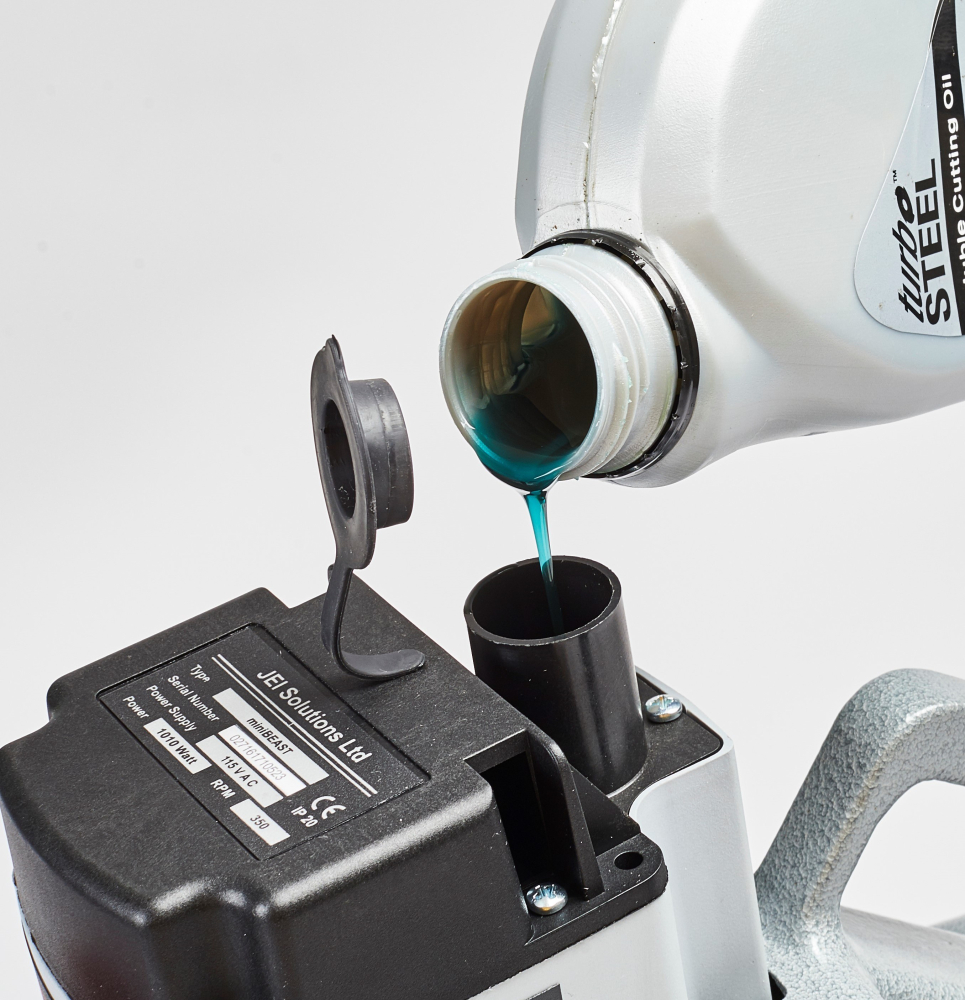

Internal coolant reservoir - ensuring maximum cutter life.

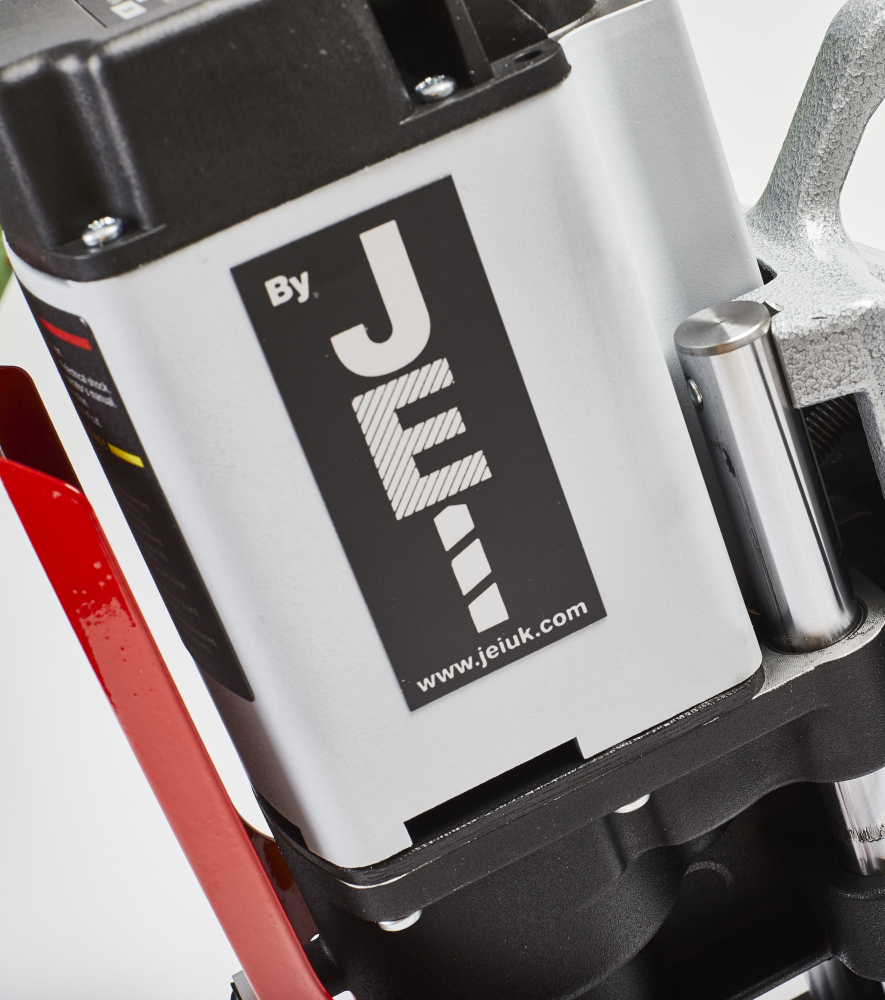

Self correcting slide rails - for maintenance free operation.
Light-weight - only 10kg.
Hidden motor cable - for added protection.

The MiniBeast™ RT offers an even more compact option to JEI's flagship MiniBeast™ magnetic drilling machine. With the use of a ratchet handle system, the machine can operate in more restricted spaces.

SPECIFICATIONS

Model MiniBeast™ RT

Weight 10 kg

Cutter Capacity 35mm Ø x 2" depth of cut

Twist Drill Capacity 12 mm with optional Turbo™ twist drills

Motor 1010 watts

Height Min/Max 307 / 377

Length 260 mm

Width 110 mm ((without guard or ratchet extension)

RPM 1 Fixed Speed (no load 520 RPM, loaded 350 RPM)

Magnetic Base Dimensions 160 mm x 80 mm

Magnet Deadlift (on 25mm plate) 980 kg on 1" Plate (9600 N)
