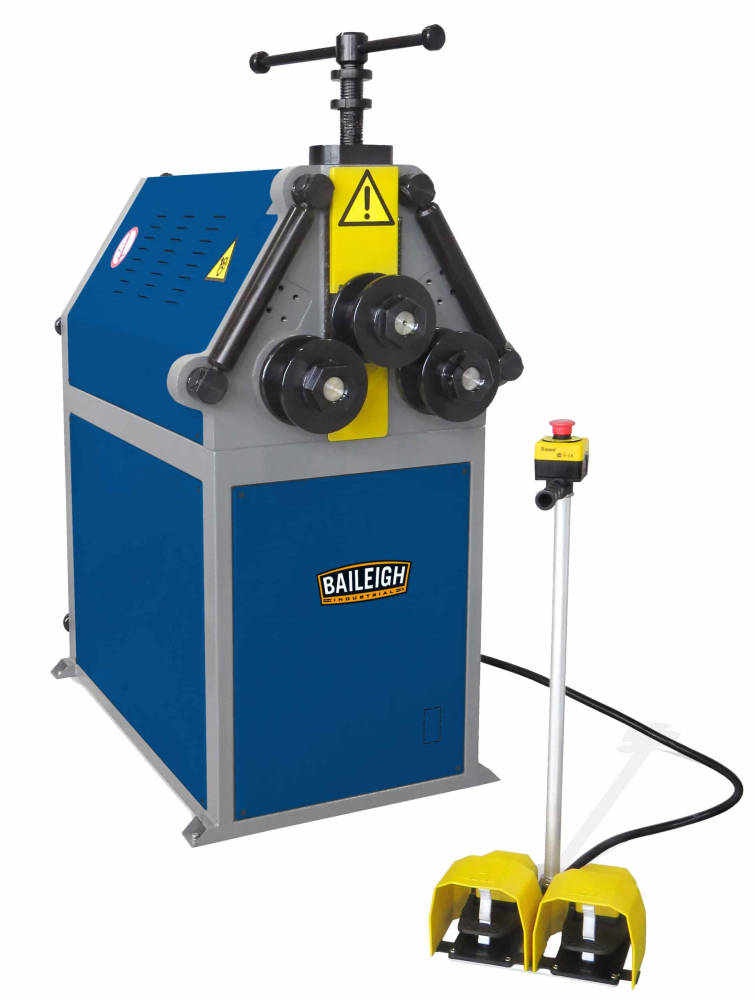

Baileigh R-M60 Manual Roll Bender

Stock Code: R-M60
MPN: R-M60

Descriptions

The R-M60 is the newest member of the Baileigh Industrial roll bender line. It has a 2″ schedule 40 pipe capacity, which is impressive for a manual top shaft, two driven roll machine. To achieve this type of capacity, the R-M60 uses a variable speed inverter that is overload protected. This allows the operator to fine-tune the rolling speed for each material.

It can be operated both the vertically for smaller rolling projects, as well as horizontally on its back, for large rolling projects, as there are feet on the bottom and back of the machine.

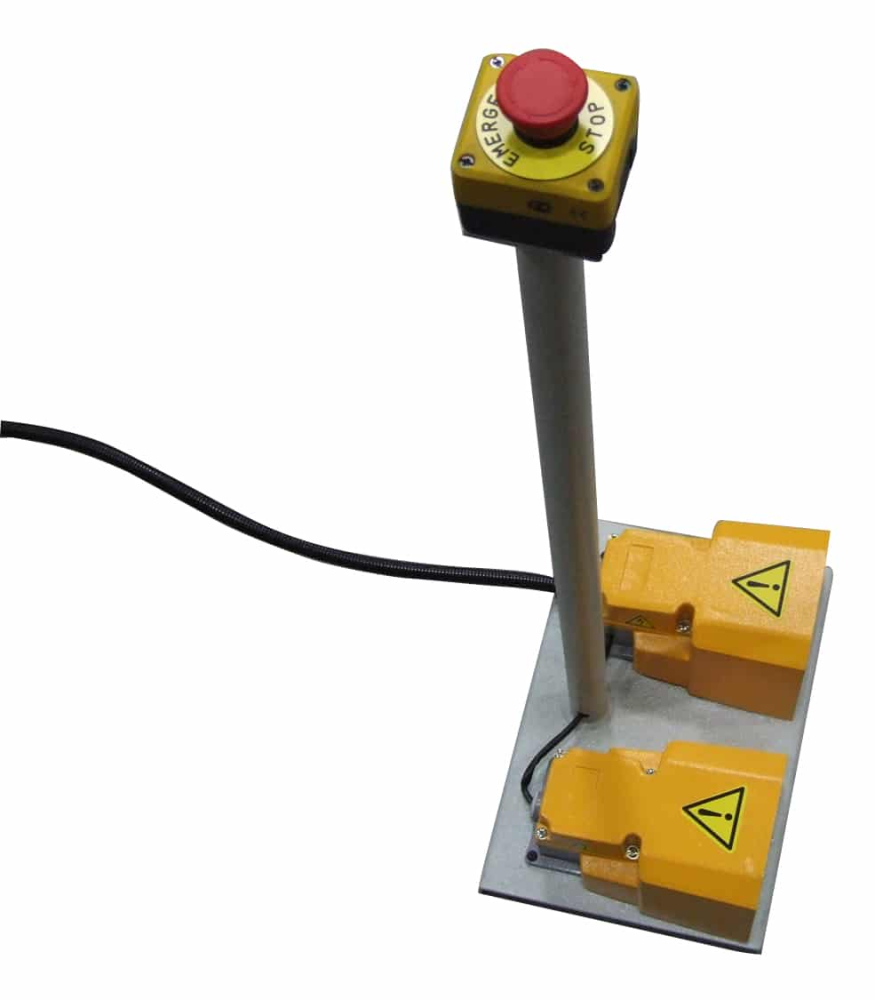

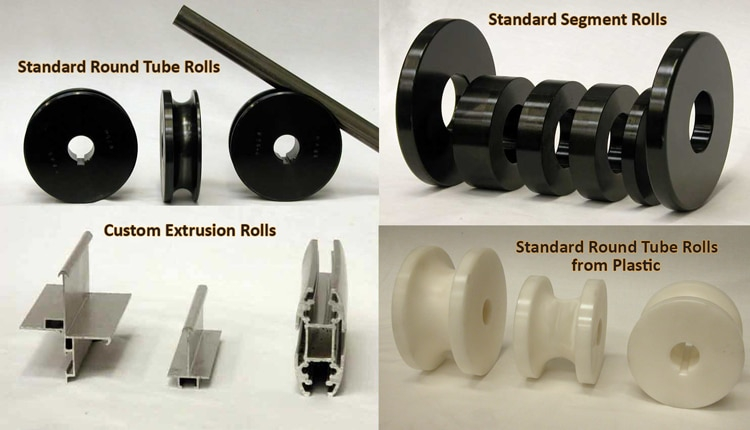

The R-M60 roll bender comes standard with foot pedal controls, segment rolls, and lateral roll guides to keep the material from twisting during the bend. The top roll position is manually controlled with the use of a large ratchet for more leverage, and the position is indicated on a scale for repeatable bends every time. Optional rolls can be purchased for different profiles like tubing, pipe, angle iron and much more.

Foot pedal operation
63mm Ø 3mm round tube capacity
Single pinch
Three driven rolls

Specifications

Item Number R-M60
Country of Manufacture Portugal
Driven Rolls 3
Roll Adjustment Manual
Angle Iron Capacity Size: 50 (5) mm / Min. Dia.: 711 mm
Shaft Diameter 45 mm
Shaft Center Distance 242 mm (lower rolls)
Upper Roll Dia. 148 mm
Lower Roll Dia. 148 mm
Motor 1.5 hp
Pinch Single
Power 220V / 1-phase
Shipping Weight 453 kgs.
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength Mild Steel.
*Optional Tooling Some applications may require optional tooling.
Speeds 5754
Shipping Dimensions (Inches) 1524 x 1118 x 1727 mm
