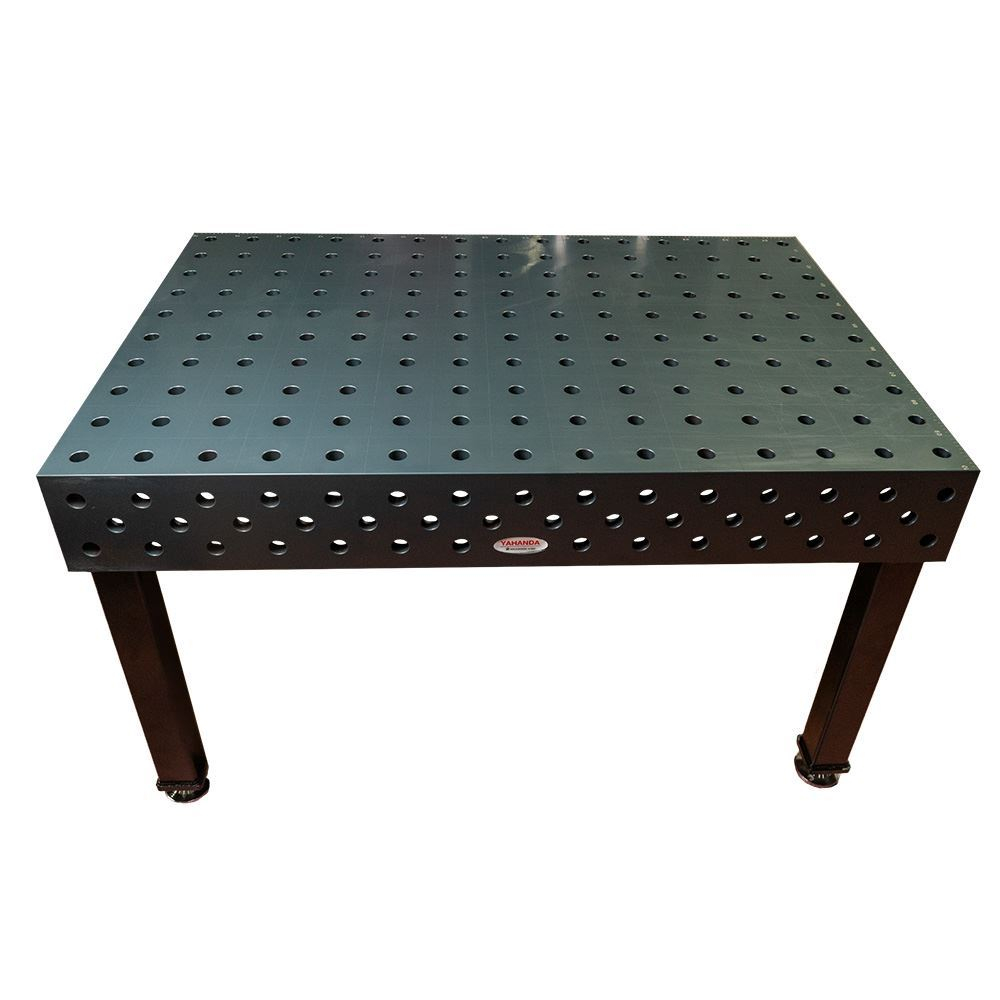

YAHANDA D28-3D Welding Table 1500mm x 1000mm x 200mm

Stock Code: WTYYHD28S1510N
MPN: YHD28S1510N

Descriptions

YAHANDA Precision Machined 3D Welding Table Fixture

Enhance precision, efficiency, and repeatability in every welding and fabrication task with our advanced 3D Welding Table Fixture. Designed for professional metalworking and heavy-duty fabrication, this table provides maximum versatility with five fully usable surfaces — one top and four sides — allowing complete freedom for complex setups and multi-angle operations.

Key Features

Five precision working surfaces (1 top + 4 sides) for 3D clamping and positioning versatility

D28 modular system suitable for small and large welding fixtures

Constructed from 2311 tool steel for superior strength and dimensional stability

Plasma nitride surface coating provides exceptional resistance to wear, corrosion, abrasion, and scratching

Hardness rating: HV450–550 (Vickers) for long-lasting durability

Table thickness: 25 mm solid precision-ground plate

Reinforced internal rib design ensures high rigidity and load capacity

Chamfered edges, corners, and boreholes for smooth handling and safety

Integrated millimeter measurement scales on two sides for accurate positioning and alignment

D28 grid pattern (100 x 100 mm) — compatible with a wide range of modular accessories

Extensive accessory range for clamps, stops, angles, and locating tools
