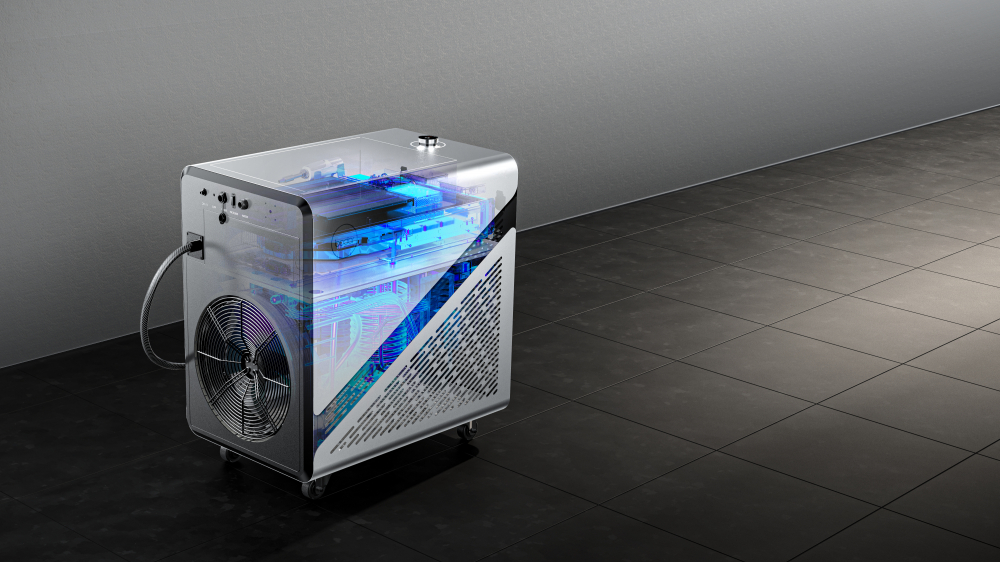

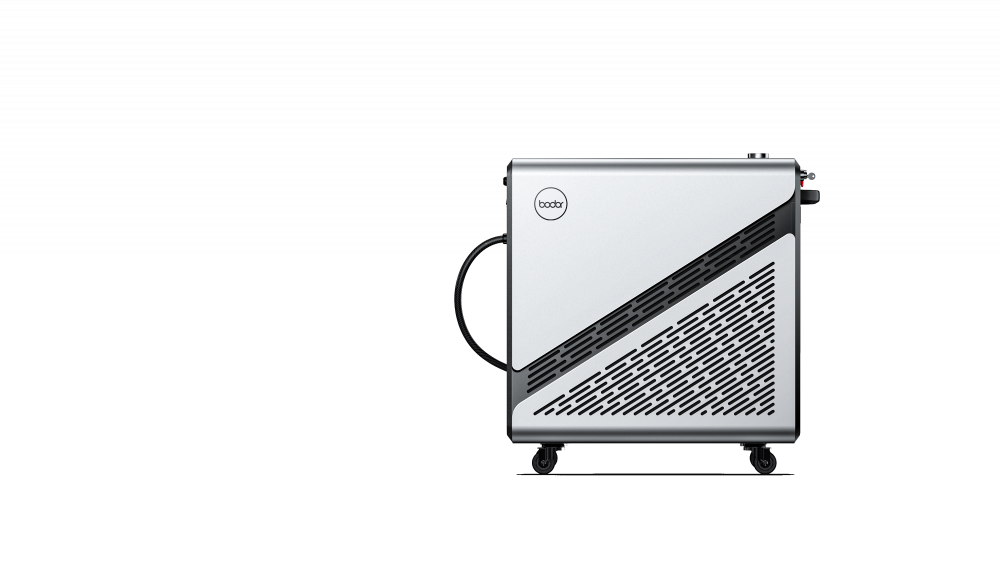

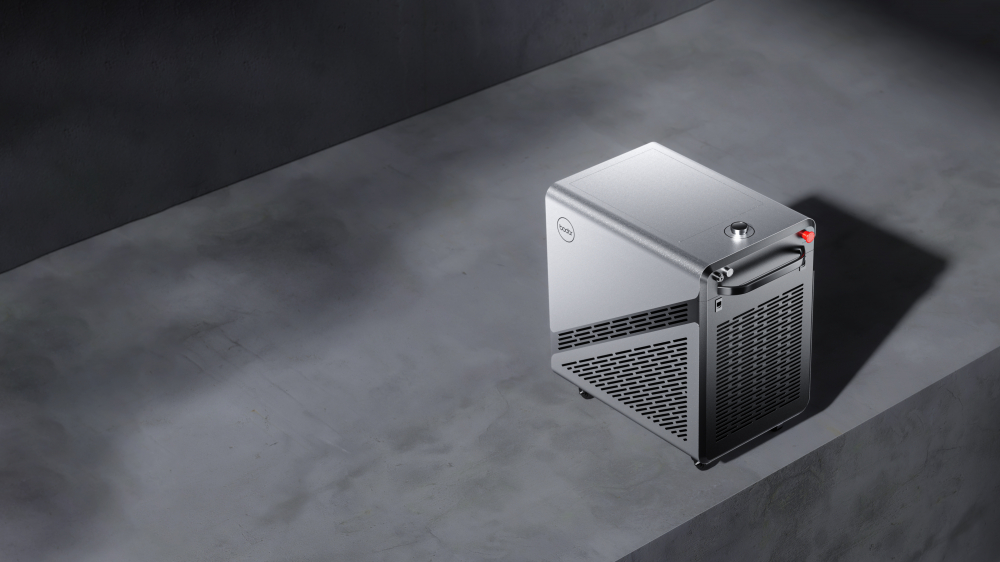

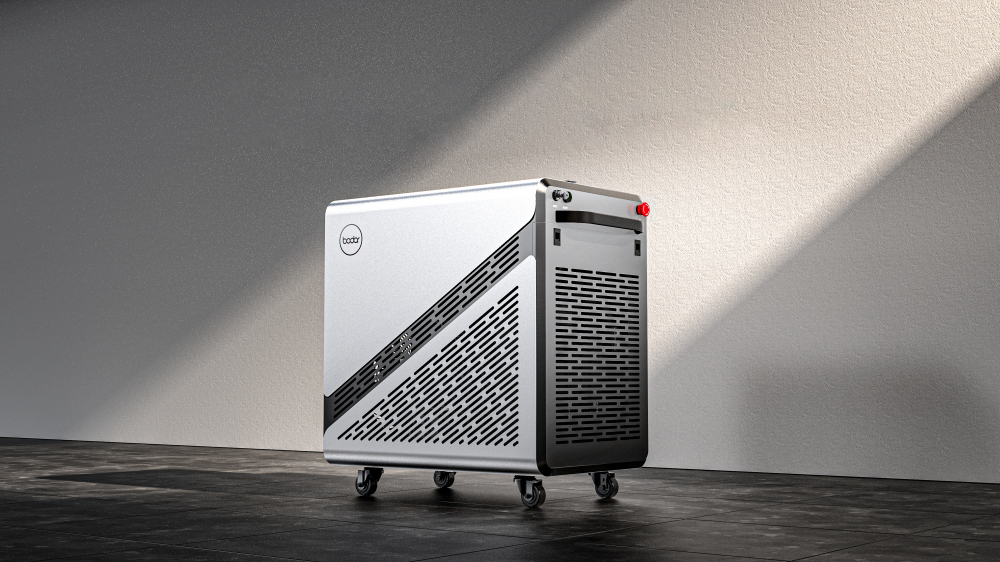

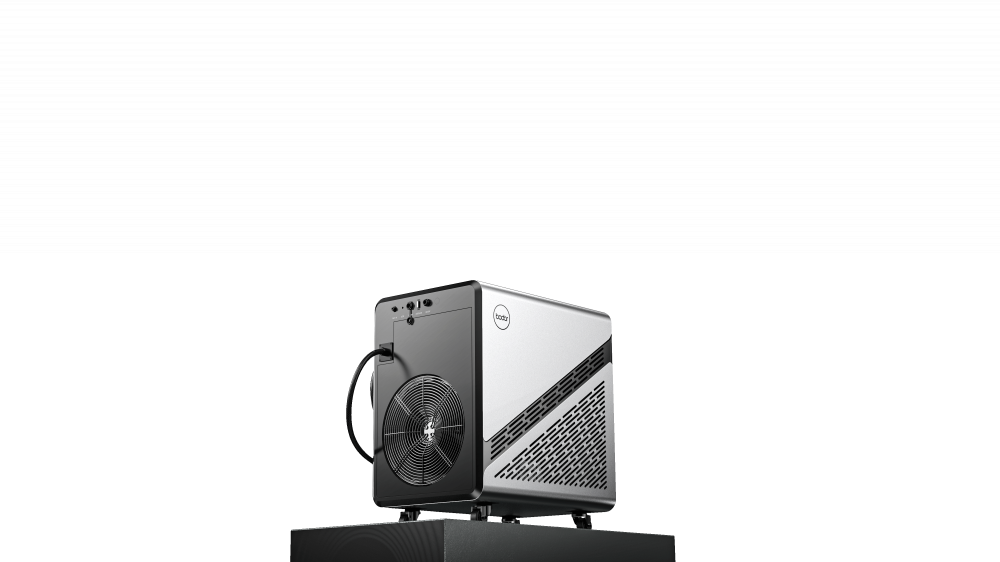

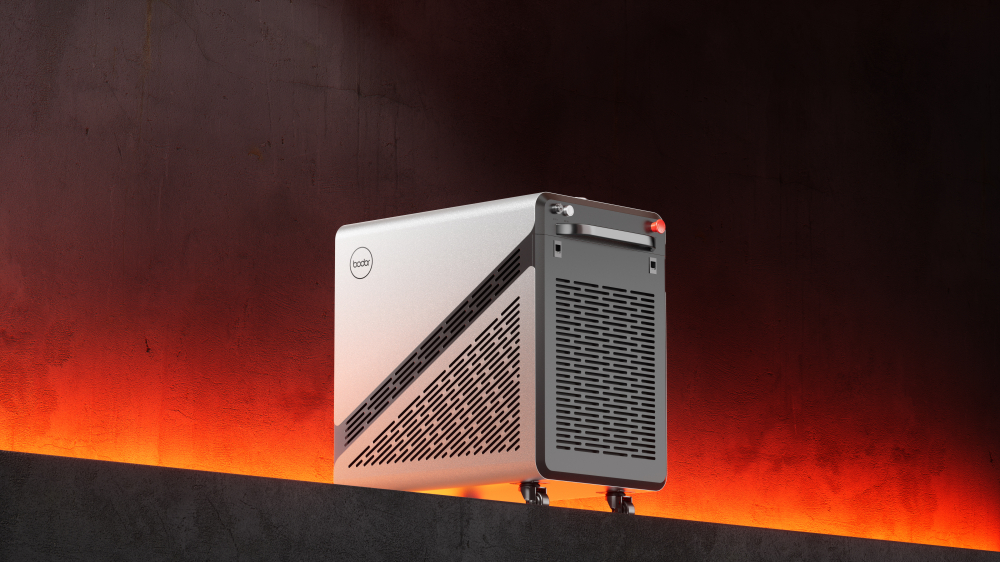

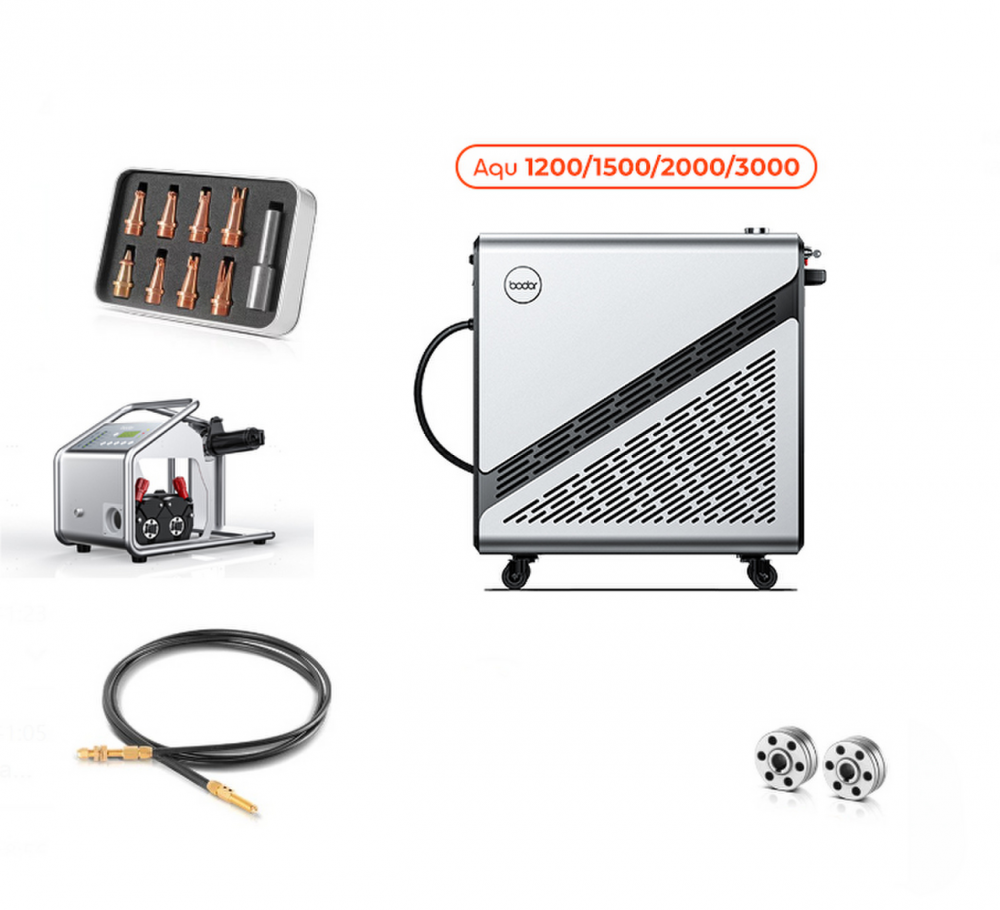

Bodor HandHeld AQU 2000 Laser welder Cleaner and cutter 6mm capacity

Stock Code: WMBLAQU2000
MPN: AQU2000

Descriptions

The Bodor Aqu 2000 handheld laser welder offers diverse powers and outstanding performance. Four power levels (1200W, 1500W, 2000W, and 3000W) can achieve a maximum penetration depth of 4 mm, 5 mm, 6 mm, and 8 mm respectively, meeting various needs with different powers and creating an indestructible welding quality.

Each machine also has the capability to remove rust, paint and Millscale from various materials with an adjustable cleaning width up to 85mm wide.

	AQU 1500	AQU 2000	AQU 3000
POWER OUTPUT	1500W	2000W	3000W
WELDING THICKNESS	MILD STEEL & STAINLESS STEEL 5mm	MILD STEEL & STAINLESS STEEL 6mm	MILD STEEL & STAINLESS STEEL 8mm
COOLING METHOD	WATER COOLED	WATER COOLED	WATER COOLED
WEIGHT	140kg	155kg	170kg
DIMENSIONS	850mm x 625mm x 885mm	850mm x 625mm x 885mm	960mm x 625mm x 885mm

Small Core Fiber

Aqu uses small core fibres to deliver superior beam quality and enhanced depth performance at the same power.

Self Developed High-Converting Light Source

Aqu reduces heat while providing a continuous high energy beam though Bodor self developed high converting light source.

Optimized Manufacturing

From component selection and design optimization to fiber connection and beam quality control, excellent manufacturing ensures the laser source delivers full power with exceptional beam quality.

FOR MORE INFORMATION SEE DOWNLOADS BELOW!
