Baileigh BS-712MS Horizontal Band Saw

Stock Code: BS-712MS
MPN: BS-712MS

Descriptions

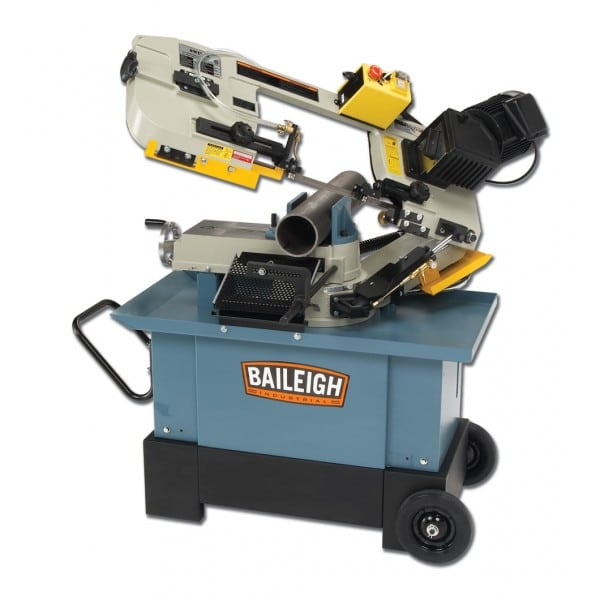

The BS-712MS is one of the most versatile horizontal bandsaws on the market. The design is based on the BS-712M, but with an added heavy-duty, cast iron swivel head to do its mitering instead of the vice. This feature allows for faster production times and less waste. The BS-712MS horizontal bandsaw is powered by 220 volts, 50hz, single phase, allowing it to be used just about anywhere, and much like the BS-712M It also features wheels to make it portable. In the horizontal position, the BS-712MS has a 178mm OD round, and a 178mm x 260mm rectangle capacity.

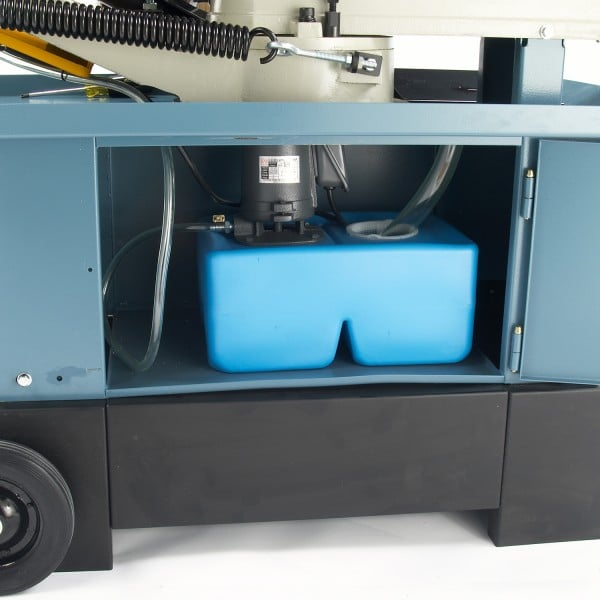

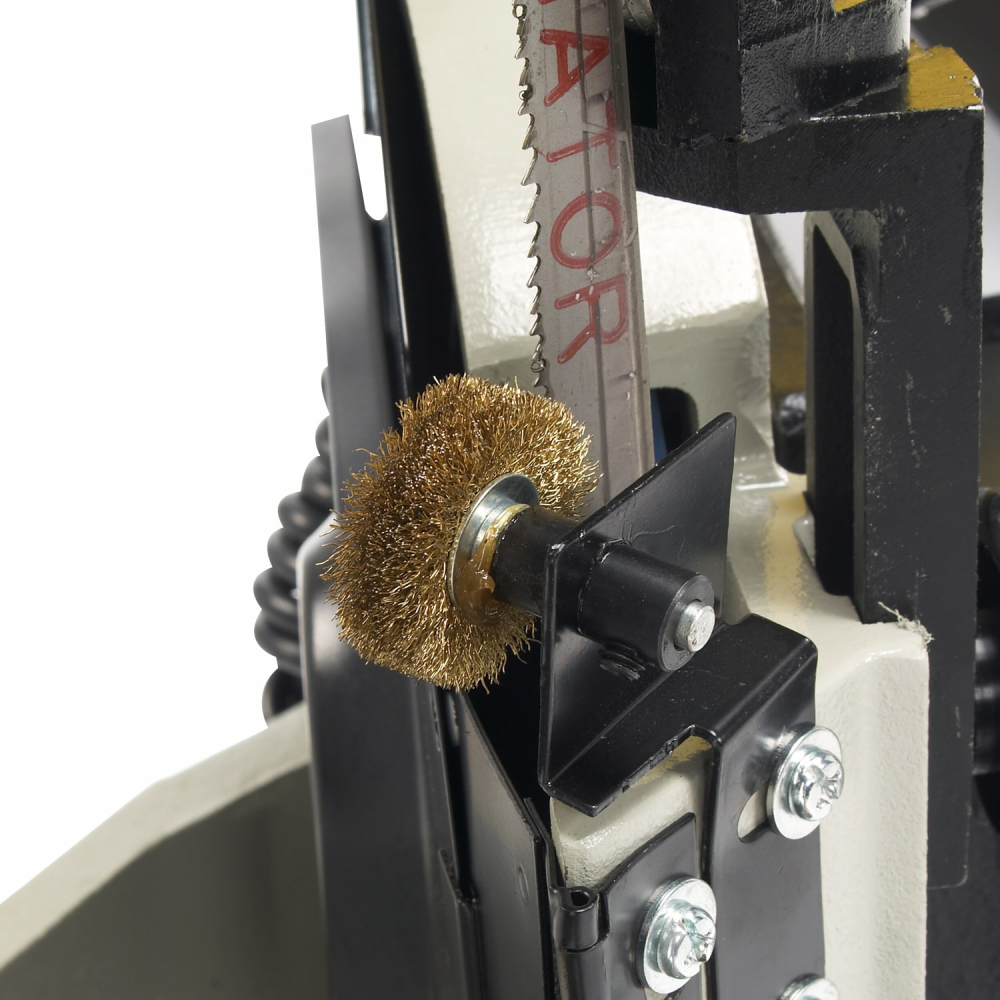

Like all Baileigh Industrial band saws the BS-712MS is built from the highest quality components. The head and bow of the BS-712MS are made from heavy-duty cast iron that has been precisely machined to exacting tolerances to ensure proper alignment is maintained during the cutting process. A pair of adjustable guides attached to the heavy-duty head, along with eight sealed ball bearings to help align the blade, help increase the life of the blade. Add a chip removal brush and a flood coolant system and you have one great machine.

177mm round capacity

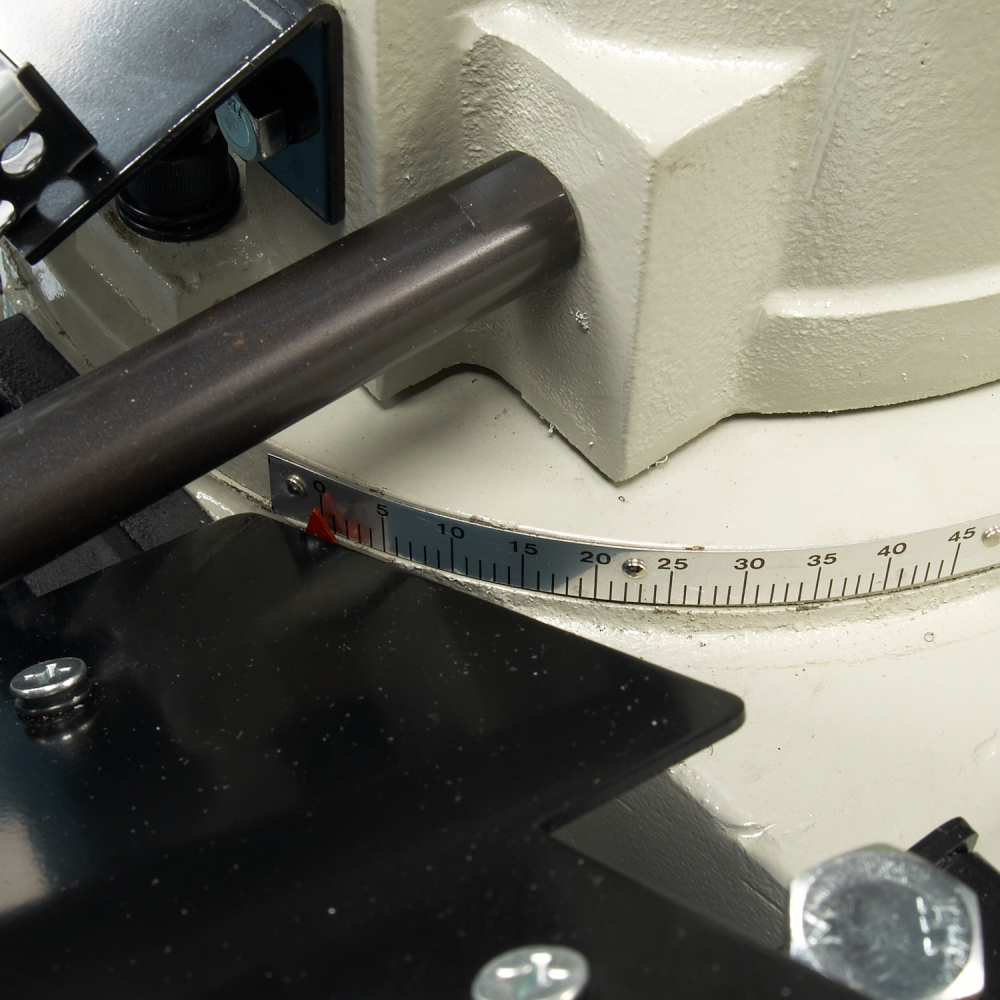

0° – 45° mitre

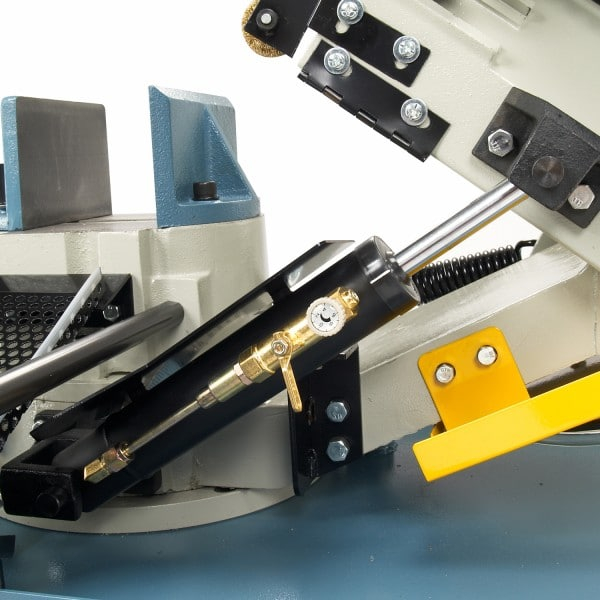

Hydraulic descent

Specifications

Item Number BS-712MS
Country of Manufacture Taiwan
Return Manual
Miter Adjustment Swivel Head
Miter Angle 1 45°
Motor 1.5 kW
Capacity Rectangular 90° x 45° 177 x 259 mm x 119 x 104 mm
Capacity Round 90° x 45° 177 mm x 110 mm
Table Height 584 mm
Blade Guide Roller
Blade Size (H x W x L) 19 x 1 x 2360 mm
Blade Speed 38 x 66 x 82 mpm
Descent Control Hydraulic
Drive Gear
Power 220V, 50Hz, 1-Phase
Shipping Weight 181 kgs.
Shipping Dimensions (Inches) 1295 x 457 x 1067 mm
Dimensions L x W x H 1295 x 584 x 1092 mm
