Stock Code: BS-916M
MPN: BS-916M
£3,563.00 (exc VAT) per 1
£4,275.60 (inc VAT)
Quantity: - +

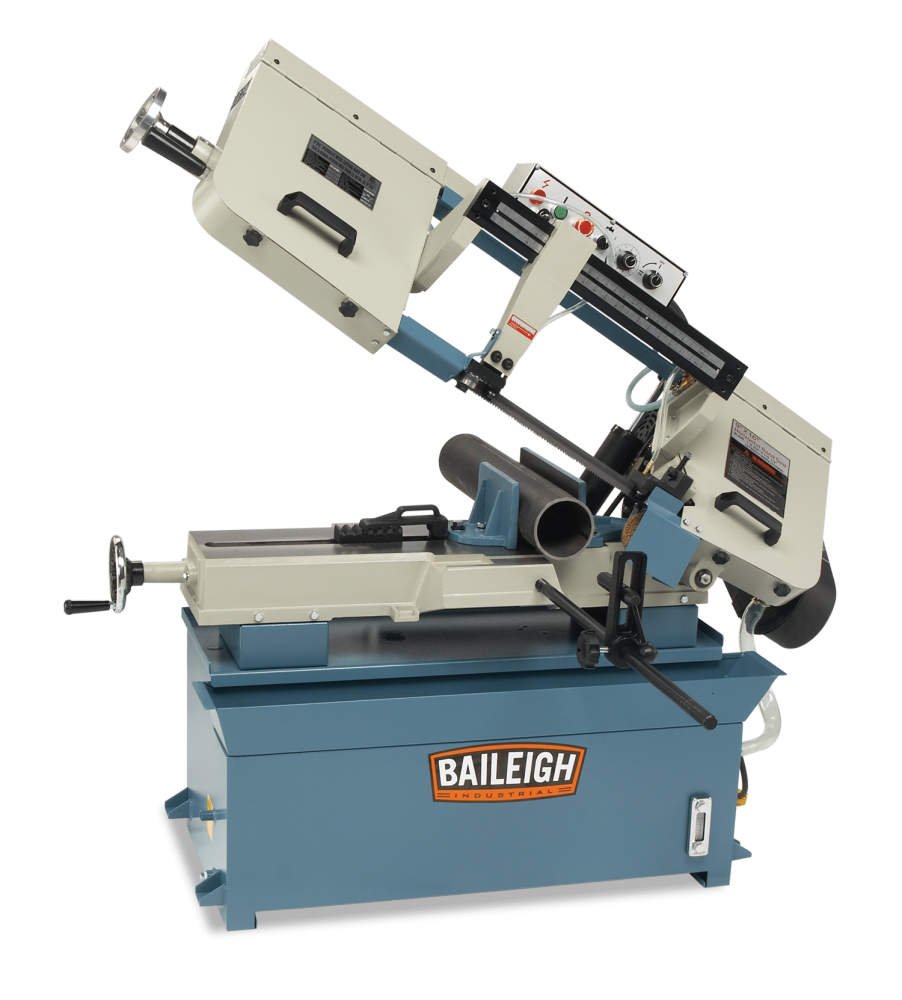

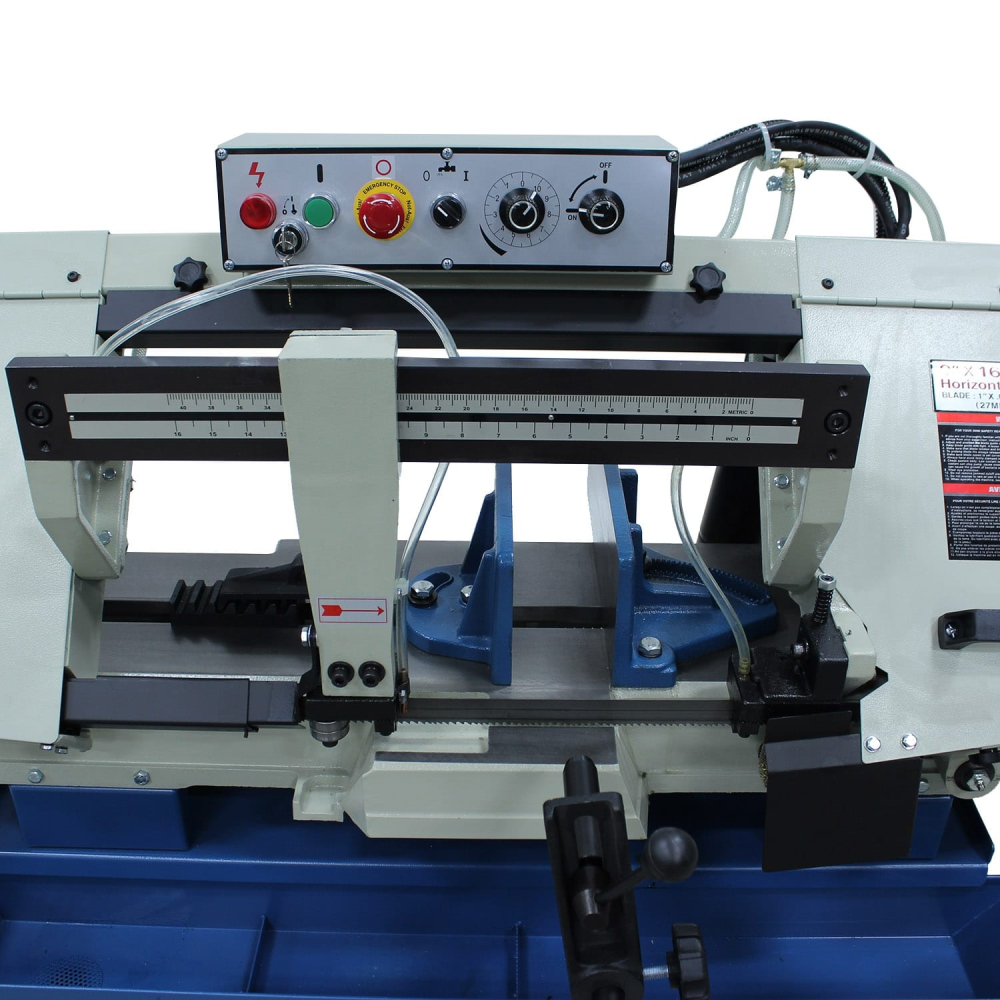

The BS-916M horizontal bandsaw is based on the BS-300M, but with a smaller footprint for those shops that have limited space. Like all Baileigh Industrial bandsaws the BS-916M is built to last, with a full cast iron bed and fully welded base it can take punishment. An easy to access control panel located on top of the bow makes operation on the saw a breeze. An automatic shut-off feature at the end of the cut, coolant system, and a blade tension device are also included. Baileigh Industrial designed this saw to take abuse and stay working hard for decades.

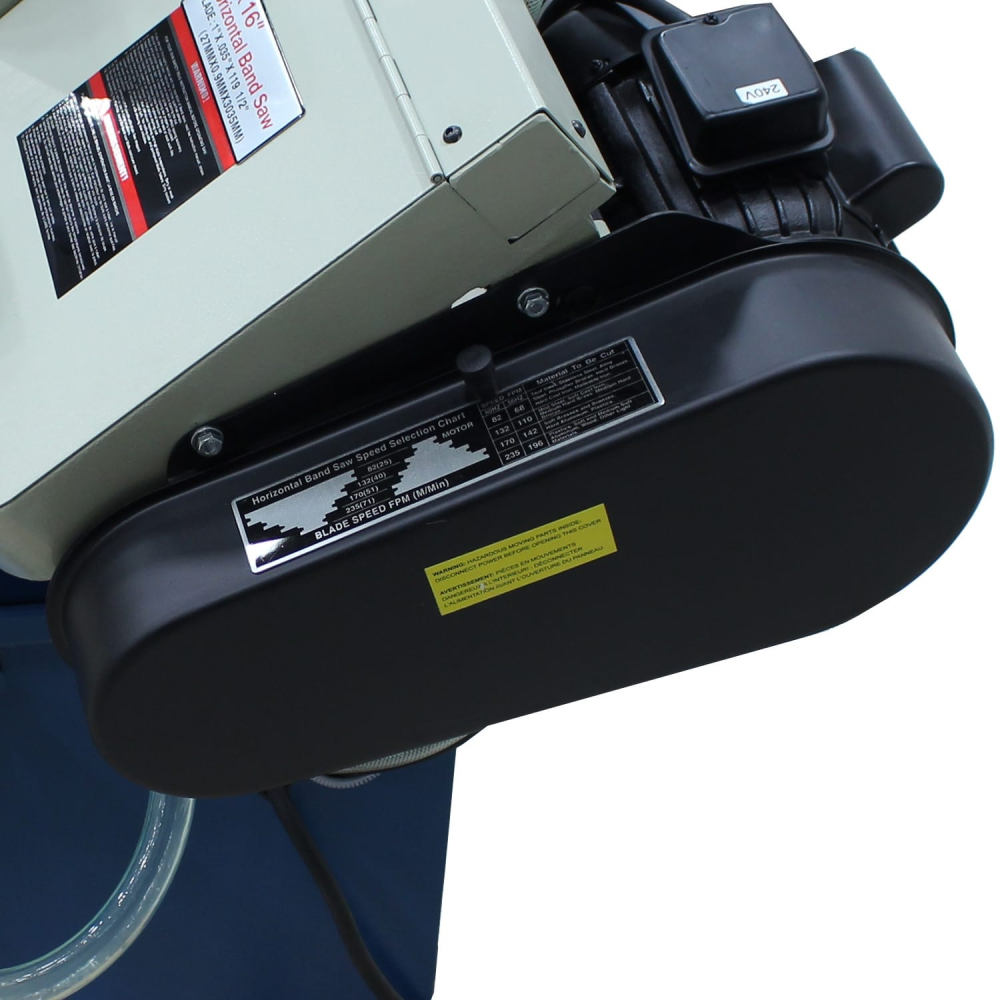

The powerful 1.5hp (1.2kw) motor is powered by 200 volt, 50hz, single phase power and features 4 blade speeds ranging from 25mpm to 72mpm. With its 8.75 round capacity at 90° the BS-916M is big enough to get most jobs done.

225mm round capacity

  • 0° – 45° mitre
  • Hydraulic descent

Specifications

Item Number BS-916M
Return Manual

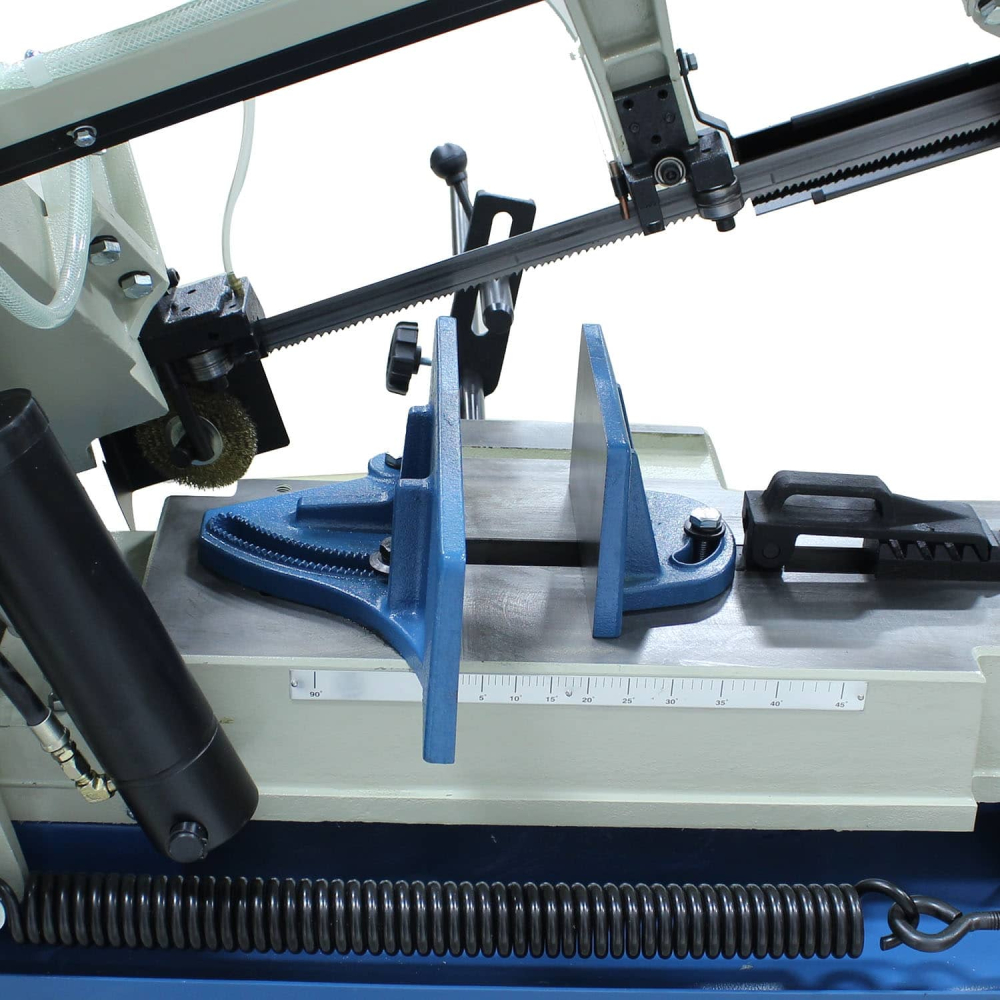

Miter Adjustment Vise
Miter Angle 0 45°
Motor 1.5 hp
Capacity Rectangular 90 x 45 x 45L 8.85″ x 13.5″ x 8.85″ x 6.5″
Capacity Round 90° x 45° 8.85″ x 6.5″
Capacity Square 90° x 45° 8.85″ x 6.5″
Table Height 24″

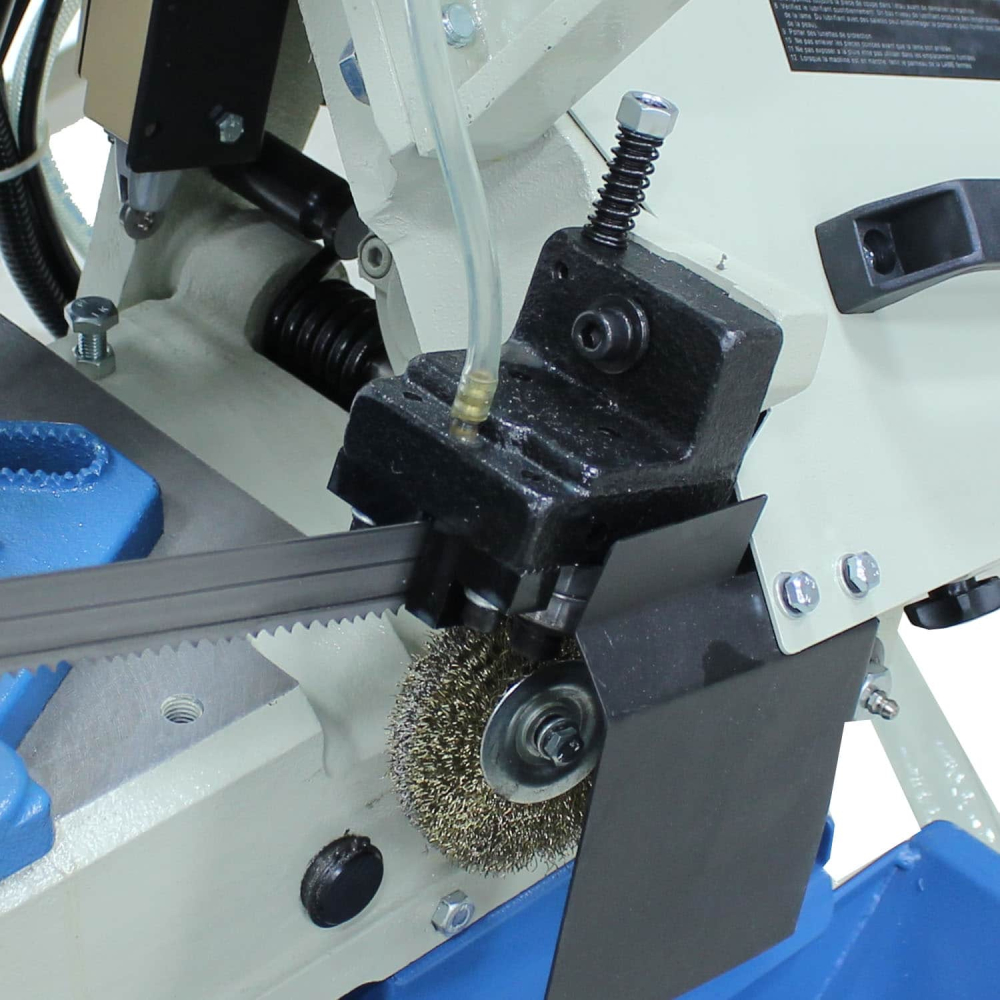

Blade Guide Roller
Blade Size 1″ x .035″ x 119.48″
Blade Speed (fpm) 82 x 132 x 170 x 235
Descent Control Hydraulic
Drive Belt x Pulley
Power 240V / 1-phase
Shipping Weight 770lbs
Shipping Dimensions (Inches) 69x44x46

MPNBS-916M
BRANDBaileigh
WEIGHT349kgs
ConditionNew
