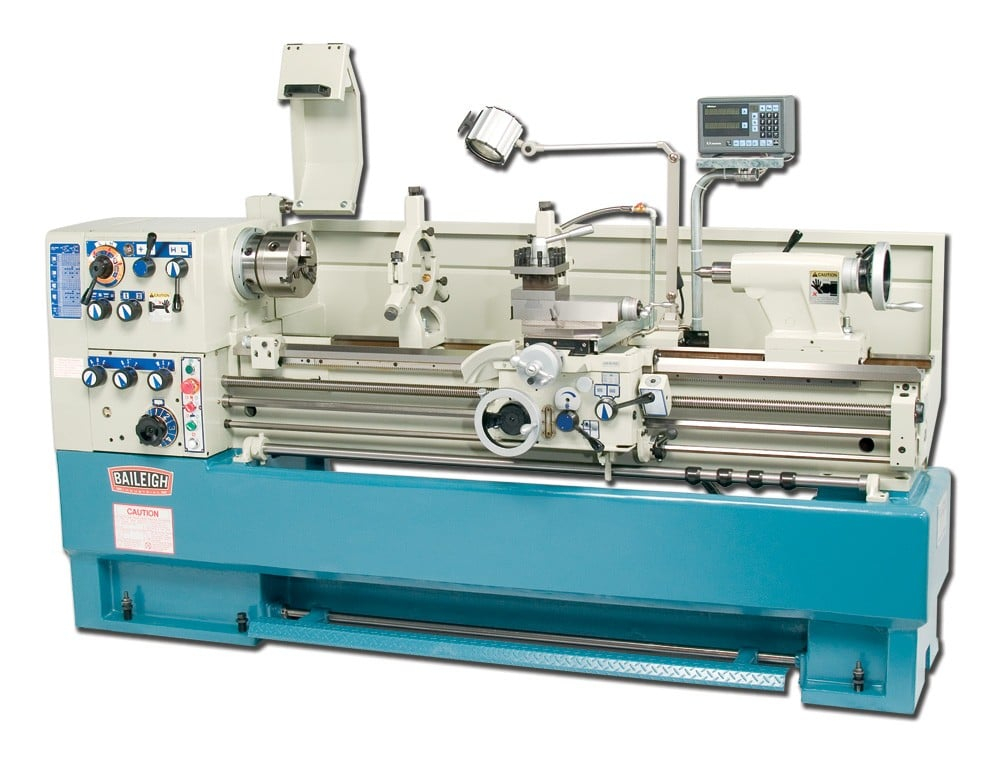

Baileigh PL-1860 Precision Lathe

Stock Code: PL-1860
MPN: PL-1860

Descriptions

The Baileigh Industrial PL-1860 lathe is a great investment that out performs other lathes in its class.

It is affordable, rugged, reliable and easy to operate.

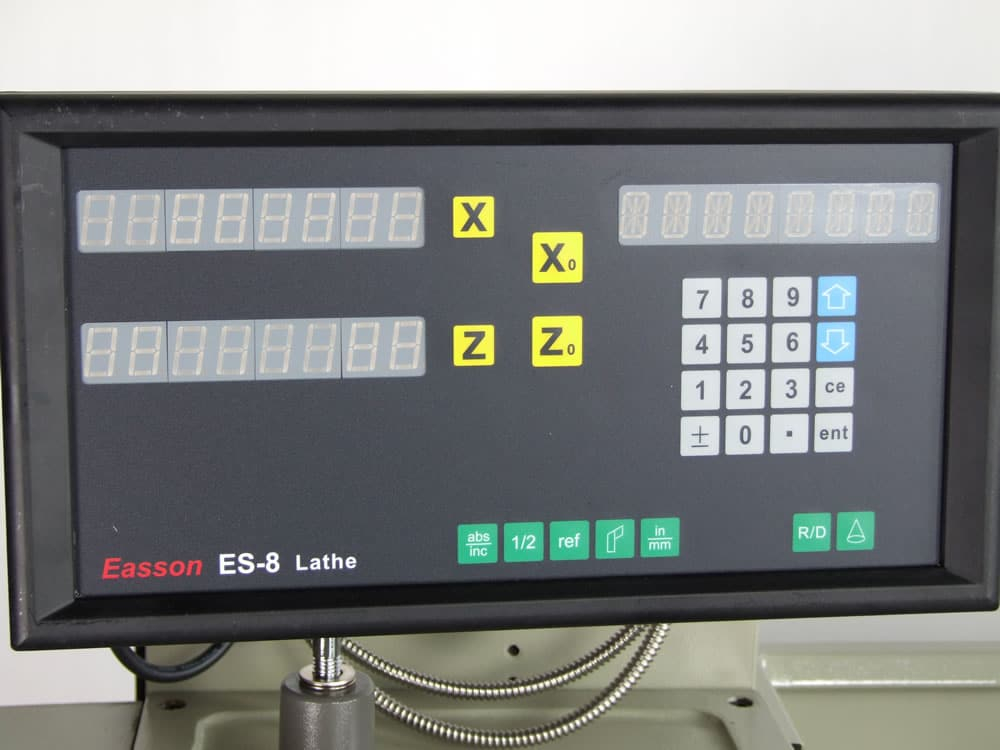

The PL-1860 includes a vast array of features and accessories as standard equipment. Things like the Mitutoyo® 2 axis digital readout system, 8″ 3-jaw universal chuck, 8″ back plate, coolant system, steady rest, follow rest, headstock chuck-guard with microswitch, micrometre saddle stop, rear splash guard, and halogen work light are all included.

Constructed from 100% cast iron, the PL-1860 engine lathe is built to last and is known for consistent performance and durability even under the most demanding work conditions. Precision ground and hardened ways on the PL-1860 are further protected by a Turcite-B® coating, which offers years of protection to the ways when under the most gruelling turning conditions.

The PL-1860 gear head lathe has 12 different speed combinations allowing for speeds between 80 and 2000rpm. A powerful 7.5hp motor allows for heavy cuts to be shaved off of the turned part. This allows for better turned surfaces, faster production, and longer tooling life.

Specifications:

Item Number PL-1860

Country of Manufacture Taiwan

Speed Range 31 2000 rpm

Speed Number 13

Spindle Bore 60 mm

Motor 7.5 hp

Threads Diametrical Qty Speed 33 / 4 32 D.P.

Threads Imperial Qty Speed 41 / 2 56 T.P.I.

Threads Metric Qty Speed 54 / .4 14 mm pitch

Threads Module Qty Speed 45 / .4 7 M.P.

Spindle Taper Sleeve Morse #4
