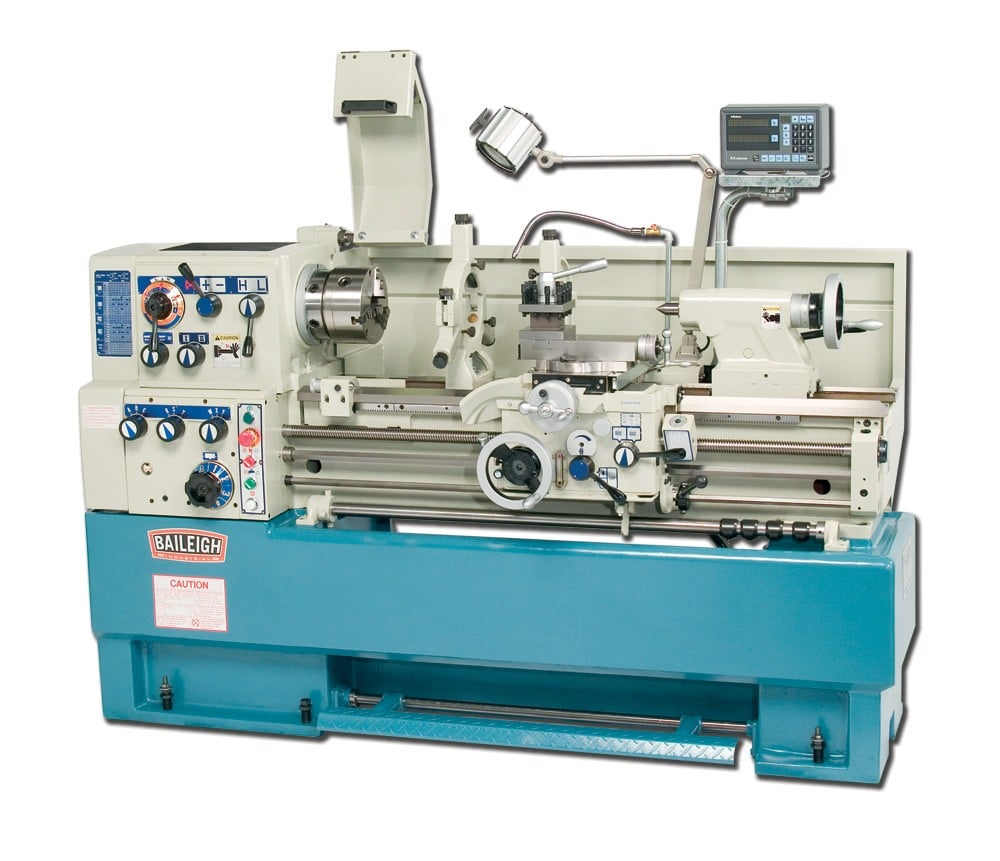

Baileigh PL-1640 Precision Lathe

Stock Code: PL-1640
MPN: PL-1640

Descriptions

The Baileigh PL-1640 metal working lathe is the perfect combination of size and power. This precision lathe features a 16 swing and 40 between centres and has features that will allow your shop to grow for years.

The PL-1640 is built to Baileigh industrials high standards and has everything that a machine shop could want. The PL-1640 has a full cast iron base that is integrated into the main frame of the lathe, making this one of the most rigid lathes on the market. It is powered by a 7.5hp motor and can turn between 30 to 2000rpm through its 12 speeds. The PL-1640 metal working lathe is built to withstand years of use in any metal working shop with its precision ground and hardened ways.

The PL-1640 comes with a factory installed Mitutoyo DRO (digital read-out) for making precise cuts, halogen light, a three jaw chuck, steady rest and follow rest. All this in one complete package.

Specifications:

Item Number PL-1640

Country of Manufacture Taiwan

Speed Range 31 2000 rpm

Speed Number 13

Spindle Bore 52 mm

Motor 7.5 hp

Threads Diametrical Qty Speed 33 / 4 32 D.P.

Threads Imperial Qty Speed 41 / 2 56 T.P.I.

Threads Metric Qty Speed 54 / .4 14 mm pitch

Threads Module Qty Speed 45 / .4 7 M.P.

Spindle Taper Sleeve Morse #4
