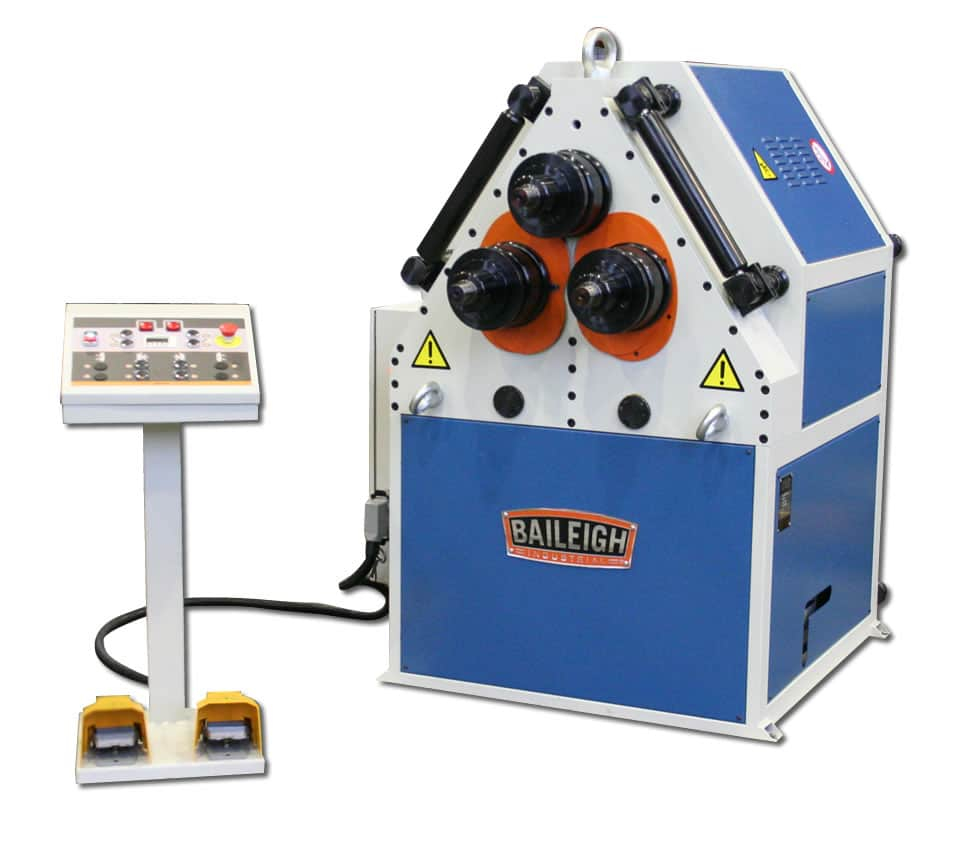

Baileigh R-H65 Hydraulic Roll Bender

Stock Code: R-H65
MPN: R-H65

Descriptions

The R-H65 is a great way to get into a double pinch roll bender.

The R-H65 double pinch roll bender is built using the same high-quality components as the rest of Baileigh Industrial's double pinch roll benders.

This machine has a capacity of 60mm x 4mm pipe and is the perfect size for most fabrication shops. The R-H65 is considered a double pinch roll bender because the top roll is fixed and the two bottom rolls operate on independently controlled hydraulic cylinders with encoders that communicate to the digital readout for exact positioning of each roll. The advantages of the double pinch are that it allows for pre-bending and post-bending of material that saves production time and material waste.

The R-H65 roll bender features an extremely ridged frame made of heavy, electro-welded steel plate allowing for no flex at full capacity.

A large 6.25hp hydraulic motor that runs on 400 volt, three phase power runs all the bending functions on this roll bender.

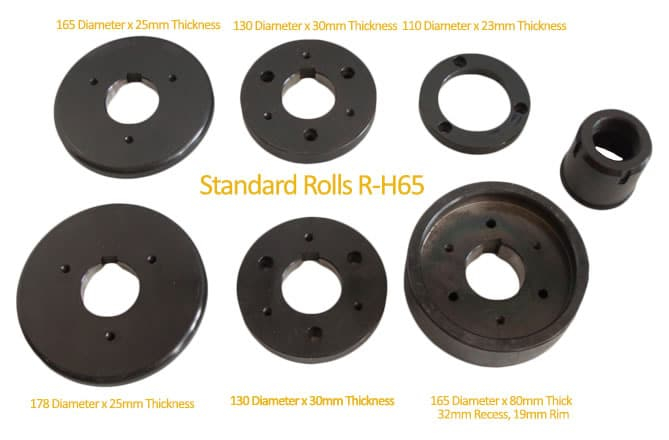

The Baileigh industrial R-H65 angle bending roll bender comes with a heavy-duty transmission that drives the rolls and comes with a set of segment rolls for doing all types of shapes and profiles.

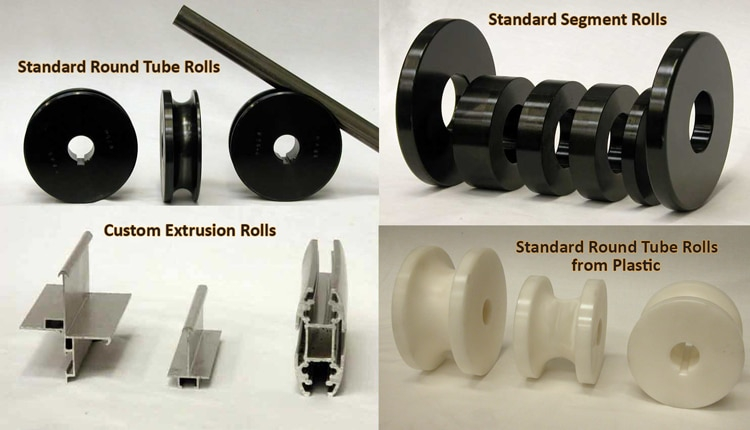

If your job requires specialised tooling, Baileigh Industrial can work with you to provide custom tooling.

Foot pedal operation
70mm Ø 2.16mm round tube capacity
Double pinch
Triple driven rolls

Specifications

Item Number R-H65
Country of Manufacture Portugal
Driven Rolls 3
Roll Adjustment Hydraulic
Pipe Capacity Size: 60 (4) mm / Min. Dia.: 889 mm
Round Tube Capacity Size: 63.5 x 3 dia. 1500
Square Tube Capacity Size: 51 (3) mm / Min. Dia.: 1,905 mm
Solid Round Capacity Size: 40 mm / Min. Dia. 813 mm
Flat Bar Easy Way Size: 101 (19) mm / Min. Dia.712 mm
Flat Bar Hard Way Size: 82.5 (9.5) mm/ Min. Dia.: 2,108 mm
Angle Iron Capacity Size: 51 (6.35) mm / Min. Dia.: 1,143 mm
Shaft Diameter 65 mm
Upper Roll Dia. 178 mm
Lower Roll Dia. 178 mm
Motor 6.5 hp
Pinch Double
Digital Readout Yes
Power 400V / 3-phase
Shipping Weight 1110 kgs.
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength Mild Steel.
*Optional Tooling Some applications may require optional tooling.
Speeds 5785
Shipping Dimensions (Inches) 1010 x 1290 x 1400 mm
Dimensions L x W x H 1524mm x 1524mm x 1727mm
