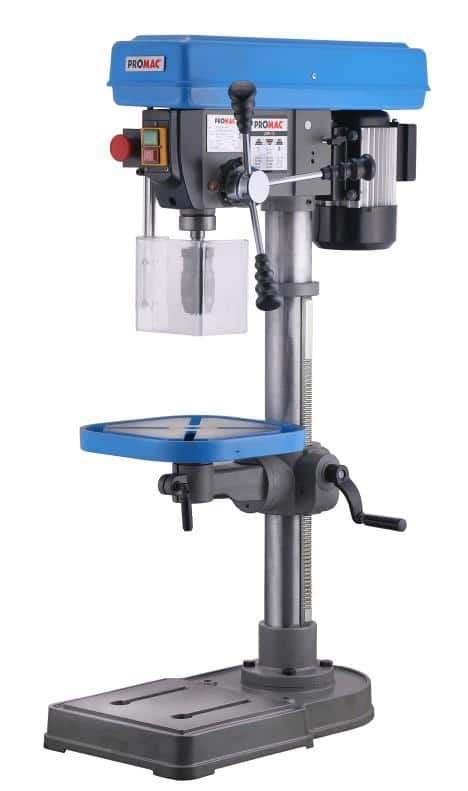

Promac 212B Benchtop Drill

Promac 212B Benchtop Drill

Stock Code: 212B
MPN: 212B
£401.63 (exc VAT) per 1
£481.95 (inc VAT)
Quantity: - +

Belt-type rotation speed change. With 16-mm auto-clamping chuck, transparent guard and emergency stop button. Switch with start-interlock coil. Cover with interlock safety switch. Drilling table with 4 T-slots swiveling. Table height adjustable via rack. Allows drilling with a wide range of tools. The machine is precision built. Qualified personnel will not find limits in the simplicity of its use. Drilling is carried out by the manual lowering method of the spindle. The hollow column and aged grey cast iron head both give this machine great rigidity against deformation and guarantees high working precision. Tilting table up to 45° right and left.

  • 230v Single phase 0,37kW motor
  • Drilling capacity 16mm
  • Morse taper MT2
  • Speed range 230 – 2550rpm

Specification

  • Motor (V/kW) 230/0.37
  • Morse taper MT2
  • Cutting capacity for steel (ø-mm) 16
  • Spindle stroke (mm) 80
  • 12 Speeds
  • Speed range (min-1) 230–2’550
  • Weight (kg) 55
  • Table dims 269 x 269mm
  • Table T-Slots T12
  • Colum to spindle 168mm
  • 2 Year warranty

MPN212B
BRANDPromac
WEIGHT55kgs
ConditionNew
