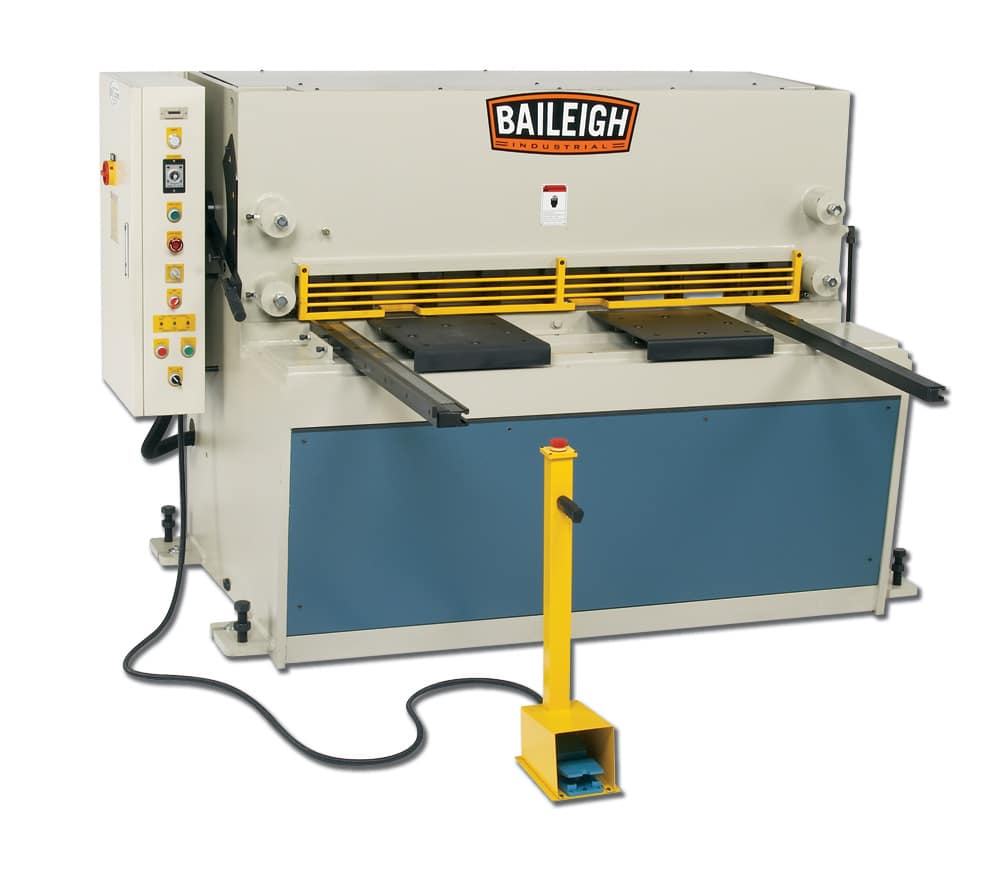

Baileigh SH-5203-HD Hydraulic Guillotine

Stock Code: SH-5203-HD
MPN: SH-5203-HD

Descriptions

The SH-5203-HD from Baileigh Industrial is a heavy-duty shear that can take anything you can throw at it.

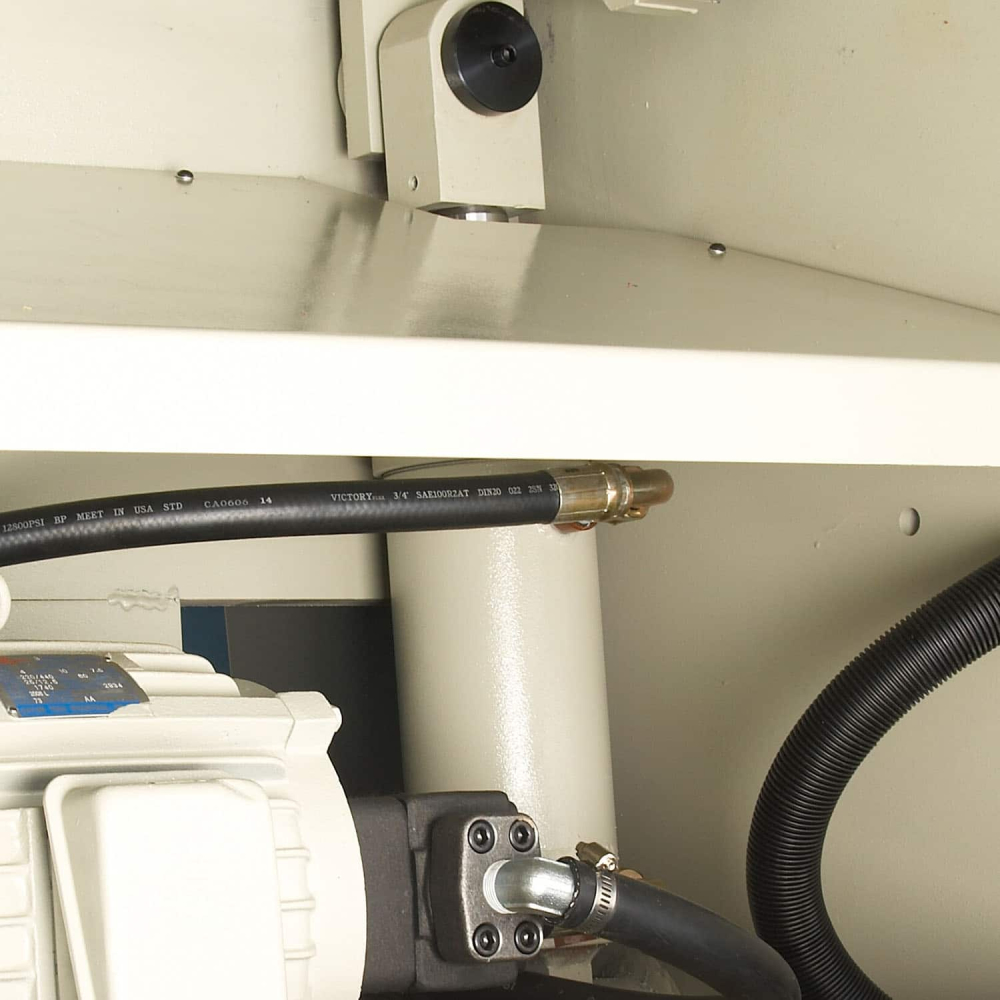

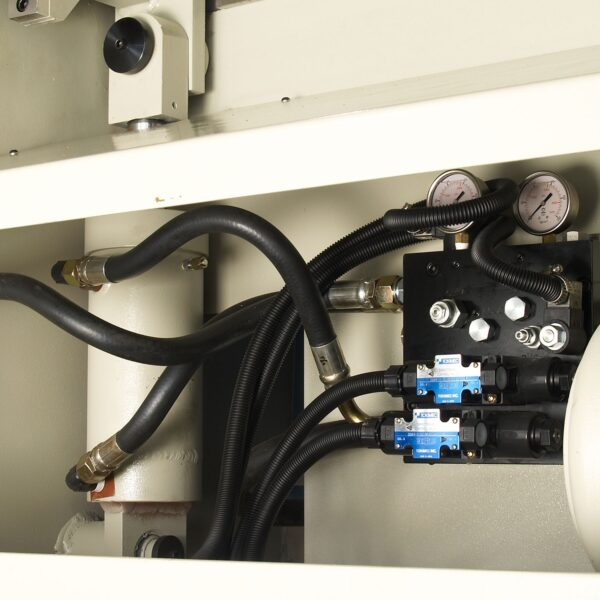

The industrial-grade hydraulic system is designed to shear up to 6.5mm mild steel over its whole length of 52. Designed like the rest of the Baileigh Industrial shear line, the SH-5203-HD uses only the best components and building practices to ensure a machine that will last for decades. The frame is made from fully welded plate steel for increased rigidity and prolonged blade life. Blades can be flipped and sharpened many times saving money.

Operation of the SH-5203-HD is very simple; just push the foot pedal and the hydraulic hold downs secure the material to ensure a straight cut. The blade drops and shears the material. A control panel allows for rake adjustment, jog/run/stop controls, production counter, and much more. This heavy-duty shear can be run in the jog mode, single cycle mode, or continuous cycling mode. There is also an easy to use adjustable blade gap lever that can be changed in seconds when changing thickness. A convenient shadow line position rounds out the feature list of the SH-5203-HD.

6.5mm shear capacity (mild)
1321mm shear length
16 – 24 strokes per minute
4 sided blades

Specifications

Item Number SH-5203-HD
Country of Manufacture Taiwan

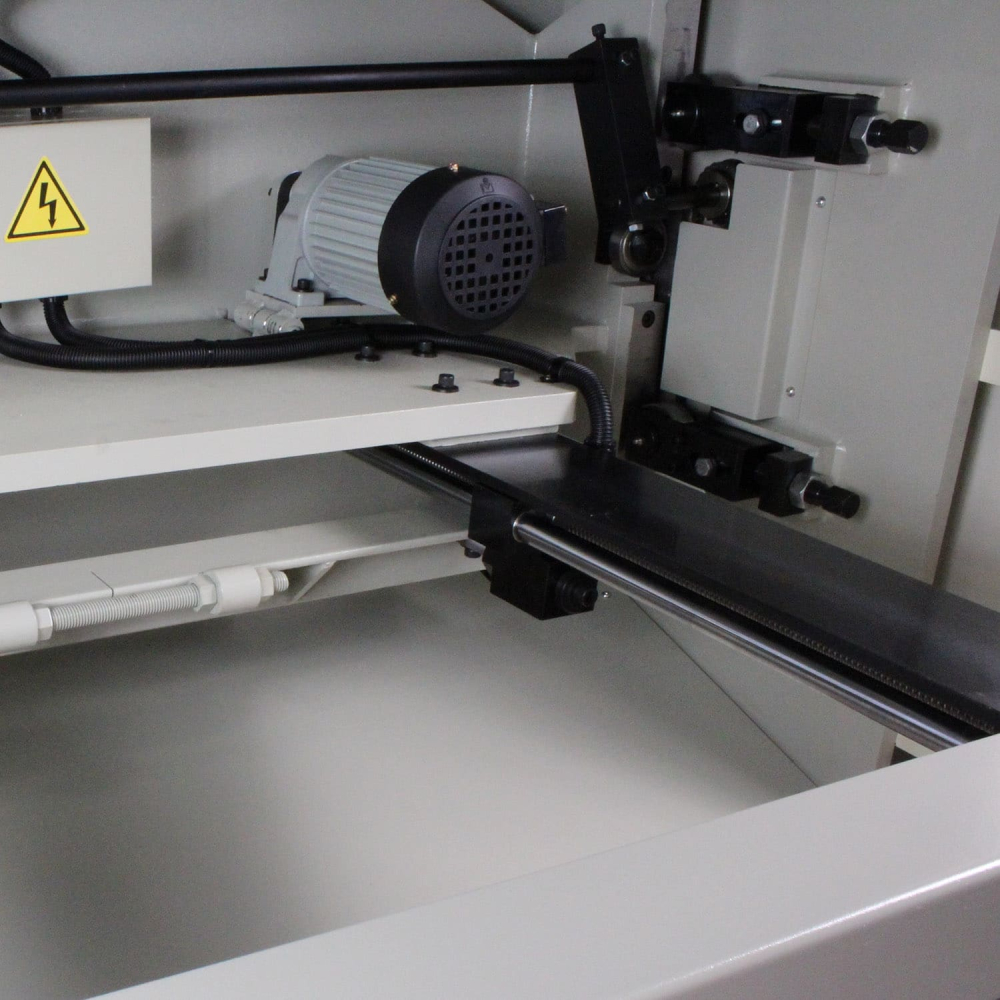

Back Gauge Length 17163
Shear Length 1321 mm
Motor 15 hp
Thickness (SS) 6,5 mm / 4,5 mm
Strokes Per Minute 16 24
Front Gauge Length 1000 mm
Blade Angle 1/2° 2° Adjustable
Power 400V / 3-Phase
Shipping Weight 2600 kgs.
Shipping Dimensions (Inches) 2311 x 1372 x 1651 mm
