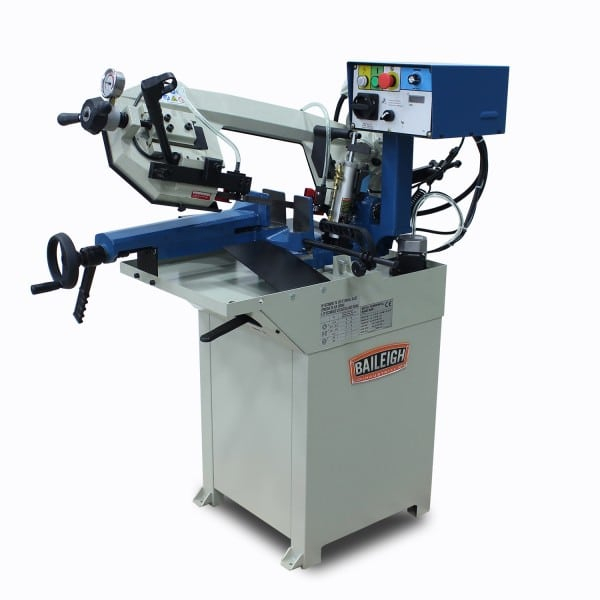

Baileigh BS-210M Bandsaw

Stock Code: BS-210M
MPN: BS-210M

Descriptions

You can control the descent of the BS-210M in 2 ways: manually (with a trigger switch) or with a hydraulic descent feature usually seen only on more expensive models.

With a good mix of features at an economical price, this saw is ideal for small-to-medium machine shops or even garage or home shops. 1.5 hp motor requires only 240 volts to run, so you can use it anywhere.

177mm round maximum capacity at 90°.

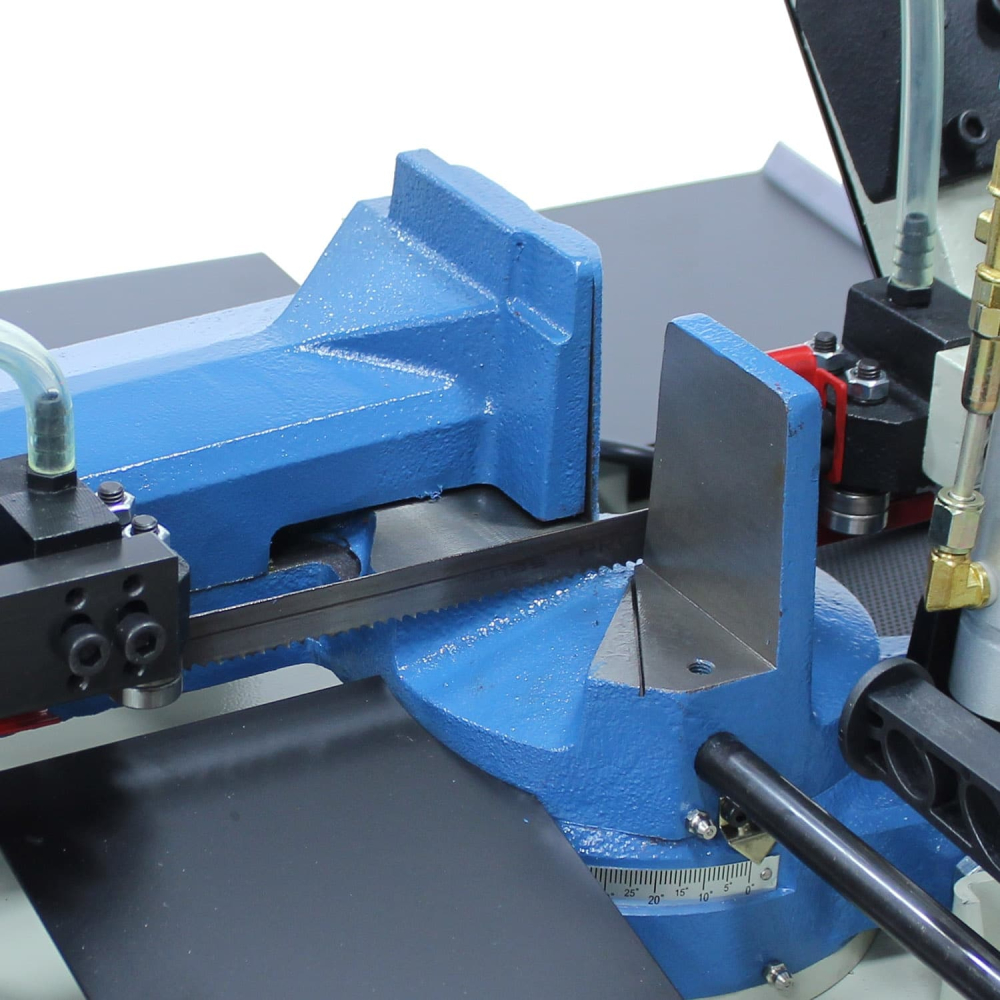

Swivel head miters up to 60° and doesn't compromise the holding power of the vise.

Cast iron saw head and bow reduce vibrations and help to produce clean, accurate cuts. Accepts standard blades.

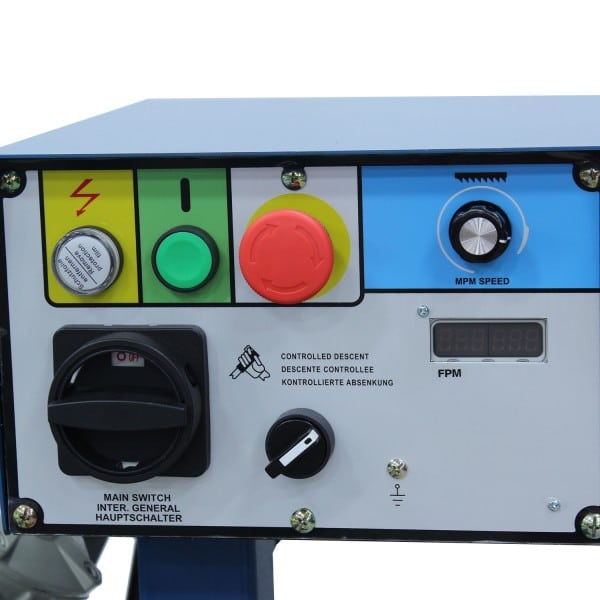

You can adjust the infinitely variable blade speed from 66 to 280fpm, controlled by an inverter, to produce quality cuts and prolong blade life.

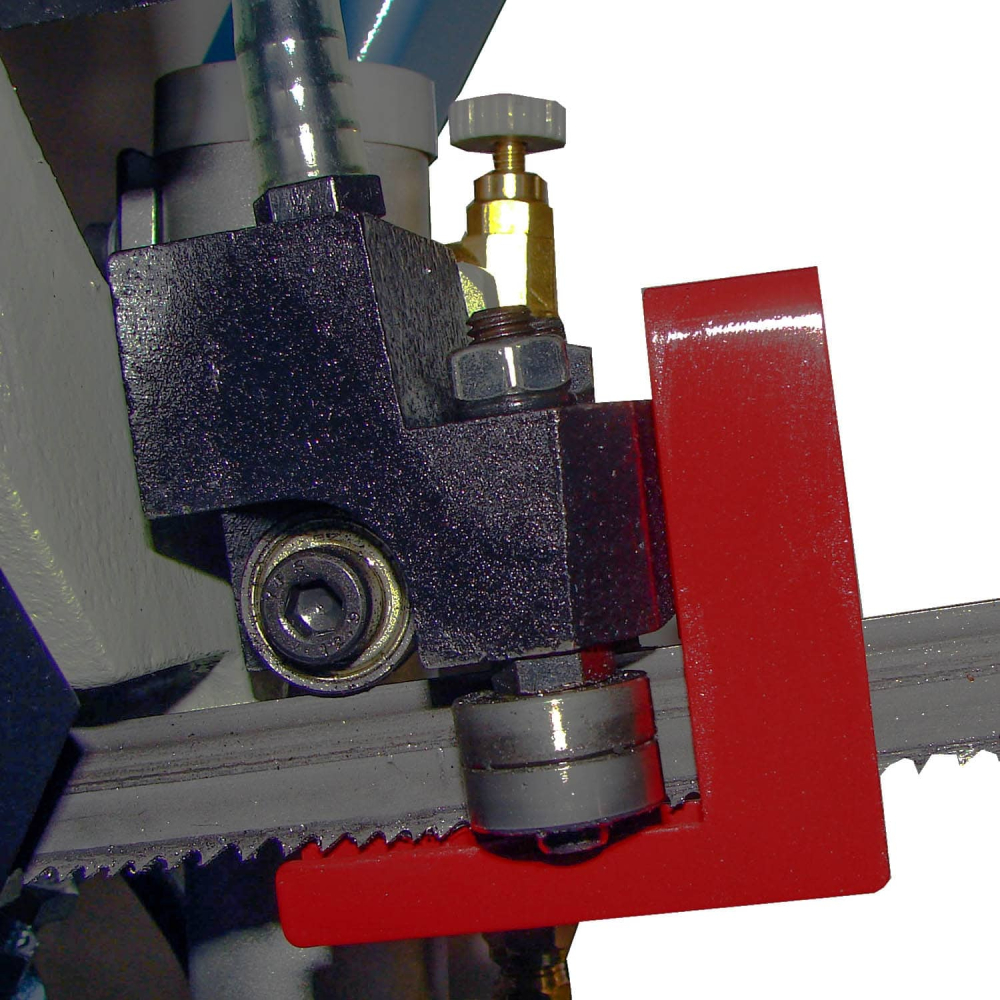

Adjustable blade guides, attached to sealed ball bearings, get as close to the material as possible to keep alignment straight and prolong blade life.

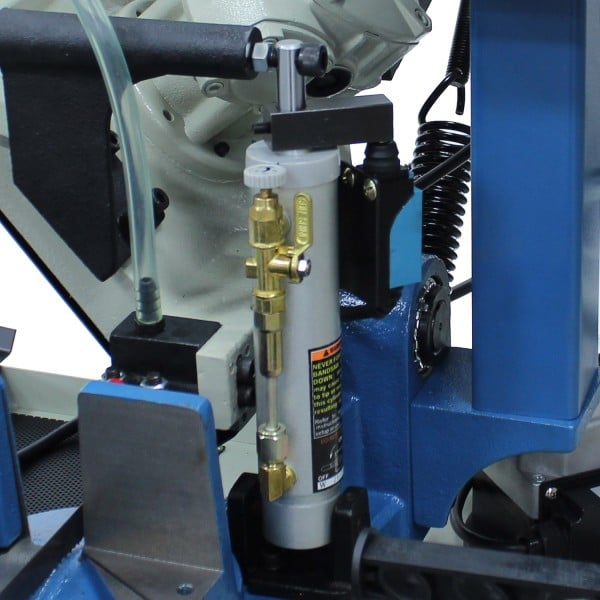

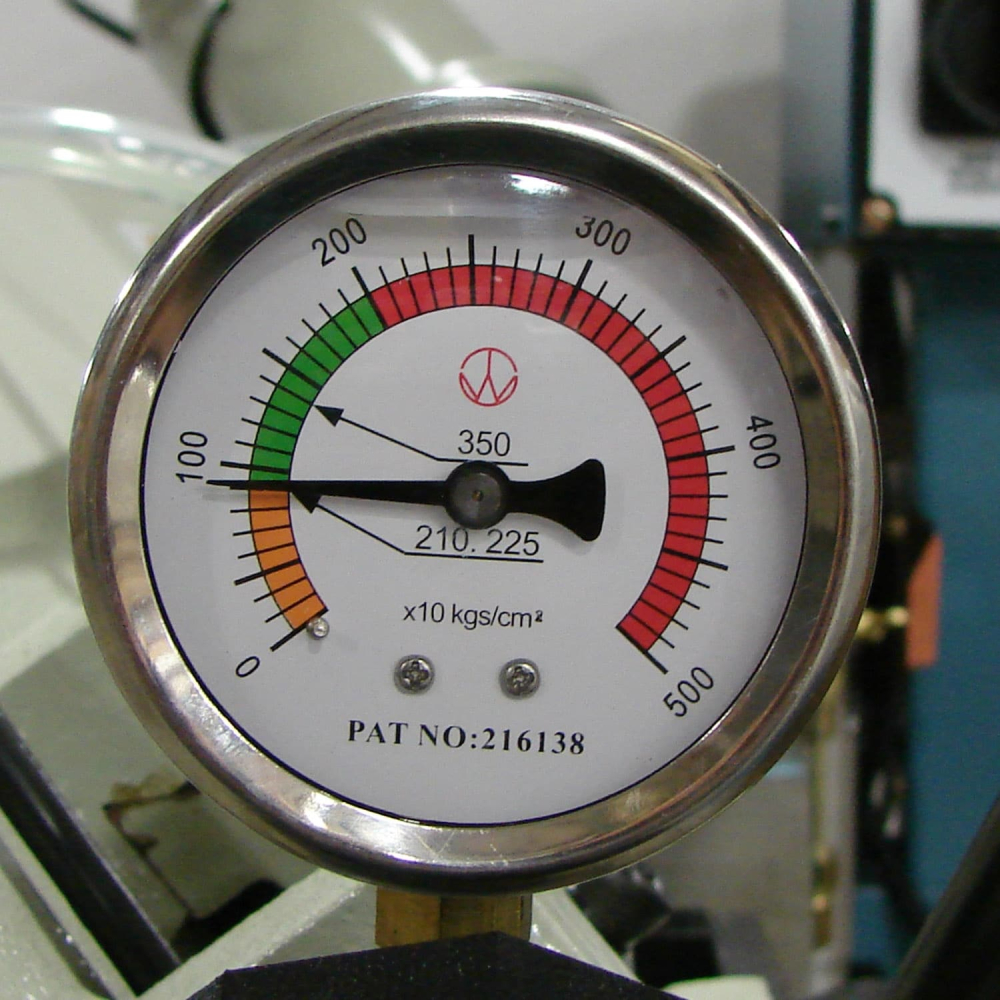

Control the hydraulic descent pressure and choose the right speed to make a perfect cut for a given application.

No need to monitor the machine! You can walk away; the blade will automatically stop once it's done cutting the metal.

Fully-welded steel plate frame stabilises the machine and gives it the structural strength to cut at maximum capacity without straining. 1-year (12 month) warranty.

177mm round capacity
0° – 60° mitre
Hydraulic descent

Specifications

Item Number BS-210M
Country of Manufacture Taiwan
Return Manual
Miter Adjustment Swivel Head
Miter Angle 1 60°
Motor High Torque .75Kw (AC)
Capacity Rectangle 90° 210 mm x 170 mm
Capacity Round 90°/ 45° / 60° 177 mm x 120 mm x 69 mm
Capacity Square 90°/ 45° / 60° 177 x 177 mm / 110 x 110 mm / 60 x 60 mm
Table Height 889 mm
Blade Guide Carbide x Roller
Blade Size (H x W x L) 19 x 1 x 2110 mm
Blade Speed 20 – 85 mpm
Descent Control Hydraulic
Drive Gear
Power 220V, 50Hz, 1-Phase
Shipping Weight 202 kgs.
Shipping Dimensions (Inches) 1524 x 1118 x 1219 mm
