GCE Prostage M/S 0-4B Inert Gas - Bottom Entry

Stock Code: WGRPS0762146
MPN: PS0762146

Descriptions

DISCLAIMER-

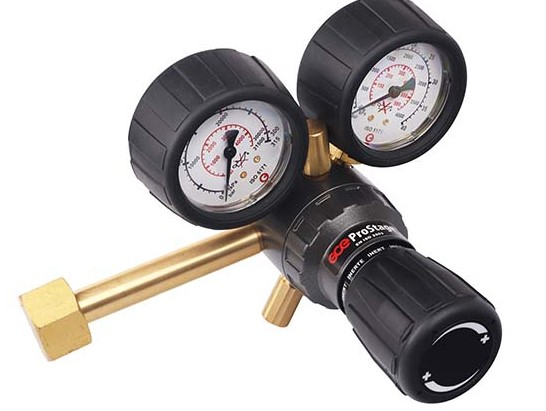

Image for illustration purposes only. Please see attached specification sheet.

ProStage® regulators designed to provide accurate, fluctuation free delivery for precision applications such as shielding gas arc welding, CNC oxy-fuel cutting or laboratory use use of technical gases.

The first stage reduces the inlet pressure by over 90% and the large second stage diaphragm ensures accurate delivery pressure with keeping of enough flow for medium gas consumption applications.

ProStage® regulators are precision built to latest EN ISO 2503 and EN ISO 7291 standards to provide maximum accuracy and safety. These regulators have the additional feature of being able to pipe away gases from the relief valve port, and comply with the stringent requirements of EN ISO 7291 even for strict manifold application.

Descr: 4 Bar Inert Multistage Regulator, Bottom Entry
Model: PROSTAGE M/S Inert 4 bar
Gas Service: Inert
Gas Pressure: 4 bar
Inlet & Outlet: 5/8" BSP inlet 3/8" BSP outlet RH
Inlet position: Bottom

Features:

Two-stage regulation for constant outlet pressure, flow and stability

• Optimum safety through pre-set first stage pressure reduction

• High-performance regulator following specific needs of technical gas applications

• Highly accurate via sensitive adjustment of second stage outlet.

• Robust rubber gauge protection preventing damages and impurities

• Compact, durable construction saving cost

• Safety protected with integrated pressure relief valve for overpressure protection

• Easy handling, ergonomic

• Design according to ISO 5171& ISO 2503

• Excellent pressure/flow characteristics.

• Up to 300 bar cylinder pressure
